J25 J30
J33 J36
J26 J29
J35 J39
J27
J37
1
1
D5 D12
1 8765432
PB1 PB2
1
1
1
1
Xilinx Kintex
Ulstrascale KU115
FPGA
LCD display and touch
screen
FMC-HPC
Expansion board
Component height in the
shaded area is 6mm
maximum, enabling fitting
of wider FMC boards.

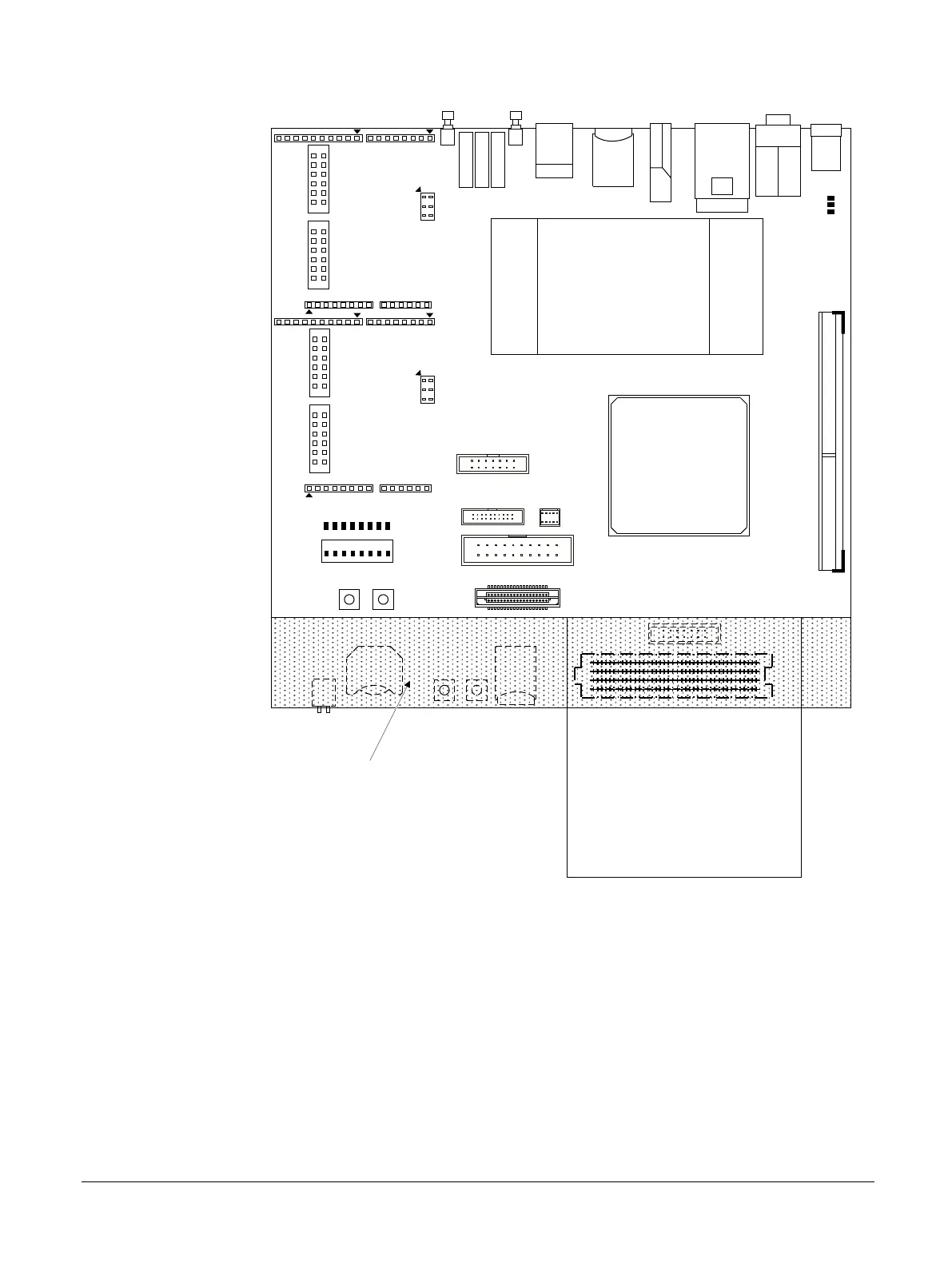

Figure 2-23 FMC-HPC board fitted to the MPS3 board FMC-HPC expansion connector
The figure shows a single‑width FMC board, 69mm × 76.5mm, fitted. The maximum component height
in the shaded area in the figures is 6mm to enable fitting of wider FMC boards.
Configuration of Arm FMC expansion boards
The MPS3 board provides a custom 14‑pin connector to enable configuration of Arm FMC boards using
I
2
C, SPI, and reset signals. The configuration process is similar to the configuration process used on the
Arm Versatile Express boards that use the signals on the HDRY headers.
Arm FMC expansion boards provide a daughterboard EEPROM and a Daughterboard Configuration
Controller (DCC). The DCC and the MCC on the MPS3 board configure the Arm FMC expansion board
using the configuration information in the daughterboard EEPROM.
2 Hardware description
2.17 FMC-HPC interface
100765_0000_04_en Copyright © 2017–2020 Arm Limited or its affiliates. All rights
reserved.
2-48
Non-Confidential
