Armitage Shanks Avon 21 - Mixer Dimensions

4

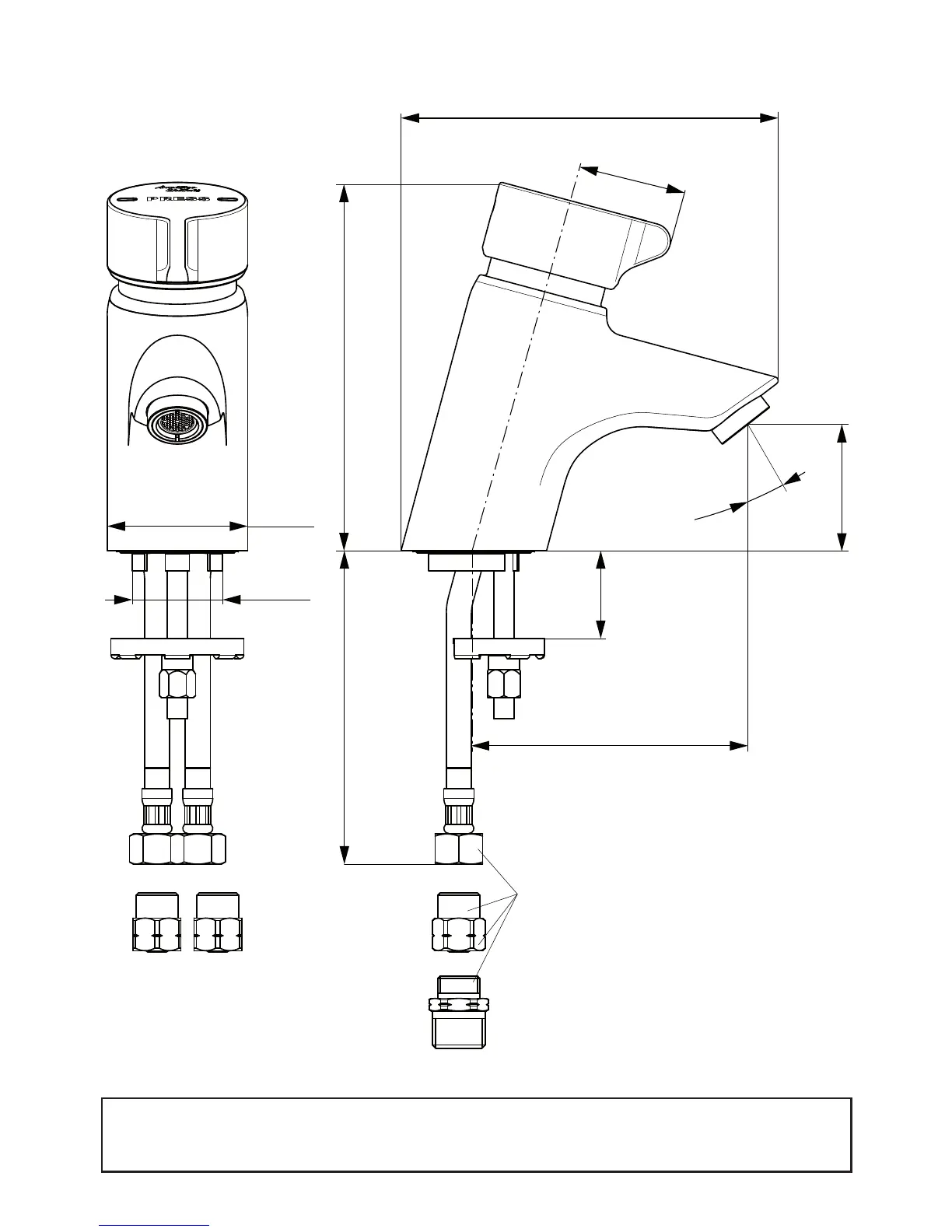

2 DIMENSIONS
38°
108
Ø56
150
44
50
270 147
max. 35
Ø35
+2
- 1
G1/2“
G3/8“
Note for installer: t the most suitable colour of index pin into the handle of
the basin mixer. Blue for cold water & either red or yellow for warm water.
See sect.1
