Armstrong FLO-RITE-TEMP 415 - Page 17

17

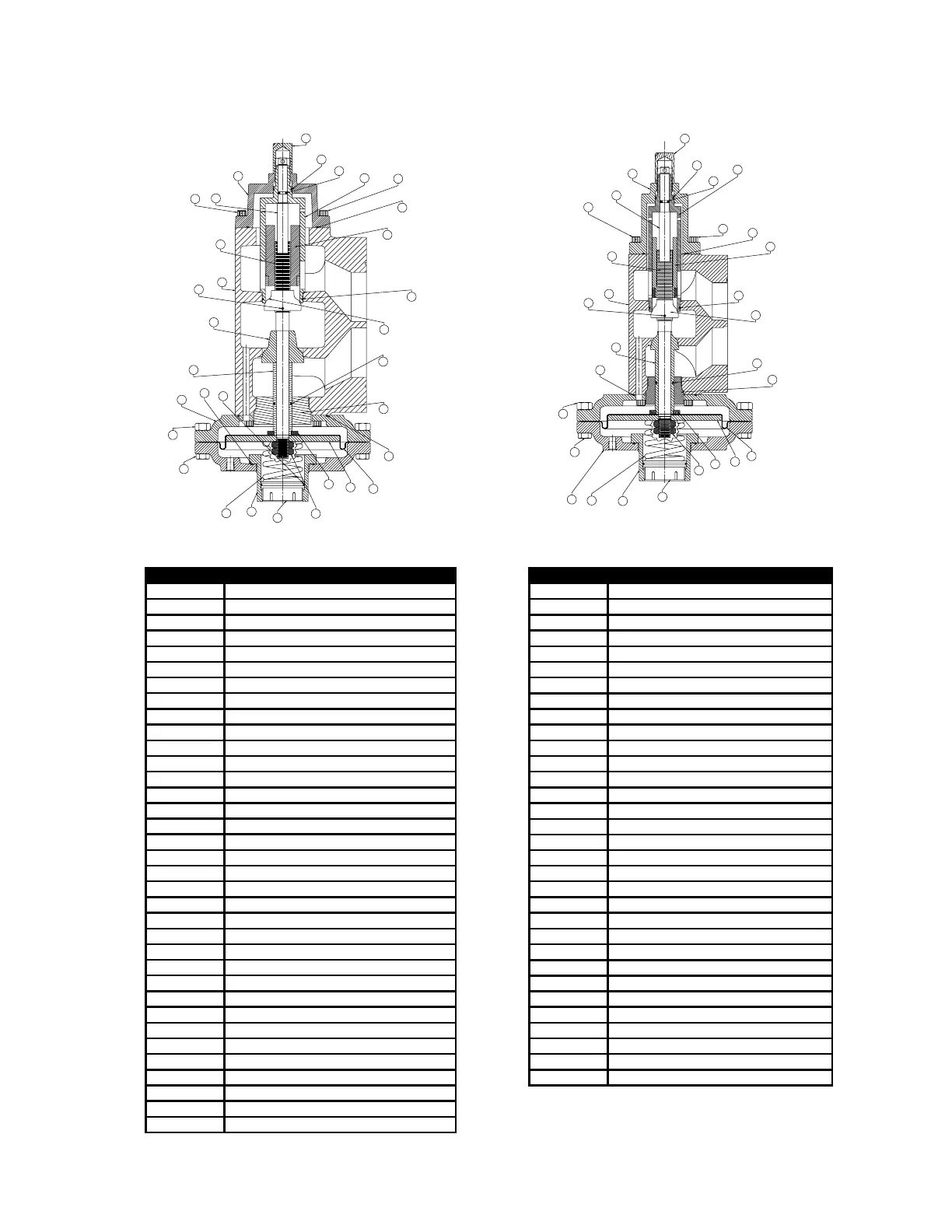

8120 Control Valve
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
2
3
5
6
7
8
10
33
9
11
12
13
32 14
15
665 Control Valve
16
17
18
19
20
21
22
15
14
32
13
12
11
24
25
26
28
29
30
31
1
2
3
4
5
6
8
9
23
Number Description
1 Spring Adjustment
2 Spring Housing
3Spring
4 Lower Diaphragm Cover
5 Diaphragm Bolt (12)
6 Diaphragm Nut (12)
7 Upper Diaphragm Cover
8 O-Ring 2-155
9 Lower Valve
10 O-Ring 2-147
11 Set Screw X2
12 Body
13 Stem
14 HFT Adjuster
15 Top Cap
16 Bonnet
17 O-Ring 2-121
18 O-Ring 2-111
19 Left Adjuster
20 Socket Cap Screw X13
21 O-Ring 2-157
22 Restrictor Assembly
23 O-Ring 2-144
24 Upper Valve Low Temperature
24 Upper Valve High Temperature
25 O-Ring 2-214
26 Stem Guide
27 O-Ring 2-162
28 Diaphragm
29 Diaphragm Supply Disc
30 Diaphragm Disc
31 Jam Nut (2)
32 Socket Cap Screw X1
33 Lower Valve Spacer
Listing of Parts
Number Description
1 Spring Adjustment
2 Spring Housing
3Spring
4 Lower Diaphragm Cover
5 Diaphragm Bolt (12)
6 Diaphragm Nut (12)
7 Upper Diaphragm Cover
8 O-Ring 2-155 X2
9 Lower Valve
11 Set Screw X2
12 Body
13 Stem
14 HFT Adjuster
15 Top Cap
16 Bonnet
17 O-Ring 2-121
18 O-Ring 2-111
19 Left Adjuster
20 Socket Cap Screw X11
21 O-Ring 2-147 X2
22 Restrictor Assembly
23 O-Ring 2-134
24 Upper Valve Low Temperature
24 Upper Valve High Temperature
25 O-Ring 2-214
26 Stem Guide
28 Diaphragm
29 Diaphragm Supply Disc
30 Diaphragm Disc
31 Jam Nut (2)
32 Socket Cap Screw X1
Listing of Parts
