Armstrong FLO-RITE-TEMP 415 - Page 18

18
Number Description
1 Spring Adjustment
2 Spring Housing
3Spring
4 Lower Diaphragm Cover
5 Diaphragm Bolt (12)
6 Diaphragm Nut (12)
7 Upper Diaphragm Cover
8 O-Ring 2-153
9 Lower Valve
10 Lower Valve Disc
11 Retainer Nut
12 Body
13 Stem
14 HFT Adjuster
15 Top Cap
16 Bonnet
17 O-Ring 2-018
18 O-Ring 2-012
19 Left Adjuster
20 Socket Cap Screw X7
21 O-Ring 2-138
22 Restrictor Assembly
23 O-Ring 2-025
24 Upper Valve Assembly
25 O-Ring 2-210
26 Retainer
27 O-Ring 2-131
28 Diaphragm
29 Diaphragm Supply Disc
30 Diaphragm Disc
31 Jam Nut (2)
32 O-Ring 2-135
33 Socket Cap Screw X1
Listing of Parts

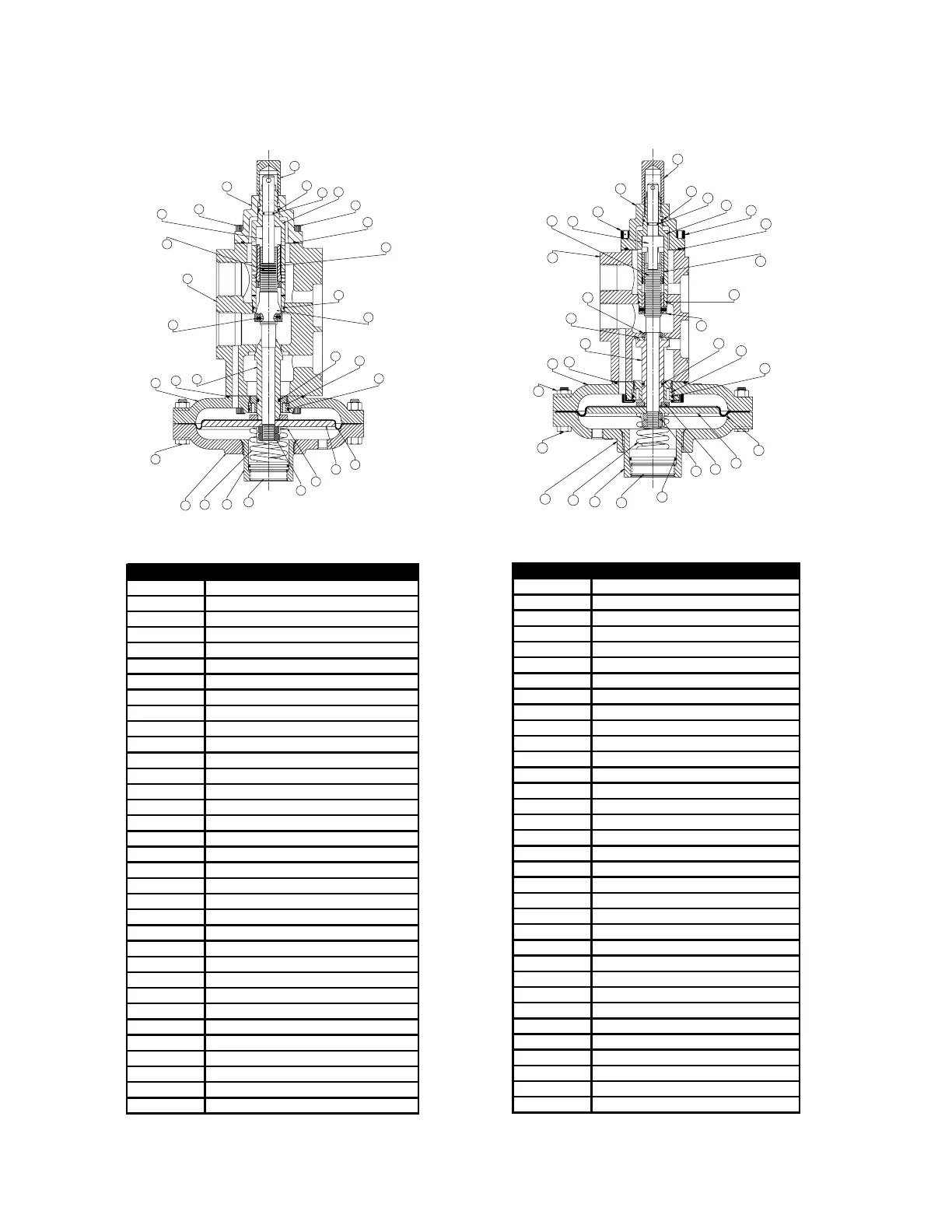

535 Control Valve
415 Control Valve
31
30
29
28
1
2
3
4
5
7
8
9
25
24
23
22
11
12
13
14
32
15
16
17
18
19
20
21
26
27
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
15
33
14
13
12
11
10
9
8
7
Number Description
1 Spring Adjustment
2 Spring Housing
3Spring
4 Lower Diaphragm Cover
5 Diaphragm Bolt (12)
6 Diaphragm Nut (12)
7 Upper Diaphragm Cover
8 O-Ring 2-155
9 Lower Valve Low Temperature
9 Lower Valve High Temperature
11 Set Screw X2
12 Body
13 Stem
14 HFT Adjuster
15 Top Cap
16 Bonnet
17 O-Ring 2-119
18 O-Ring 2-111
19 Left Adjuster
20 Socket Cap Screw X11
21 O-Ring 2-147
22 Restrictor Assembly
23 O-Ring 2-128
24 Upper Valve Low Temperature
24 Upper Valve High Temperature
25 O-Ring 2-214
26 Retainer
27 O-Ring 2-135 X2
28 Diaphragm
29 Diaphragm Supply Disc
30 Diaphragm Disc
31 Jam Nut (2)
32 Socket Cap Screw X1
Listing of Parts
