DWEX DIGITAL LOUD-SPEAKING EXPLOSION PROOF CALL STATION
User Manual
page 26/40 armtel.com
© Armtel info@armtel.com

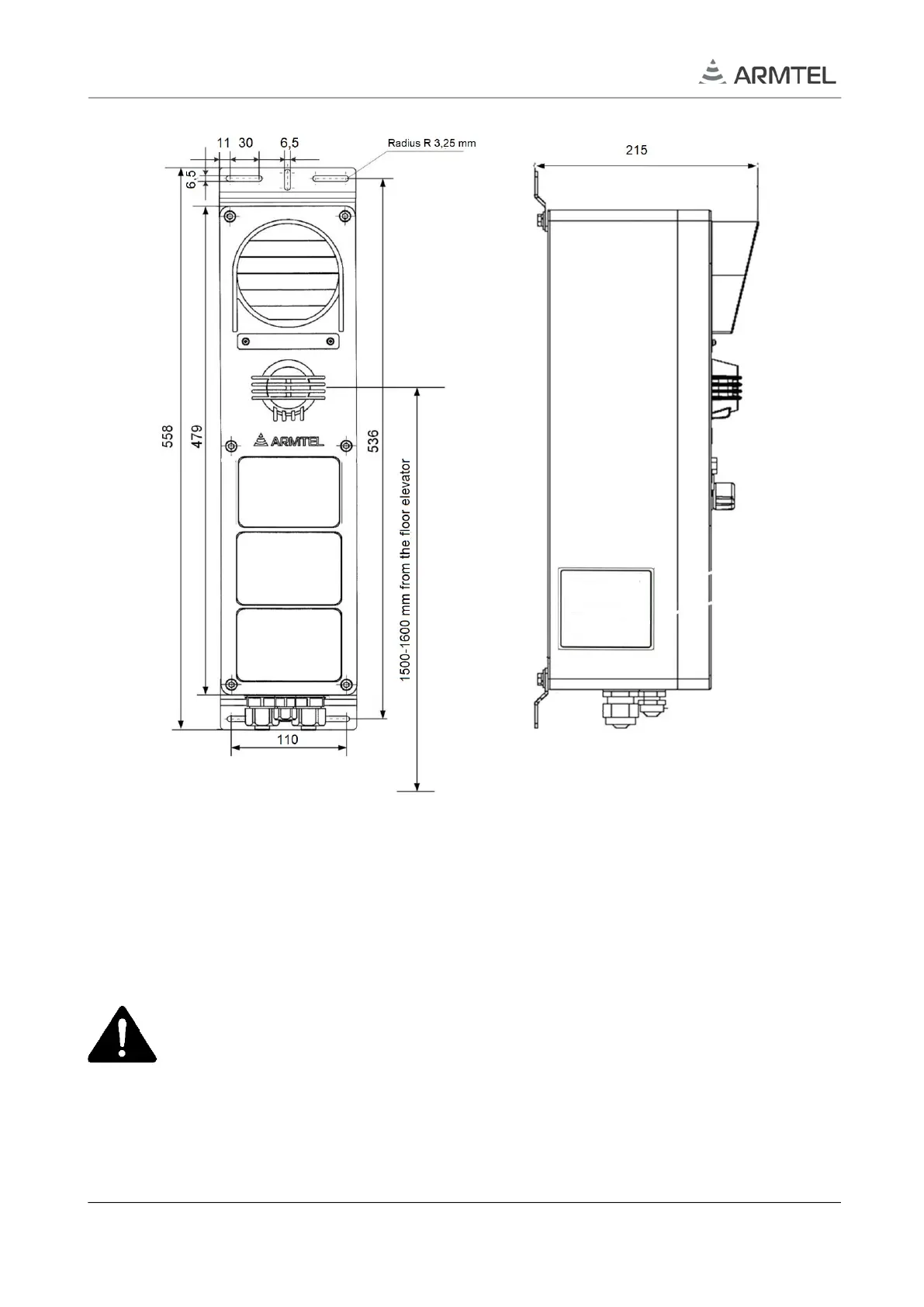

Figure 6 – Installation of DWEx unit
Installation procedure for the unit:
1. Fix the supplied brackets to the back side of the enclosure.
2. Fix the DWEx unit at the workplace.
3. After installation, remove DWEx cover by unscrewing six screws.
ATTENTION! AS KIB BOARD INSTALLED ON THE COVER IS WIRED WITH
THE ENCLOSURE, FURTHER DESCRIBED WORKS SHOULD BE CARRIED OUT SO
THAT ENSURE INTEGRAL AND INTACT CONNECTIONS. DISCONNECTION OF
THE SOCKET LOCATED ON THE COVER IS ALLOWED!
4. Connect the cable lines to DWEx unit according to 2.5.3.
