REV 3 12/04/2014
C-2242
C-2242
ARNOTT COIL SPRING CONVERSION KIT
FOR
1999-2006
MERCEDES-BENZ S-CLASS (W220 CHASSIS)
ELECTRONIC BYPASS MODULE INSTALLATION

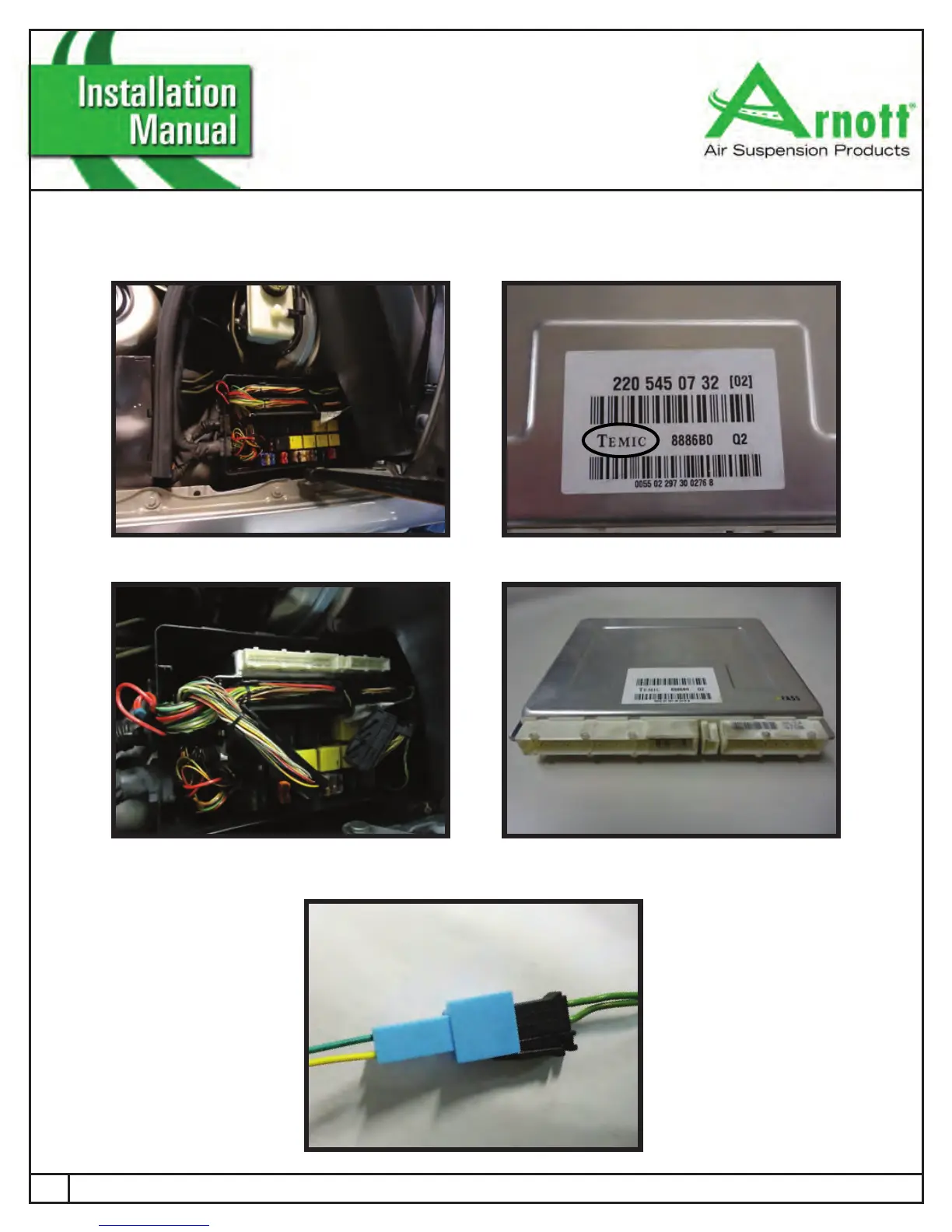

1. LOCATE THE N51 CONTROL MODULE (LOCATED IN THE LEFT SIDE FUSE BOX) VERIFY THAT IT READS
“TEMIC”. (FIGURE 1A)
FIGURE 1A
3. CONNECT LIGHT BLUE CONNECTOR FROM ELECTRONIC BYPASS MODULE TO THE WIRE HARNESS SIDE OF
THE VEHICLE N-51 CAN-BUS 2 PIN CONNECTOR. (FIGURE 1C)
2. AFTER VERIFYING COMPUTER, DISCONNECT ALL THREE (3) MULTI-PIN CONNECTORS PERMANENTLY. (FIGURE 1B)
FIGURE 1C
FIGURE 1B
