Arnott SK-2806 - Compressing Spring and Removing Top Nut; Removing Spring, Isolator, and Mount Plates

6
REV 3 09/23/2016
SK-2806
SK-2806
ARNOTT FRONT SHOCK KIT
FOR
2007-2014
GM FULL SIZE SUVs

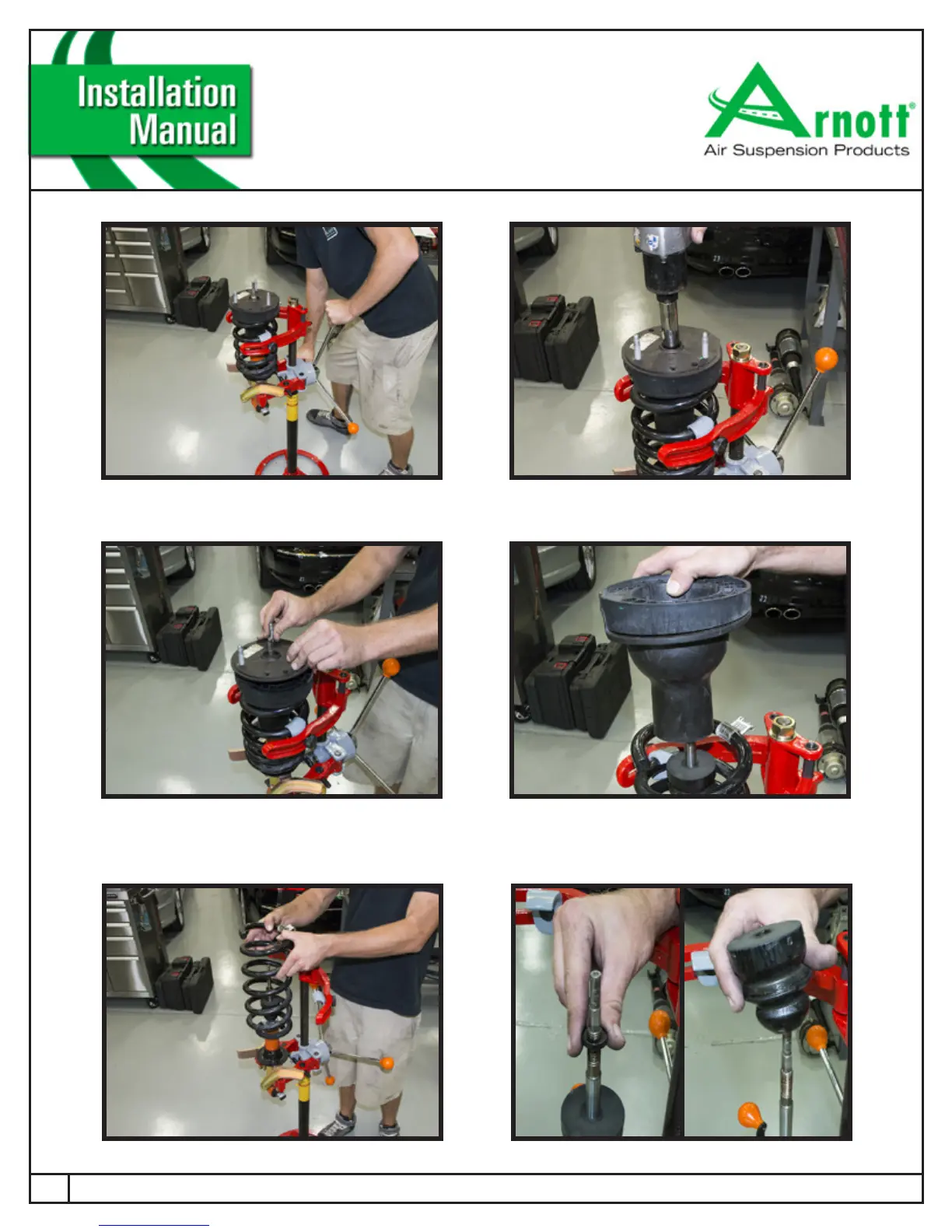

2. COMPRESS THE COIL SPRING AND REMOVE THE TOP SHOCK ROD NUT. (FIGURES 20-5, 20-6)
FIGURE 20-5 FIGURE 20-6
3. REMOVE TOP MOUNT PLATE, OFFSET PLATE AND RUBBER ISOLATOR. (FIGURES 20-7, 20-8)
FIGURE 20-7 FIGURE 20-8
FIGURE 20-9 FIGURE 20-10
4. CAREFULLY RELEASE SPRING PRESSURE AND REMOVE COIL SPRING, SPACER WASHER AND BUMP STOP
(FIGURES 20-9, 20-10)
