Arnott SK-2806 - Disconnecting Electrical Connectors from Coil Strut; Removing Coil Strut Mounting Hardware

3
REV 3 09/23/2016
SK-2806
SK-2806
ARNOTT FRONT SHOCK KIT
FOR
2007-2014
GM FULL SIZE SUVs
FIGURE 10-3 FIGURE 10-4

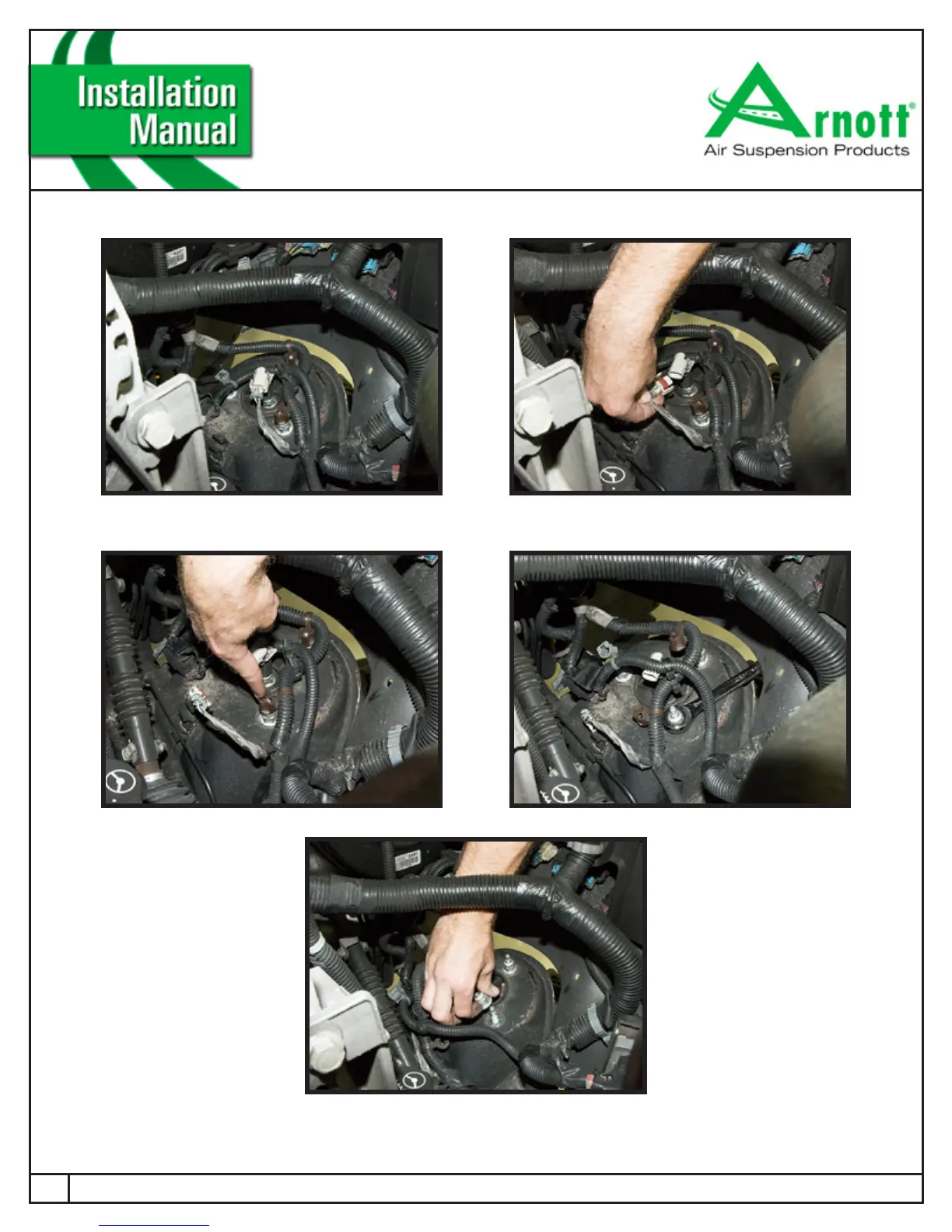

2. LIFT THE HOOD TO EXPOSE THE TOP OF THE COIL STRUT. LOCATE AND DISCONNECT THE ELECTRICAL
CONNECTOR. (FIGURES 10-3, 10-4)
3. REMOVE THE 3 WIRE CLIPS AND TOP MOUNTING NUTS. (FIGURES 10-5, 10-6, 10-7)
FIGURE 10-5 FIGURE 10-6
FIGURE 10-7
