ARO PD20 series - Air Motor Assembly Torque Requirements; Air Motor Lubrication; Sealants

Page 8 of 12 PX20X-XXX-XXX-BXXX (en)
PARTS LIST / PX20X-XXX-XXX-BXXX AIR MOTOR SECTION
NOTE: DO NOT OVERTIGHTEN FASTENERS.
LUBRICATION / SEALANTS
ASSEMBLY TORQUE REQUIREMENTS
 Apply Lubriplate FML-2 grease to all “O” rings, “U” cups and
mating parts.
 Apply Loctite 271 to threads.
A replacement Major Valve Service Assembly is available separately, which includes the following:
637374-2 for models PD20A-XXX-XXX-BXXX: 105 (4), 111, 128 (2), 132, 133 (3), 134 (4), 135, 136, 137,
138, 139, 140, 141, 166, 176 (2), 199, 200, 233, 240 (2), 241, 242, 243 and 244.
637374-3 for models PE20A-XXX-XXX-BXXX: 76, 105 (4), 111, 128 (2), 132, 133 (3), 134 (4), 135, 136, 137,
138, 139, 140, 141, 166, 176 (2), 199, 200, 233, 240 (2), 241, 242, 243 and 244.
637374-4 for models PD20S-XXX-XXX-BXXX: 105 (4), 111, 128 (2), 132, 133 (3), 134 (4), 135, 136, 137,
138, 139, 140, 141, 146, 147, 176 (2), 199, 200, 233, 240 (2), 241, 242, 243 and 244.
637374-5 for models PE20S-XXX-XXX-BXXX: 76, 105 (4), 111, 128 (2), 132, 133 (3), 134 (4), 135, 136, 137,
138, 139, 140, 141, 146, 147, 176 (2), 199, 200, 233, 240(2), 241, 242, 243 and 244.
(105) Screw, 40 - 50 in. Lbs (4.5 - 5.6 Nm).
(134) Screw, 40 - 50 in. Lbs (4.5 - 5.6 Nm).
(240) Screw, 40 - 50 in. Lbs (4.5 - 5.6 Nm).
 Apply anti-seize compound to threads and bolt and nut ange
heads which contact pump case when using stainless steel fasteners.
 Apply PTFE tape to threads.
200
135
133
138
 137
242 

134
128
136
111
43
139 
105  
PILOT VALVE
PILOT VALVE
MAJOR VALVE
201
127
174
121
118
173
101
103
 174
121
118
167
170
 173
171 
172
169
168
132
240 
128
199
141
140
241
176
166
233
243
244
Optional 94117 Muer

Substitute these “O“ rings for
(166) gasket on models PX20S-
XXX-XXX-B( ).
147
146
 76
(PE20A-XXX-XXX-BSXX)
(PE20S-XXX-XXX-BSXX)

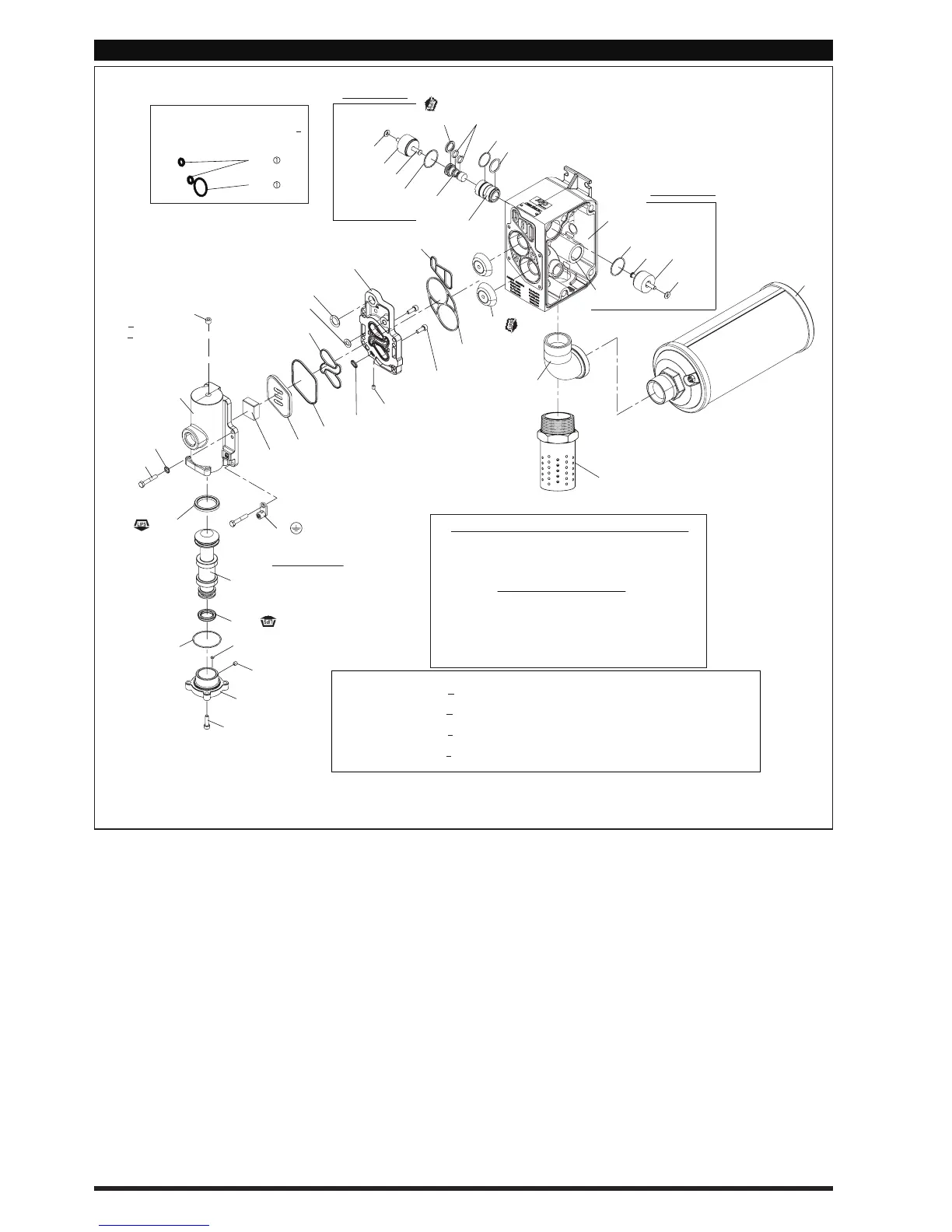

Figure 3
