AromaTech AromaPro BT - HVAC Connection

20
SET ENT
SUN
SAT
FRI
THU
WED
TUES
MON
02:00
-20-
1. Identify the targeted area you wish to scent.
2. Locate the Air Handling Unit (AHU) or ductwork serving the target area.
3. Identify and mark the Scent Point, the optimal location within the ductwork for
scent dispersion.
4. Find the ideal location for your AromaPro
®
BT, considering proximity to a power
supply. (Refer to Figure A)
5. Ensure the distance between the Scent Point and the diffuser is no more than 3
feet. The air tube should be free of dips, coils, or low points. Ensure the Scent Point
is always higher than the diffuser.
6. Locate or install a 110V or 220V AC power outlet near the diffuser installation site,
avoiding placement directly beneath the unit.
Before beginning to install your AromaPro
®
BT ensure the AHU does not use an open gas
flame.
AromaPro
®

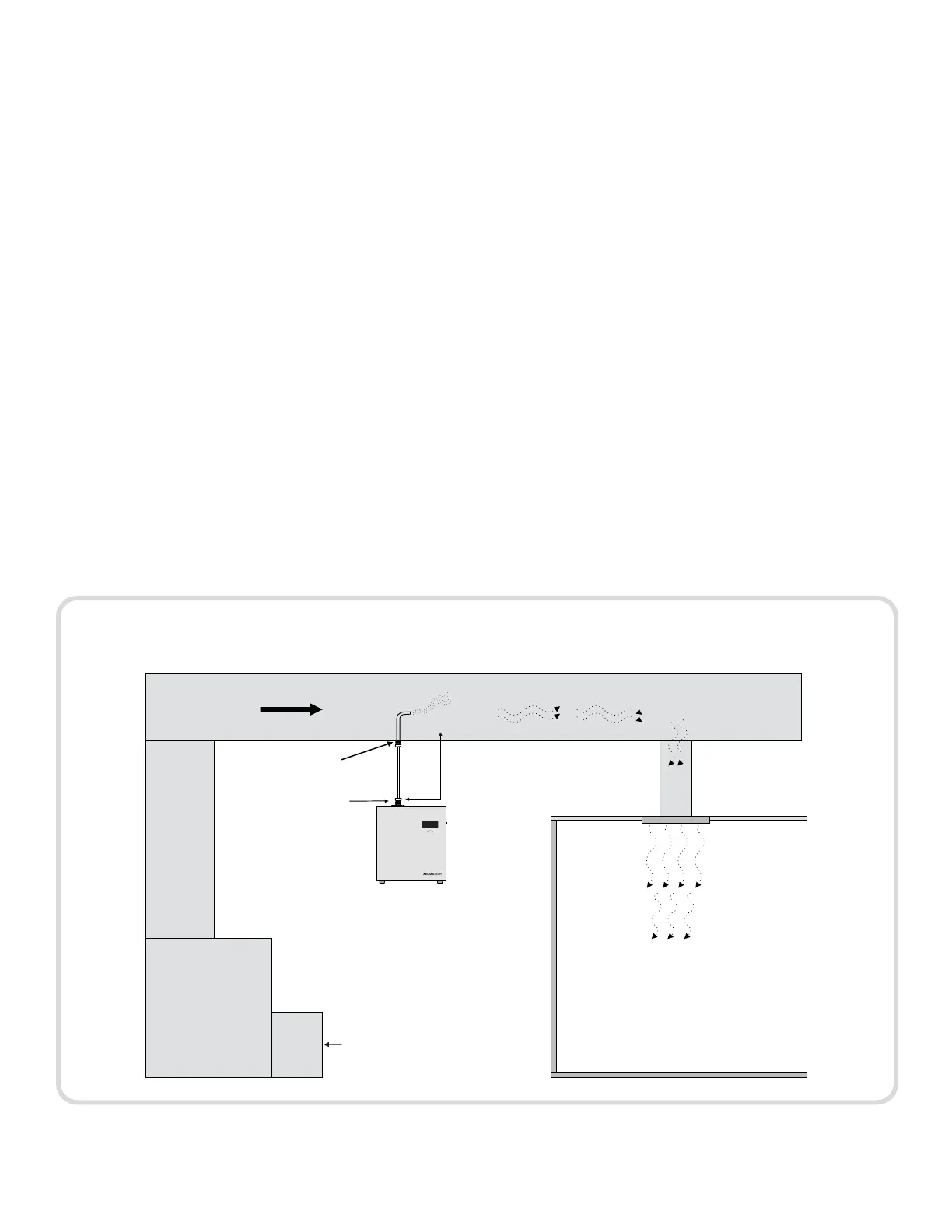

BT HVAC Connection Diagram (Fig A)
Air Flow Scented Air Flow
Ceiling
Targeted Scenting Area
Return Air Duct
(from rooms)
Air Handling Unit
(AHU)
Evaporator
Coil
Air Supply-
Duct to rooms
Scent Point
Drill hole in
HVAC Adaptor
Hose
Guide
Max length 3 ft.
Ideal 12” - 15”
Air tube must always be straight.
HVAC Checklist
WARNING: Do not drill through a coil, or before the filters.
HVAC Connection
