1. You will want to choose the AHU you want to connect to. If you have multiple
AHUs select the one that will cover the area you wish to be scented. Consult your
HVAC supplier if needed.
2. With a metal drill bit designed to drill through sheet metal, drill a hole the size of
the hose guide in the air duct directly after the blower. Make sure you are tapping
into the supply side of your duct, not the return side.
3. IMPORTANT: Never install before the coils or filters as the filters will dilute the
scent and you will not get the same result.
4. Once the hole is made, insert the hose guide. The hole on the end of the hose
guide should be pointing with the air flow not against it. This allows the scent to
travel in the same direction as the air flow.
5. Secure the hose guide by screwing it to the duct.
6. Screw in the supplied HVAC adaptor into the hose guide.
7. Unscrew the silencer part from the top of the AromaPro
®
BT, and screw in a
second HVAC adaptor in its place.
8. Either wall mount the AromaPro
®
BT to the duct, the wall or place on a shelf
directly under the Scent Point connection. It’s important to keep the AromaPro
®
BT
as close as possible to the Scent Point. MAX AIR TUBE LENGTH SHOULD BE
3 FEET.
9. Cut supplied air tube to length to go from the AromaPro
®
BT to the hose guide.
The distance between the AromaPro
®
BT and hose guide should be as short as
possible. MAX 3 FEET. Do not leave any slack. Coiling or excess of the air tube will
create air pockets and buildup of scent inside the tube.
Connecting the AromaPro
®
BT to HVAC

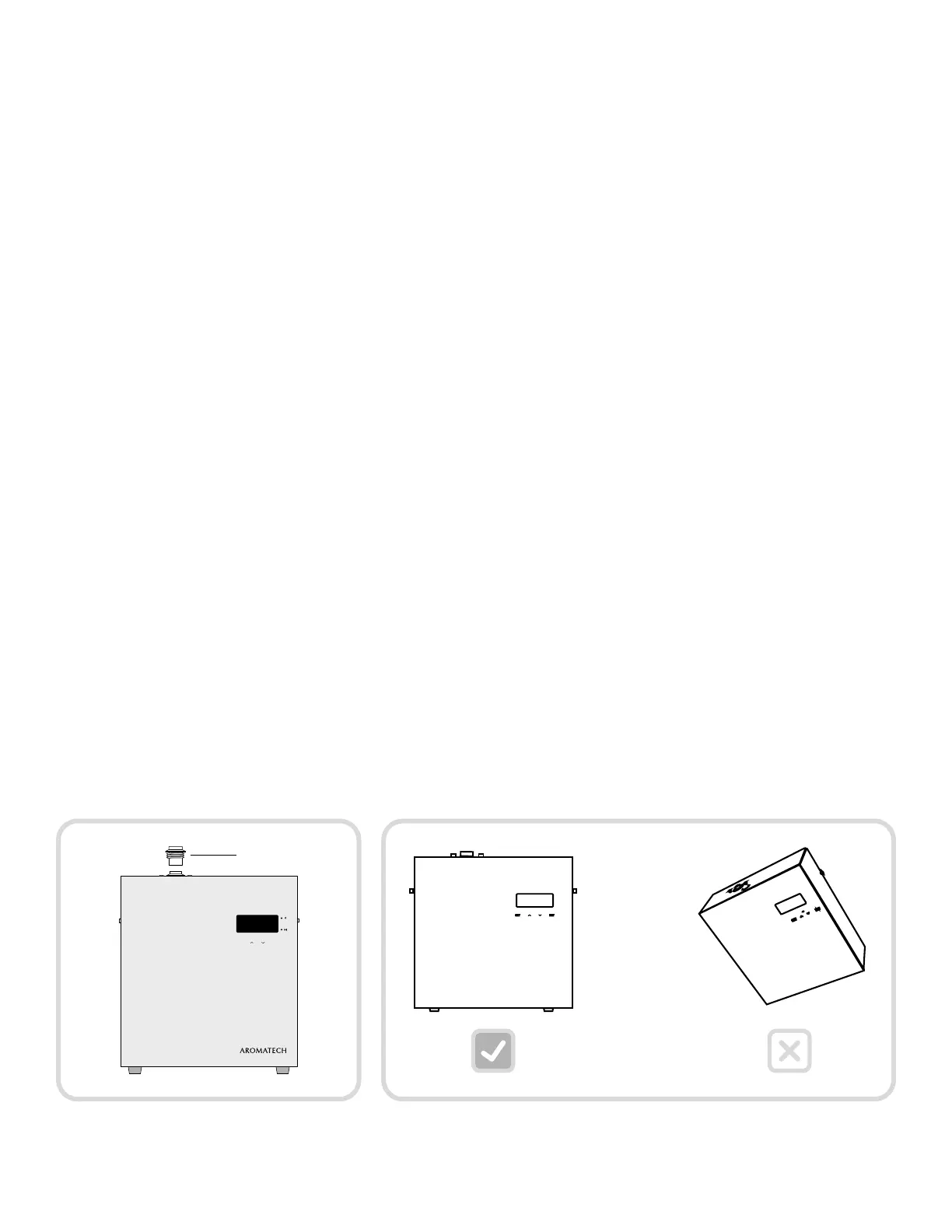

WARNING: Always make sure the AromaPro
®
BT is mounted upright.
