2. Arrangement of the Keyboard
In general, the keyboard will perform the
function of the black words 1st. But in the 2nd
mode, it will perform the function of the words
in blue.

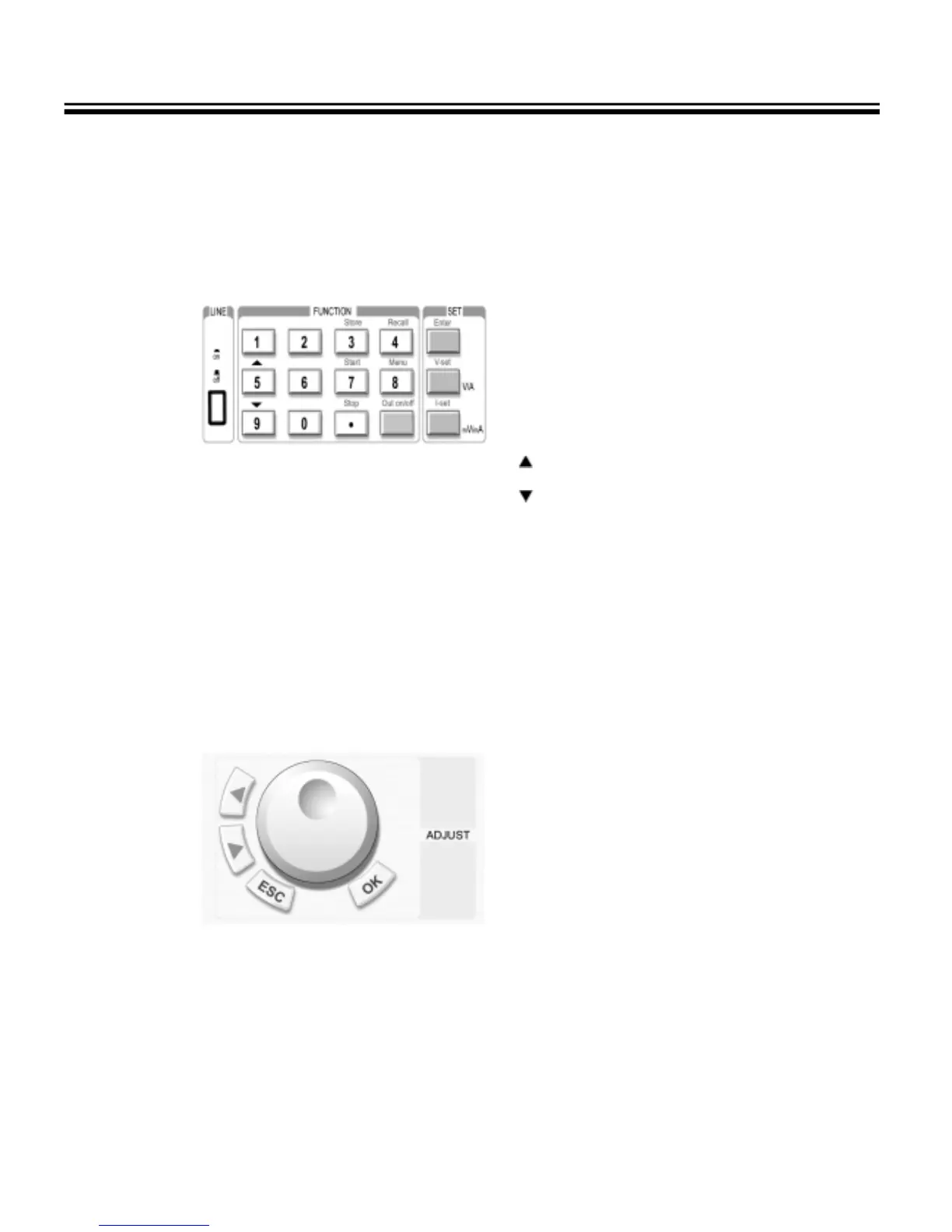

Fig. 1- 4 Keyboard of 3600 Series DC power supply
0~9: The number keys
Store: Storethe current setting value
Recall: Recall the saved setting value
Menu: The menu operation
Out on/off: Enable/disable the output
Enter: The confirmation key
V-set: Setting voltage value
I-set: Setting current value
: The up moving key
: The down moving key
V/A: Set the voltage as V
Set the current as A
mV/mA: Set the voltage as mV
Set the current as mA
3. Rotary knob and function keys
Fig. 1- 5 Rotary knob and function keys
Left Operation: The left moving key
Right Operation: The right moving key
ESC: Escape key
OK: Confirmation key
Rotary knob: The rotary dial
