FAB
I
ntelligent
C
ontrollerr
Descriptions:
1.Every time the trigger input TRG changes from status 0 to Status 1, the status
of Output Q will change accordingly (The status of Q will be reversed).
2. Reset Q to Status 0 via Input R.
3. This function can be applied to the lighting of corridors and staircases, and
the start/ stop of a motor with a single push-button, etc.

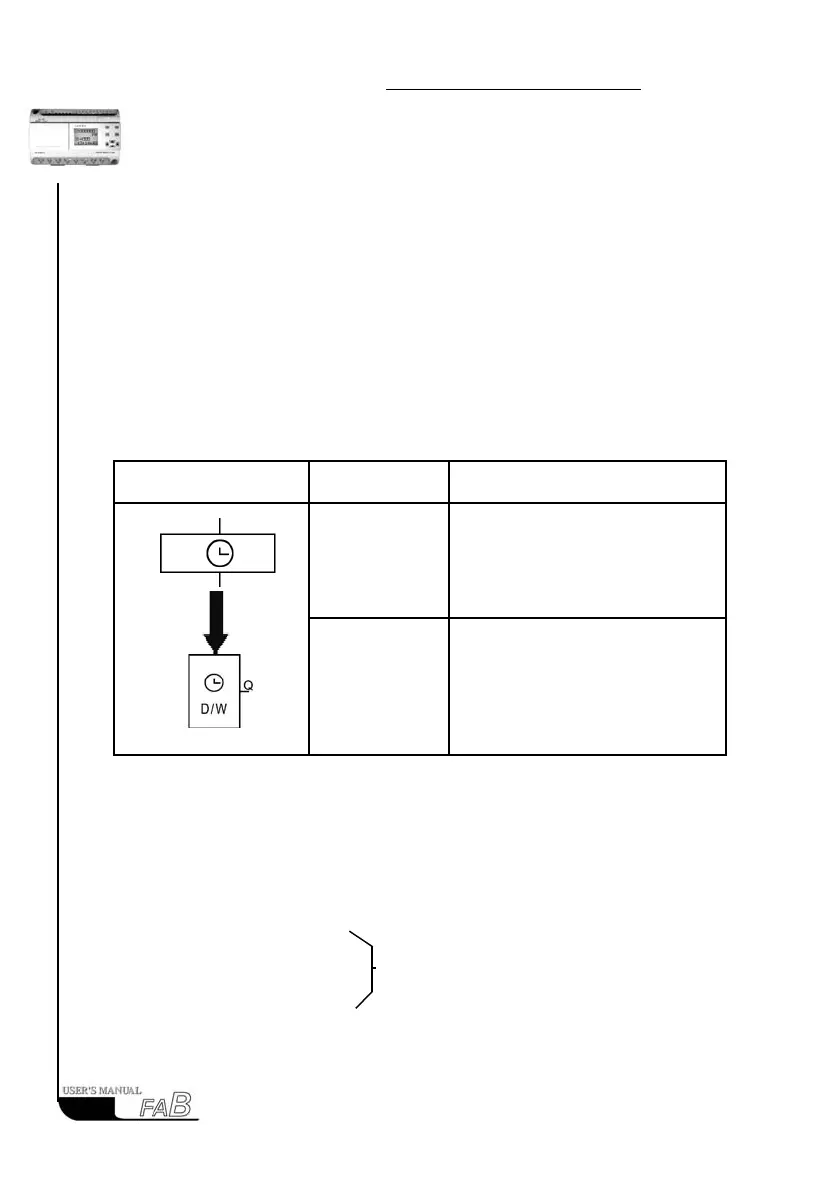

3.2.4 CW
FAB has clock switches for 127 time intervals.
Line diagram/symbol in
FAB
Pin Description
Parameter D/W
Options of day system or week system
(D is for the day system and W is for
the week system).
Output Q
If one of the parameterized time inter-
vals is ON, the output is ON.
Notes regarding the time “CW”:
1. If the day system is selected for the timing of a time switch
A. For the same output channel, up to 127 time switches can be set, and these
switches must be put in order according to the time sequence, e.g.
On: May 1st, 2000 9:00
Off: May 2nd, 2000 18:00
On: Aug 2nd, 2000 10:00
Off: Aug. 2nd, 2000 19:00
26
Q1
