Array electronic AF-10MR-A User Manual

FAB
I
ntelligent
C
ontrollerr

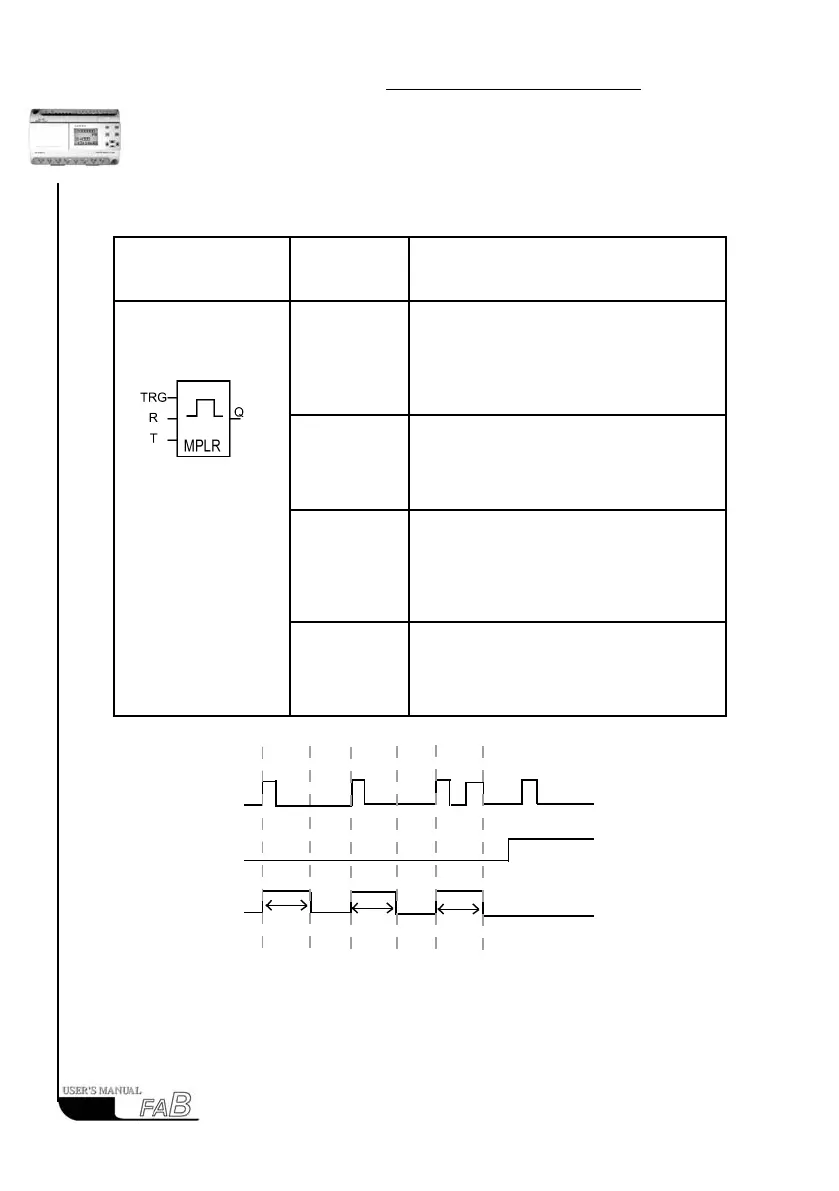

3.2.10 MPLR (Single-pulse time relay)
Line diagram/Symbol
in FAB
Input TRG
Trigger an input to activate the single-pulse
time relay. When the leading edge of TRG
comes, a pulse with the duration of T is out-
put.
Input R
Reset the single-pulse time relay. When R is
1, Output Q becomes 0.
Parameter T
The assignment range of the pulse dura-
tion setting is 0.01 ~ 99.99 (second, minute,
hour). The time accuracy can reach 0.5‰.
Output Q
Every time TRG changes from 0 to 1, Q out-
puts a pulse with the duration of T.
Time Sequence Frame:
TRG
Notes:
This function is applicable to the cases that the pulse duration needs to be in-
creased.
T
T
T
36
Pin
Description
