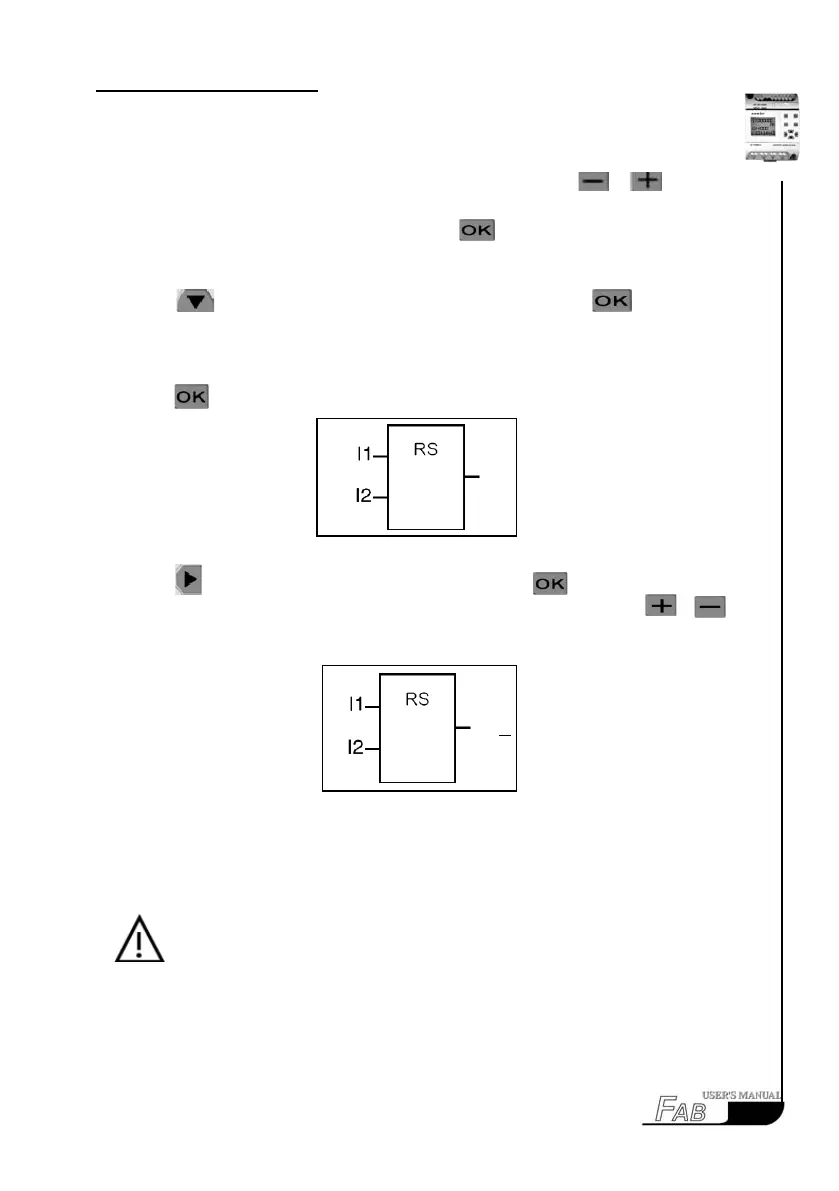

C
hapter
P
rogramming on
FAB
panel
Then the value of this parameter needs to be set by pressing or .
For example; if I1 is to be set, just press
key when I1 is displayed, as
shown in Fig. 4.31 (the variation range of I is I1-I6 or I1-IC).
Press
to move the cursor to position S and then press to set the S
link input.
Select I in the parameter list and set it to be I2 by the same method as setting I.
Press
once, and then the LCD panel will be as Fig. 4.32.
Fig. 4.32
Press to move the cursor to position Q and press to set the Q Pin out-
put. After selecting M in the parameter list and set it to be M01 with
again. The following will be displayed on the LCD panel:
Fig. 4.33
Now, all the three Pins of the RS relay function block have been set. Press ESC
to exit this block, and to continue the editing of other function blocks.
Note:
After your entering the edit function block frame, only after all the settings
for their Input/Output Pins have been done can you exist.
B01
Q
59
M01
B01
