49

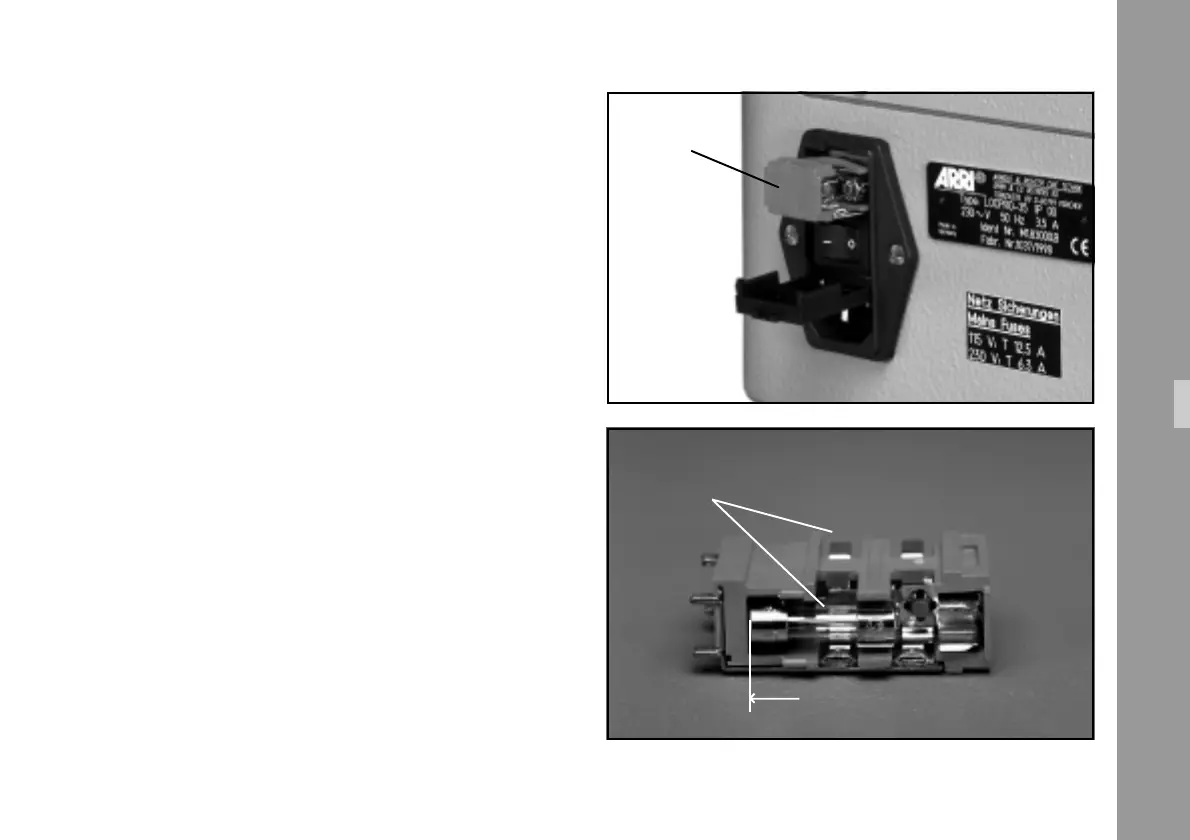

• Open down the hinged flap ➪ photo on the socket,
using a small screwdriver, and remove the fuse holder
➪ photo.
Fuses Primary Circuit (Mains)
• 2 fuses in main power socket
115 V ................................ Type 5x20, 2 x T 12.5 A
230 V .................................. Type 5x20, 2 x T 6.3 A
Note: When replacing 230 V fuses, make sure (glass
tube 5 x 20 mm EURO) to slide the fuses all the
way up to the front, as otherwise no electrical
contact is made ➪ photo.
Service and Maintenance
fuse set
fuse
