Installation Instructions
485855-001 Rev B Installation Instructions 3
The Broadband Telecommunications Drop Amplifier (BDA) is a two-way, 1 GHz amplifier
designed for customer premise amplification to compensate for long drops and excessive
splitting losses.
Single output (BDA-*1), two output (BDA-*2), and four output (BDA-*4) versions enable
internal or external splitting.
Additional features include:
■ Gallium Arsenide technology for improved distortion and noise performance
■ Built-in diplex filters for two way operation
■ Local or remote powering by a UL approved, current limited, 120 volt or 220 volt, ac
to dc power supply
■ Gain is consistent with typical house drop requirements
■ A weather seal and protective coating for indoor or outdoor applications
■ –6 kV surge resistance

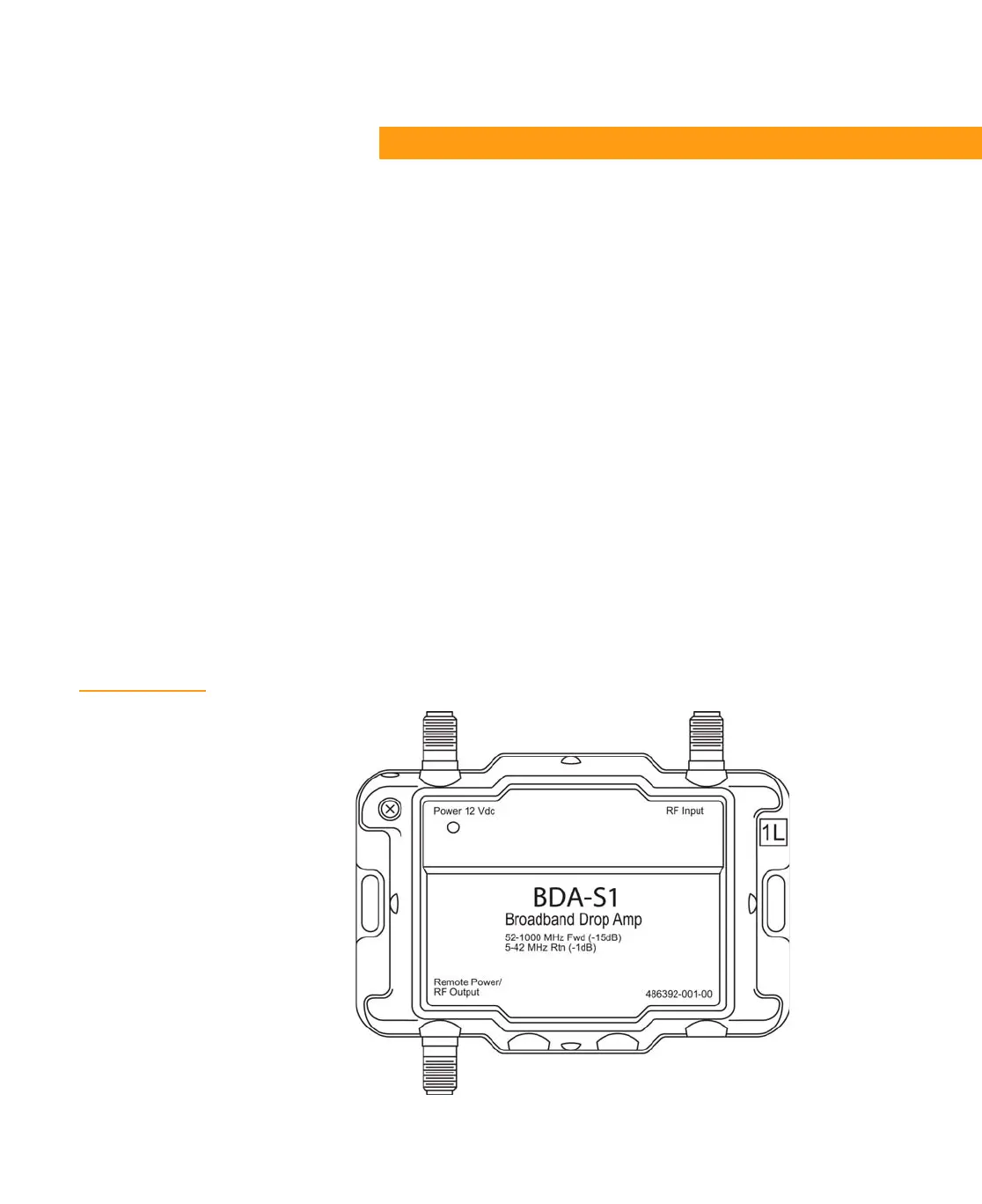

Figure 1 illustrates the BDA-S1 drop amplifier.
Figure 1
BDA-S1 drop
amplifier
