Arrma 4S - ELECTRONIC SPEED CONTROLLER (ESC); ESC Throttle Setup

WWW.ARRMA-RC.COM
WWW.ARRMA-RC.COM
CONTROLLER OFF SECOND
ESC Specications
Input Voltage
3S-4S LiPo (11.1-14.8v)
35C 5000mAh Minimum
BEC Output 6.0v/6A Max
Only use fully charged LiPo batteries (4.2V per cell) to prevent
battery/ESC damage.
Throt tle
Setup

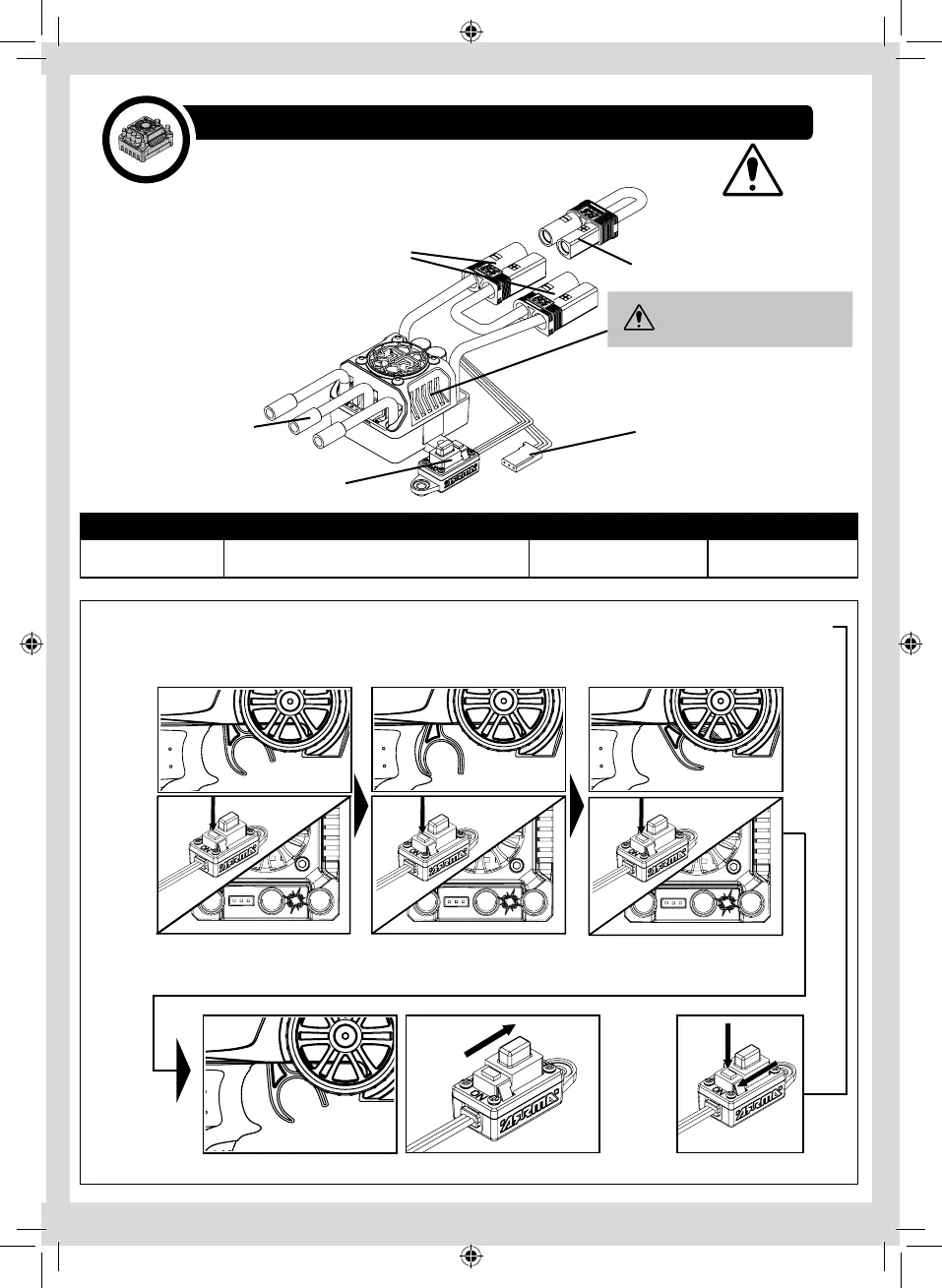

Connect batteries, turn on transmitter and then press/hold the set button ‘A’ whilst
turning on the switch on ‘B’ and release the set button when the RED light ashes
on the ESC.
Electronic Speed Controller (ESC)
IC5™ Battery Plug
WARNING:
Heat sink
may be hot after use.
Receiver Plug (CH2)
Power Switch & Set button
Motor wires x 3
1. Throttle trigger in neutral
position - press set button (1
Green ash)
2. Throttle trigger in full throttle
position- press set button (2
Green ashes)
3. Throttle trigger in full brake
position - press set button (3
Green ashes)
4. Switch o󰀨 ESC to complete setup
A
B
IC5™ Loop Wire
