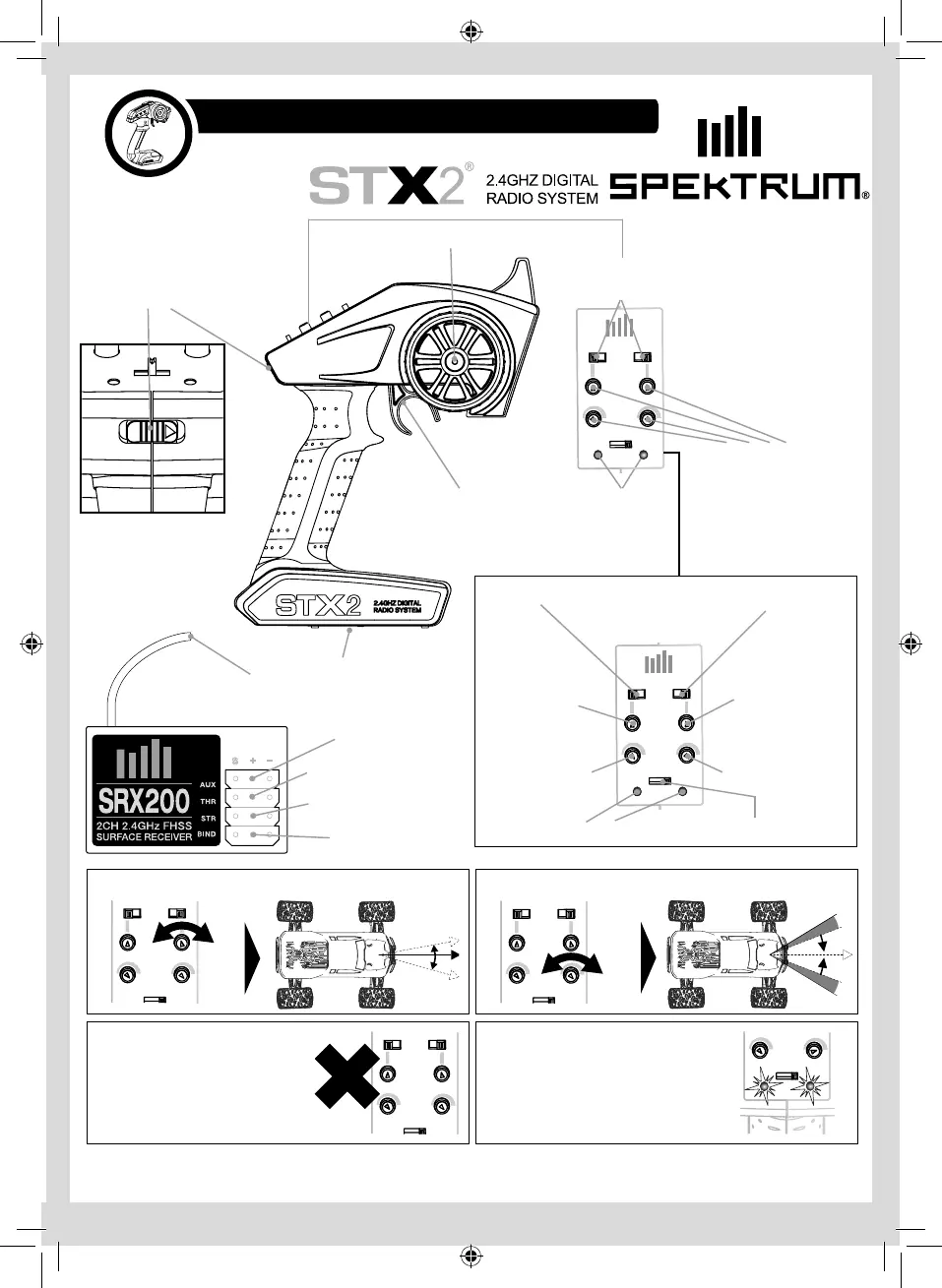

Radio Gear
SPEKTRUM STX2 2.4GHz
Battery compartment
Steer wheel (CH1)
Trim and Dual-rate
dials
TH/ST Reverse
Switches
Power switch
Throttle socket (CH2)
Steering (CH1) socket
CH3 socket
Power LED
Throttle trigger
(CH2)
Bind socket
Steering reverse
Steering trim
Throttle trim
Steering dual rate
Throttle reverse
Throt tle Tr im
Throttle Trim: factory default neutral,
adjustment is not necessary.
Battery Status
If battery status LED is ashing, the
batteries need to be replaced.
