2.2 Outputs
The Arrow Bingo Converter has two output panels. The main output panel consists of 6 RJ-12
connectors. The secondary sets are the dedicated senator and TPI outputs.

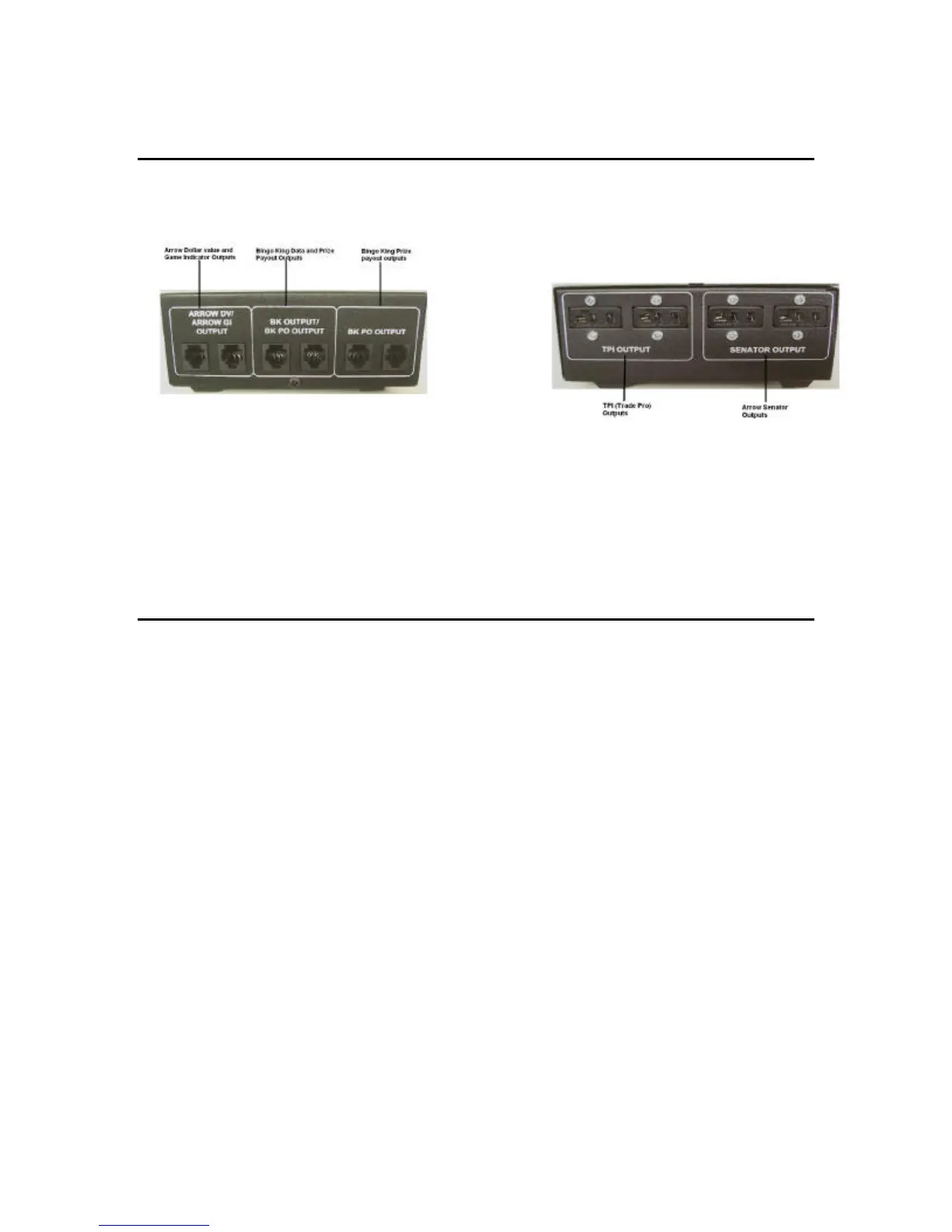

Figure 2.3 Figure 2.4
The set of BK data and Payout outputs are duel purpose. Each output puts out both the BK data and
the BK prize payout data. This has the advantage of running only one data cable to the BK prize
payout flashboards. To break the signal back out, use a Data Cable Splitter listed below.
2.3 Accessories
The following list contains the accessories that are available for
the Arrow Bingo Converter. Please contact the Arrow Technical
Assistance Center at 1800-277-6214 for more information.
1234567 Power supply
1234567 Battery Pack
1234567 Bingo King input cable
445001004 Arrow input cable adapter (RJ-12)
445001003 Arrow input cable (cinch Jones)
46253 Arrow flashboard Cheater (3 to 6 pin)
1234567 PC accessory pack
1234567 RS 232 cable
1234567 RJ-12 Data cable splitter
