2.0 Controls and Indicators

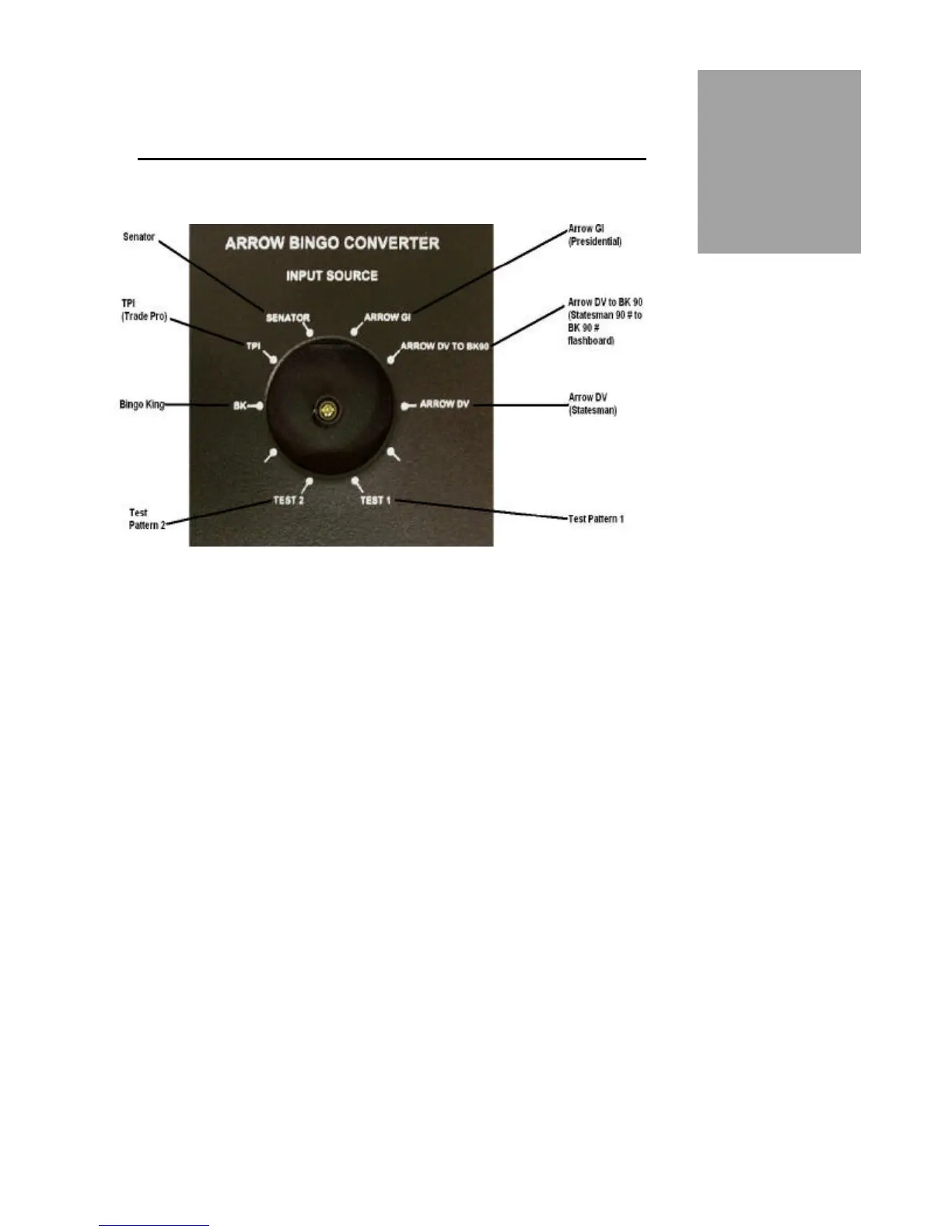

Figure 2.0
The Arrow Bingo Converter is user friendly and simple to use. The diagram above shows the
basic user controls.
Senator--------------------------Arrow International Senator Bingo console
TPI------------------------------- Trade Pro Bingo Console. (See chart in section 1.1 for
a list of supported systems)
BK-------------------------------- Bingo King console. (See chart in section 1.1 for a
list of supported systems)
Arrow G.I. --------------------- Arrow International Presidential Bingo Console
Arrow DV to BK 90--------- Statesman 90 number console to Bingo King 90 number flashboard
Arrow DV-----------------------Arrow International Statesman Bingo console
Test 2--------------------------- Tests all flashboard types with the column and row test pattern
Test 1--------------------------- Tests all flashboard types with the all lamps on all lamps off pattern
