Arrow Harriet 305 - Page 16

Assembly InstructionsHarriet
16

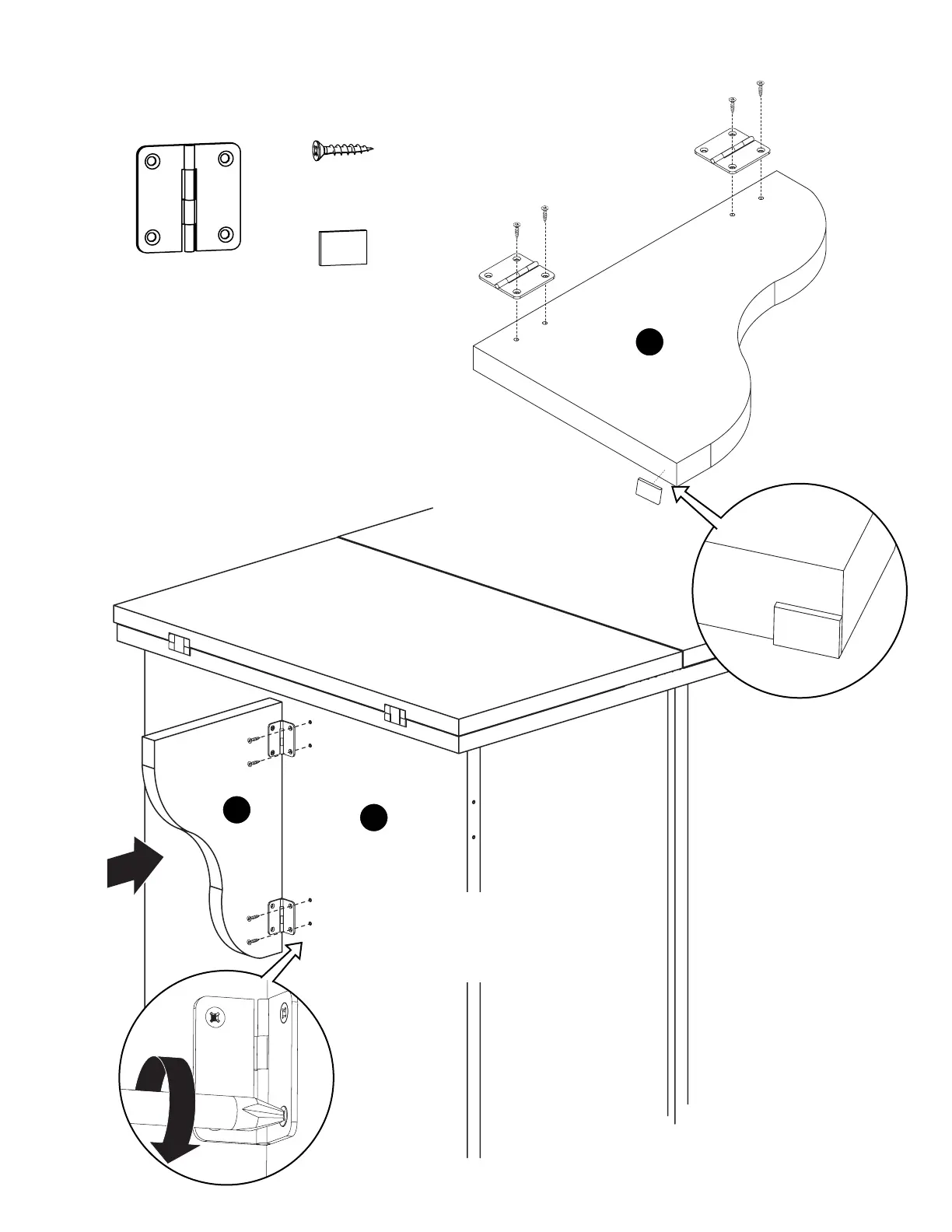

Step 6: Leaf Support
L
E
Support Hinge x2
#7x5/8” Flathead
Screw x8
Self-Sticking
Rubber Tab x1
Attach Support
Hinges to Leaf
Support Panel
L as shown,
using #7x5/8”
Screws.
Attach Leaf Support Panel L
to Panel E as shown, using
#7x5/8” Screws.
L
Adhere the Self-Sticking
Rubber Tab to Panel L
so that it is off-center on
the edge of the panel as
shown above.
