Step 7: Door - Door Bin
10mm Cam Lock x14
Short Cam Bolt x9

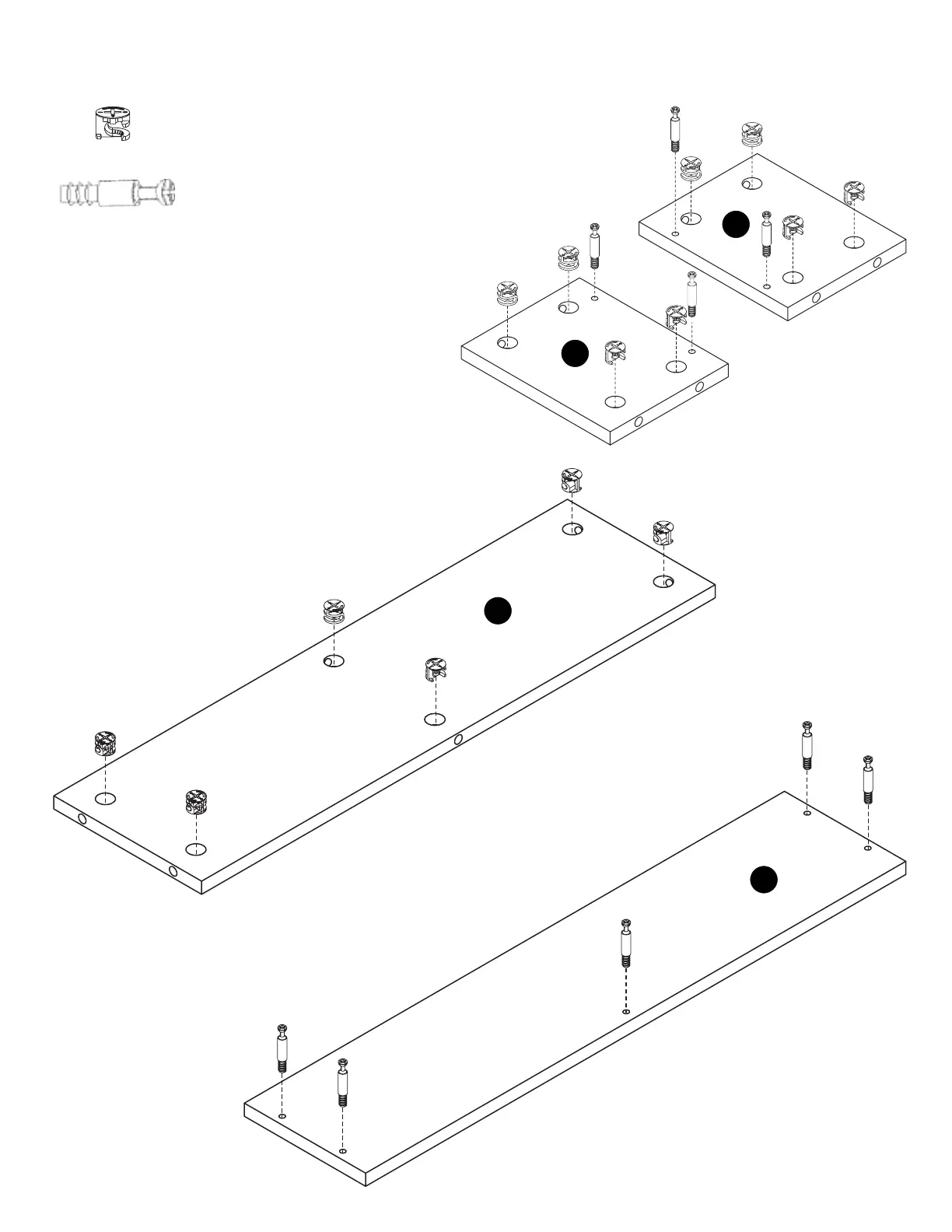

Attach 2 Short Cam Bolts into each Panel V piece.
Insert 4 10mm Cam Locks into each Panel V piece.
Insert 6 10mm Cam Locks into Panel W.
Attach 5 Short Cam Bolts into Panel U.
V
V
W
U
