Assembly InstructionsHarriet
20
Step 7: Door
Handle x1
4x20 Fix Bolt
x2
4x14 Screw x6

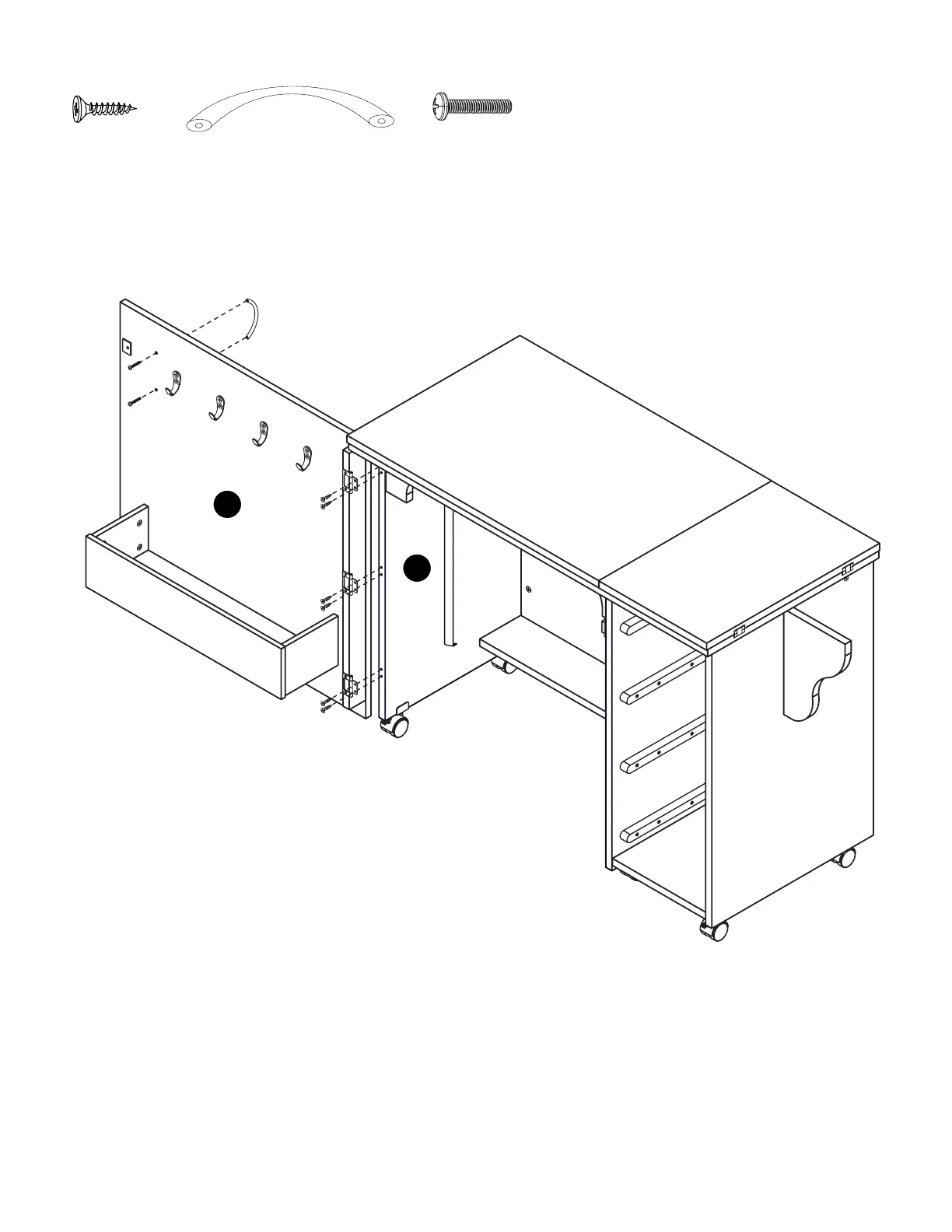

Attach Hinges on Door to Panel D
using 4x14 Screws as shown.
D
Attach Handle to Door using 4x20
Fix Bolts as shown.
