Assembly InstructionsHarriet
19

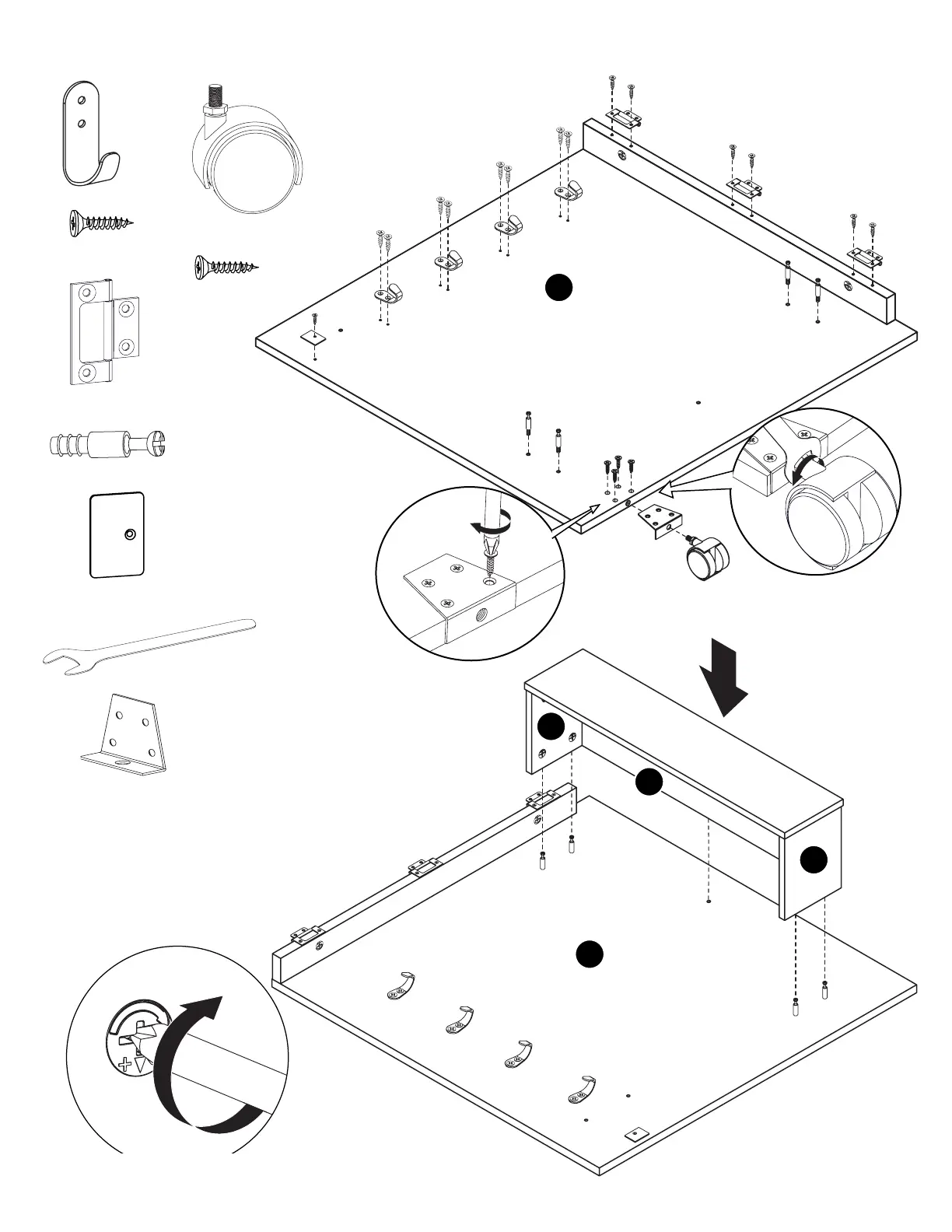

Step 7: Door
4x14 Screw x14
Flush Hinge x3
Short Cam Bolt x5
Door Hooks x4
#5x5/8” Flathead
Screw x1
Magnet Strike Plate
x1
Remember to tighten the Cam Locks!
Attach 4 Door Hooks
using 4x14 Screws.
Attach 3 Flush Hinges
using 4x14 Screws.
Attach Magnet Strike Plate
using #5x5/8” Screw.
Attach 4 Short Cam Bolts.
Lower the door bin onto the door,
inserting Cam Bolts on Panel O into
Cam Locks on Panels V and W.
Tighten the Cam Locks by turning
180° clockwise.
O
O
V
V
W
Attach Caster Bracket to
Panel O using
4x14 Screws.
Insert Caster into Caster Bracket and
tighten with Wrench.
50mm Non-Locking Caster x1
Caster Bracket x1
