Arrow HM8667 - Step 12; Roof Beams

25
Step 12
B25
● Parts Needed For ●
Roof Beams
●●
●●
● Main Roof Beam (1)
●●
●●
● 8474 Roof Beam (2)

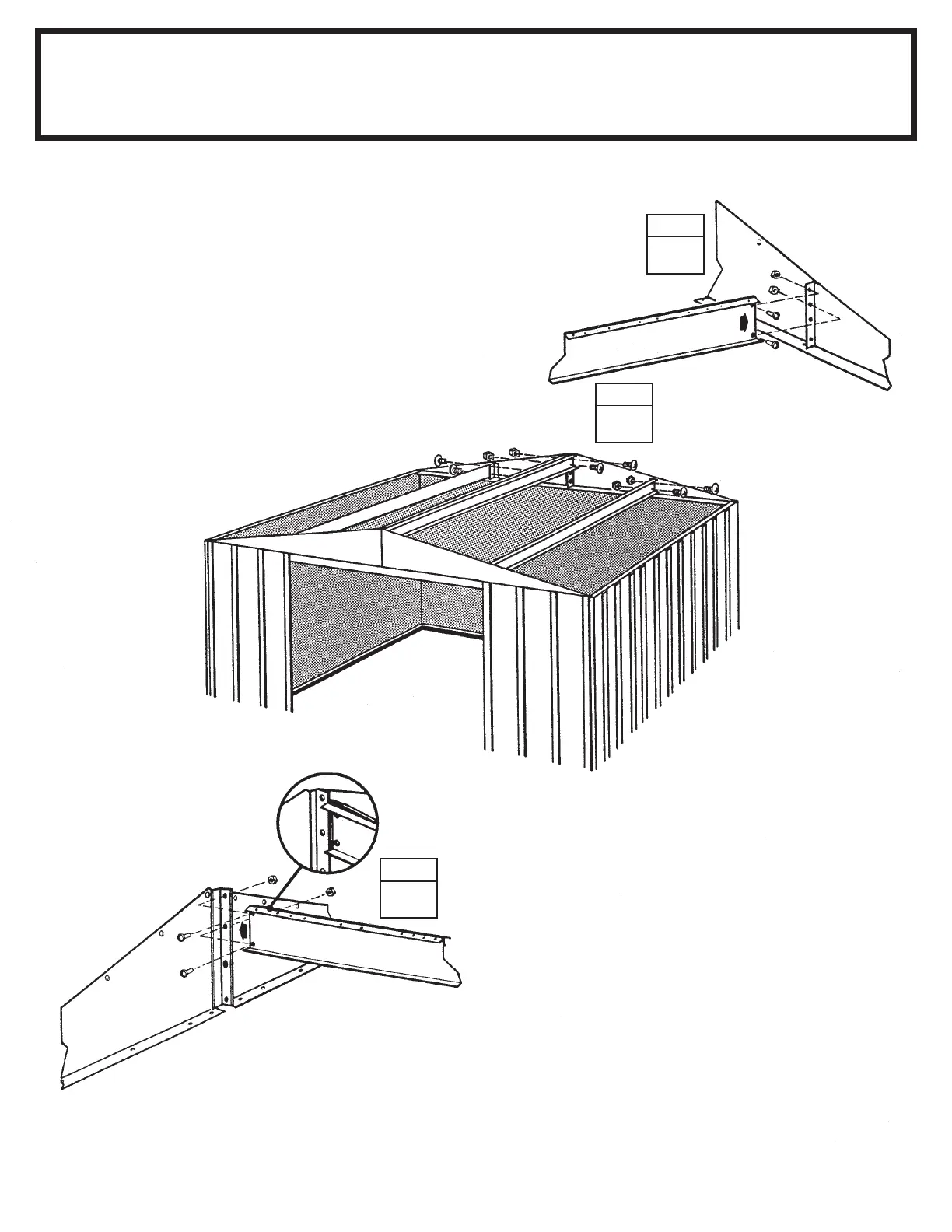

1 Fasten the main roof beam to the
gable brace of the front gable.
2 Fasten the other end of the main
roof beam to the gable brace of the
rear gable.
3 Fasten the remaining roof beams,
small holes on top, as shown using
bolts and nuts.
1
STEP
8474 Roof Beam
Main Roof Beam Assembly
2
STEP
3
STEP
