Arrow HM8667 - Step 11; Gables;Braces

24

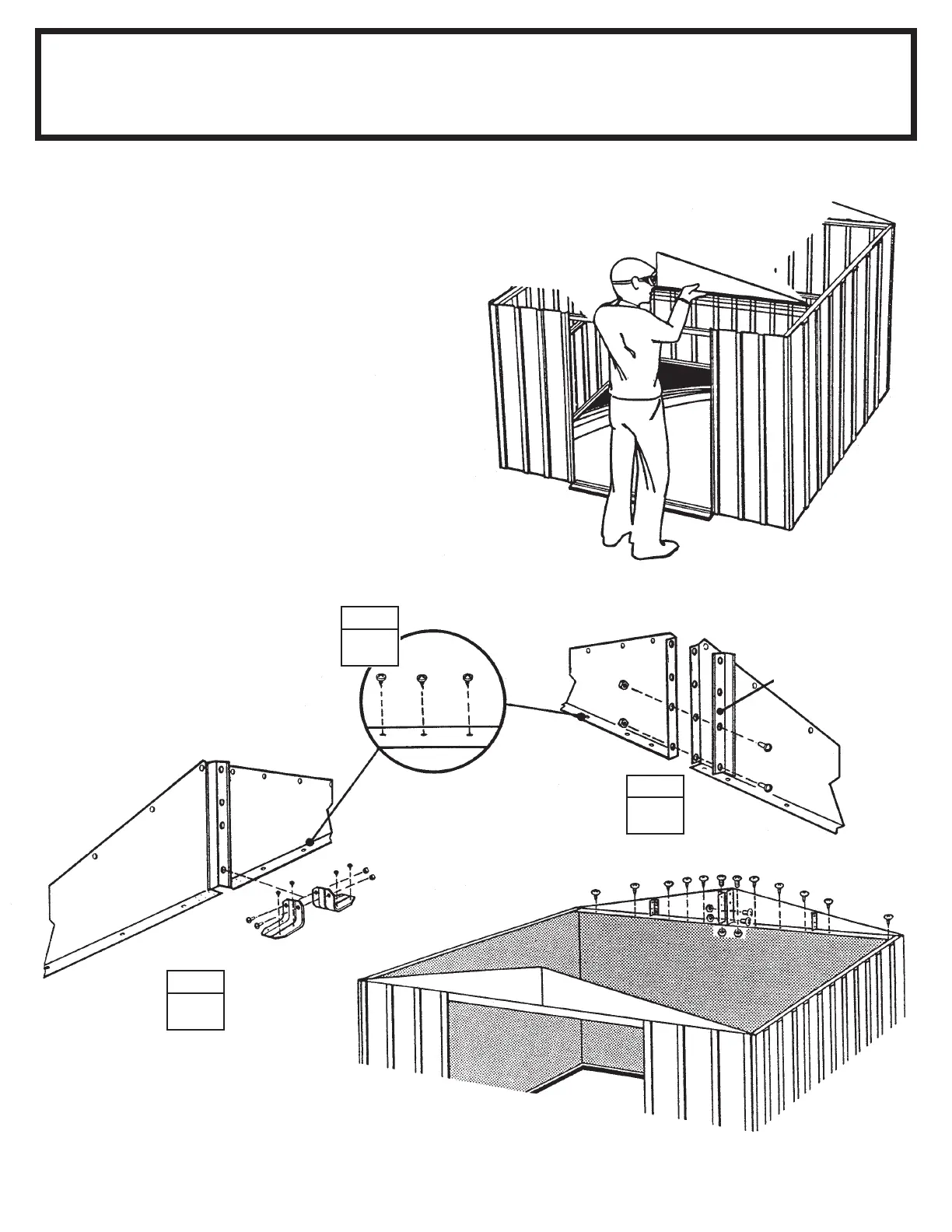

Step 11
B24
● Parts Needed For ●
Gables/Braces
●●
●●
● Left Gable Assembly (2)
●●
●●
● Right Gable Assembly (2)
●●
●●
● 6658 Gable Brace (2)
1 Lift and fasten a right and left
gable, under angle at corner, to the
rear wall angle with screws.
Hint: On the rear gable, use a bolt
and nut at the overlapping rear wall
angle. On the front gable, leave out 2
screws closest to center gable leg.
2 Join the left and right gables
together with a gable brace using
bolts and nuts in the bottom two holes
only.
3 Repeat Steps 1 & 2 for the door
track on the front of building, except
for the track supports, fasten as
shown.
2
STEP
6658 Gable Brace
Track Supports 6228
Gable
1
STEP
3
STEP
