Arrow LW108 - Door Jambs and Channels

27
Door Jamb
2
9369
(QTY: 8)
(QTY: 4)
Bolt must go thru back side of Panel
or they may interfere with Door action.
Acorn nut should be visible from outside building.
You will need for this page:

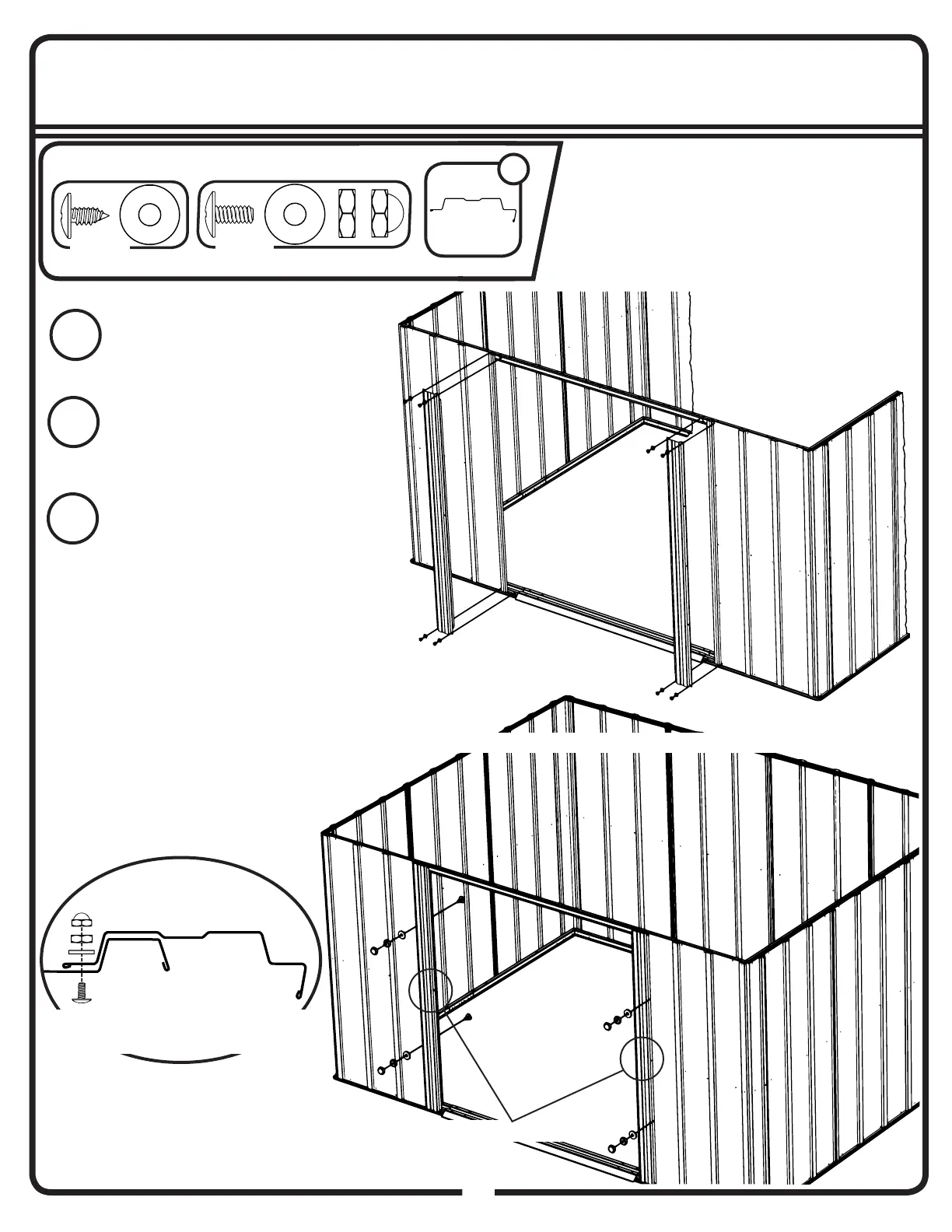

Step 9: Door Jambs
Leave these holes open.
Secure Door Jambs with two (2)
screws in the top and bottom of each
Panel as shown.
1
3
Leave the holes in the center of each
Door Jamb open as shown below.
2
Insert two (2) bolts and nuts into the
back side of each Panel as shown
below. Secure the bolts with both a
standard nut and an acorn nut.
27A
