ARTECH AK Series - Pabx Smdr Configuration

User’s manual – AK32 EMBEDDED SYSTEM VOICE LOGGER
42
5. Channel number length: 2
Remark: AK32 is able to decode DTMF for call number itself, the phone number from SMDR
will be ignored.
Outbound call:
Same as Inbound call verification.

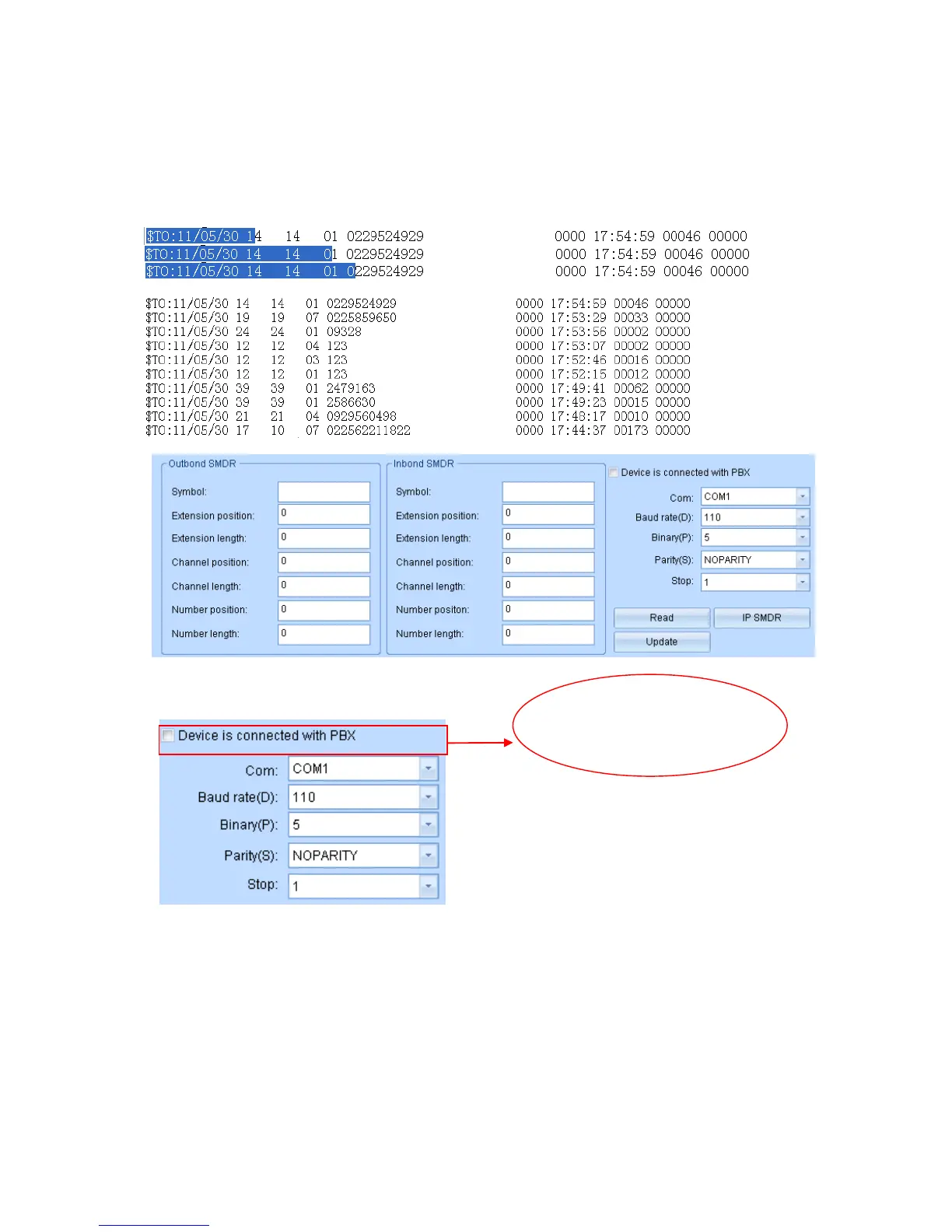

PABX SMDR Protocol
Please refer PABX user’s manual about serial communication configuration for windows
HyperTerminal operation
Gain SMDR data through TCP/IP
Most PABX support TCP/IP SMDR. Please refer PABX user’s manual about SMDR output
parameter.
1. PABX IP address: The IP address assigned to PABX
Do not check this option if
there’s no SMDR
connected.
