ARTECH AK Series - Page 9

User’s manual – AK32 EMBEDDED SYSTEM VOICE LOGGER
7

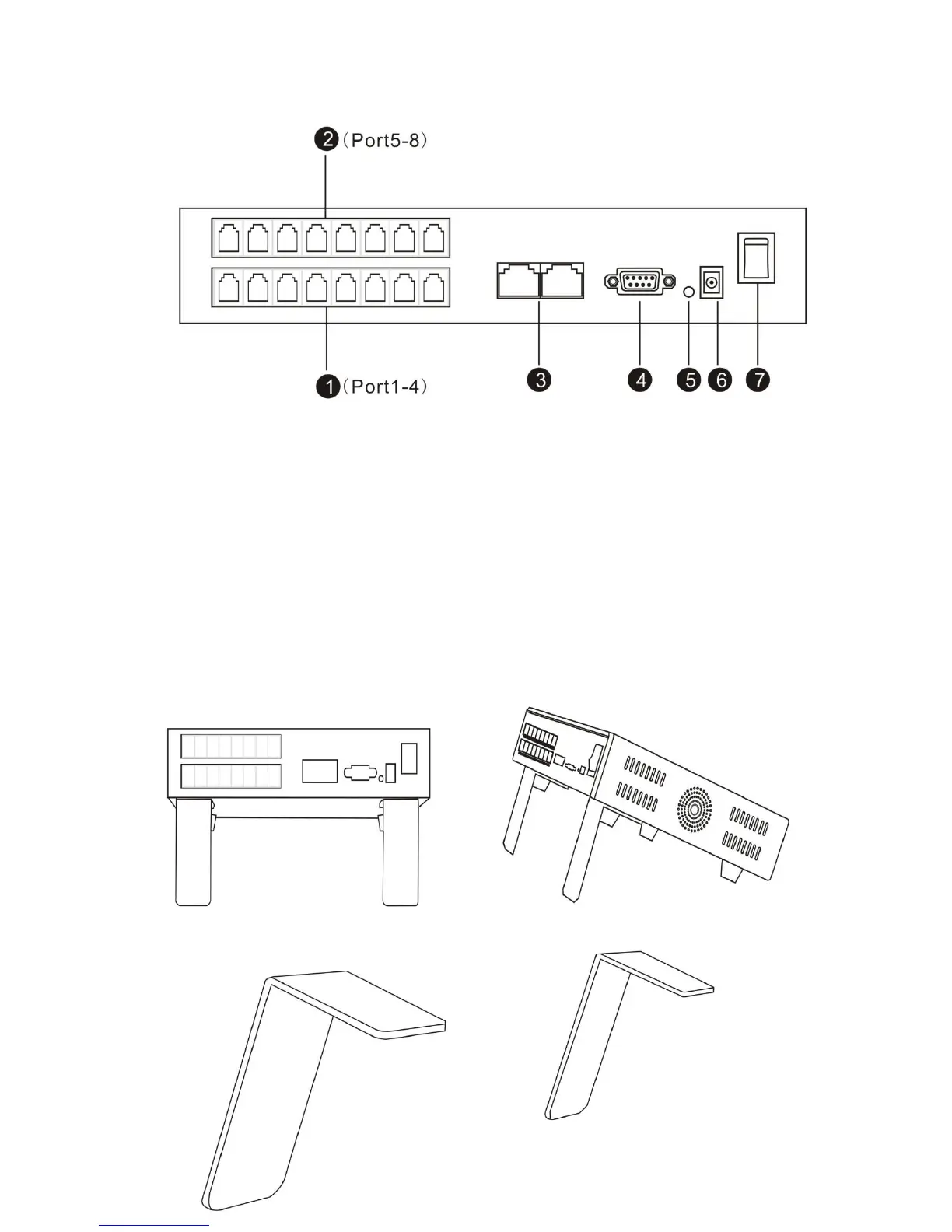

AQ Rear
1 Card 1, Channel 1-4 (RJ11)
2 Card 2, Channel 5-8 (RJ11)
3 RJ45 Port x 2
4 RS232 Port for SMDR data
5 RS232 data indicator
6 Power input : DC-19V
7 Power switch
AQ Rack (Remove AQ rubber stand first and screw it with rack again)
