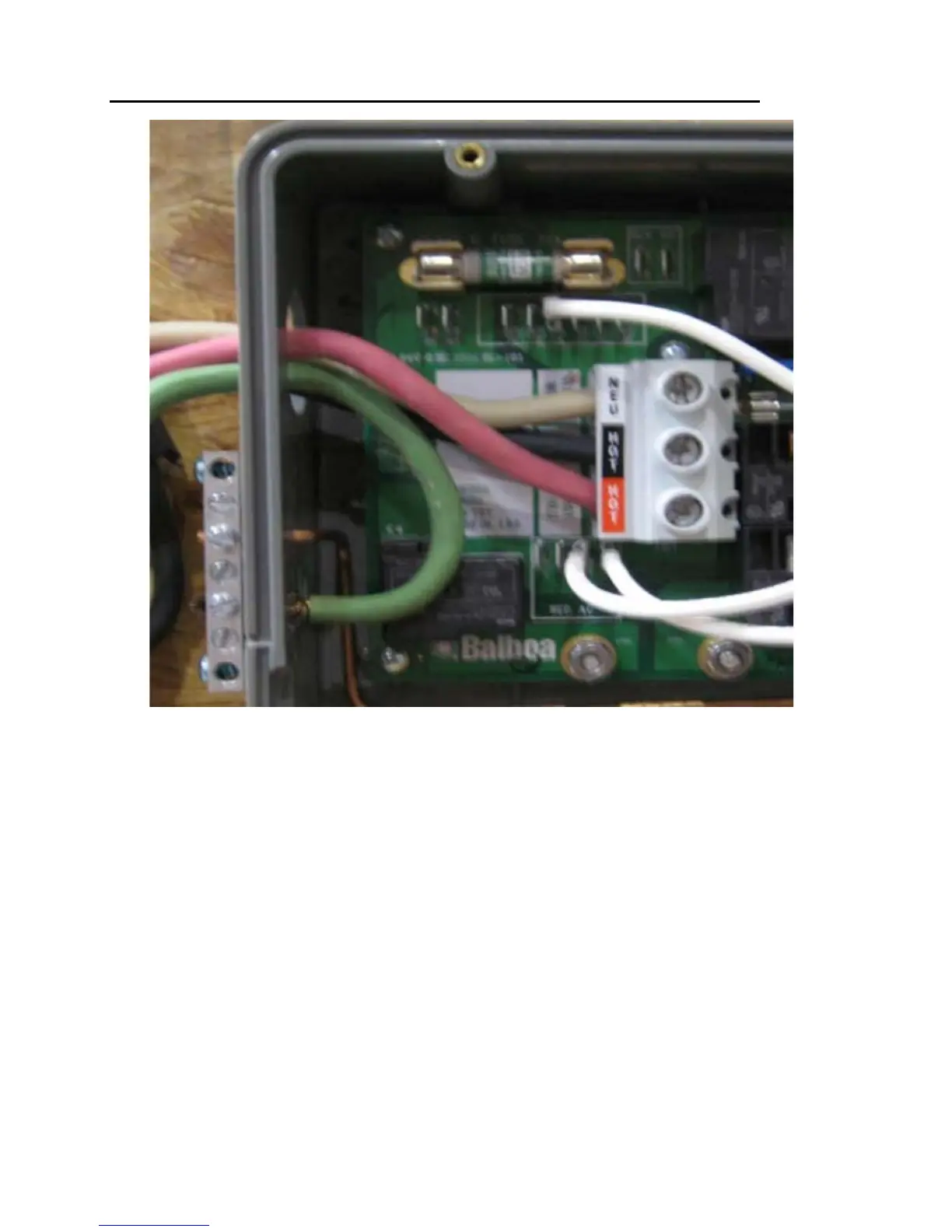

Picture of System Box Terminal
Connection for 60Hz
Connect the each color to its respective terminal block location.
The Ground (green) wire must be connected to the ground-
ing terminal which is outside of the System box. The Ground-
ing wire must rst enter the system box and then access the
grounding terminal via a hole on the side of the box adjacent to
the grounding terminal as shown in the picture above.
