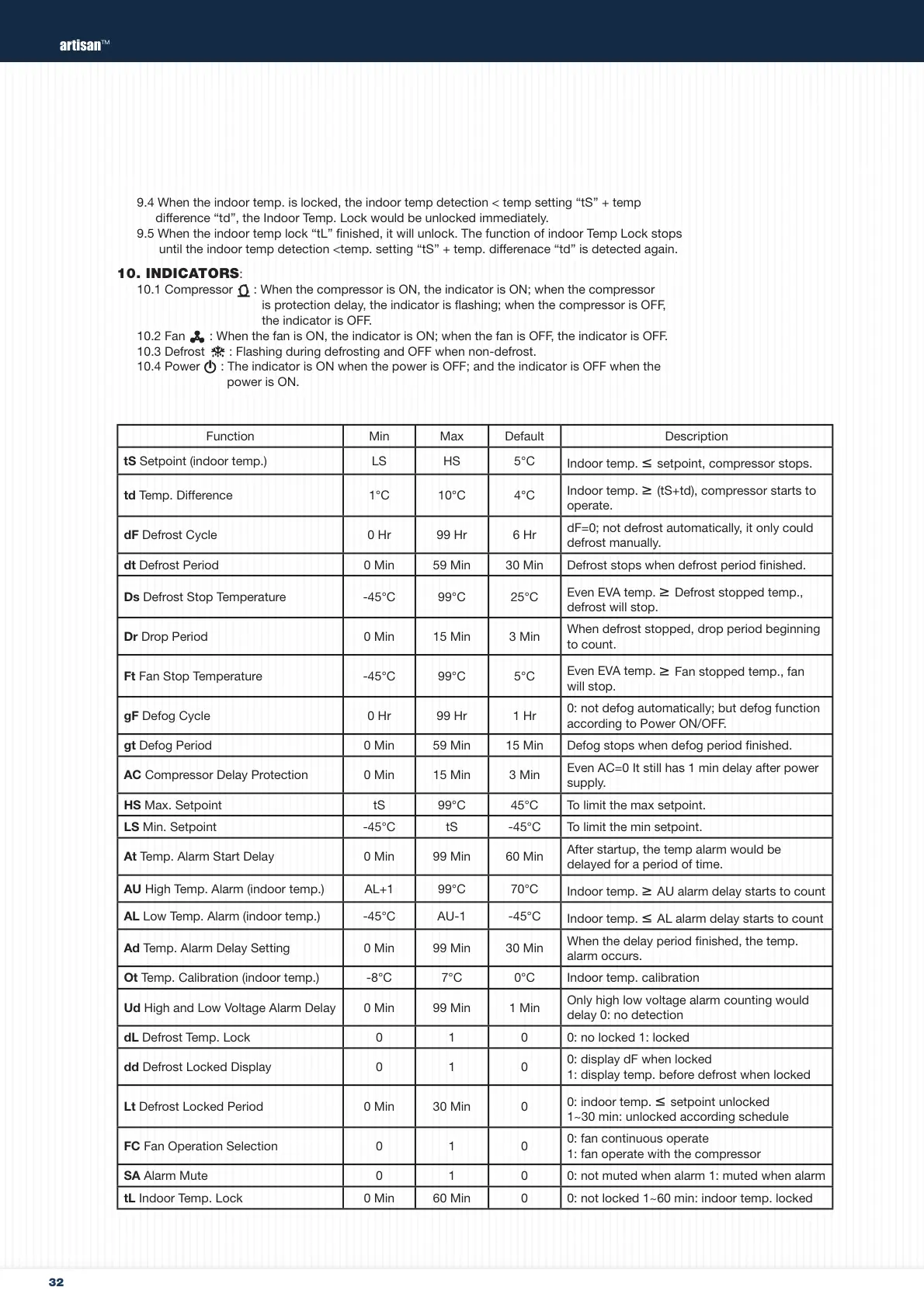

9.4 When the indoor temp. is locked, the indoor temp detection < temp setting “tS” + temp
difference “td”, the Indoor Temp. Lock would be unlocked immediately.
9.5 When the indoor temp lock “tL” finished, it will unlock. The function of indoor Temp Lock stops
until the indoor temp detection <temp. setting “tS” + temp. differenace “td” is detected again.
10. INDICATORS:
10.1 Compressor : When the compressor is ON, the indicator is ON; when the compressor
is protection delay, the indicator is flashing; when the compressor is OFF,
the indicator is OFF.
10.2 Fan : When the fan is ON, the indicator is ON; when the fan is OFF, the indicator is OFF.
10.3 Defrost : Flashing during defrosting and OFF when non-defrost.
10.4 Power : The indicator is ON when the power is OFF; and the indicator is OFF when the
power is ON.
Function Min Max Default Description
tS Setpoint (indoor temp.) LS HS 5°C
Indoor temp.
≤ setpoint, compressor stops.
td Temp. Difference 1°C 10°C 4°C
Indoor temp.
≥ (tS+td), compressor starts to
operate.
dF Defrost Cycle 0 Hr 99 Hr 6 Hr
dF=0; not defrost automatically, it only could
defrost manually.
dt Defrost Period 0 Min 59 Min 30 Min Defrost stops when defrost period finished.
Ds Defrost Stop Temperature -45°C 99°C 25°C
Even EVA temp.
≥ Defrost stopped temp.,
defrost will stop.
Dr Drop Period 0 Min 15 Min 3 Min
When defrost stopped, drop period beginning
to count.
Ft Fan Stop Temperature -45°C 99°C 5°C
Even EVA temp.
≥ Fan stopped temp., fan
will stop.
gF Defog Cycle 0 Hr 99 Hr 1 Hr
0: not defog automatically; but defog function
according to Power ON/OFF.
gt Defog Period 0 Min 59 Min 15 Min Defog stops when defog period finished.
AC Compressor Delay Protection 0 Min 15 Min 3 Min
Even AC=0 It still has 1 min delay after power
supply.
HS Max. Setpoint tS 99°C 45°C To limit the max setpoint.
LS Min. Setpoint -45°C tS -45°C To limit the min setpoint.
At Temp. Alarm Start Delay 0 Min 99 Min 60 Min
After startup, the temp alarm would be
delayed for a period of time.
AU High Temp. Alarm (indoor temp.) AL+1 99°C 70°C
Indoor temp.
≥ AU alarm delay starts to count
AL Low Temp. Alarm (indoor temp.) -45°C AU-1 -45°C
Indoor temp.
≤ AL alarm delay starts to count
Ad Temp. Alarm Delay Setting 0 Min 99 Min 30 Min
When the delay period finished, the temp.
alarm occurs.
Ot Temp. Calibration (indoor temp.) -8°C 7°C 0°C Indoor temp. calibration
Ud High and Low Voltage Alarm Delay 0 Min 99 Min 1 Min
Only high low voltage alarm counting would
delay 0: no detection
dL Defrost Temp. Lock 0 1 0 0: no locked 1: locked
dd Defrost Locked Display 0 1 0
0: display dF when locked
1: display temp. before defrost when locked
Lt Defrost Locked Period 0 Min 30 Min 0
0: indoor temp.
≤ setpoint unlocked
1~30 min: unlocked according schedule
FC Fan Operation Selection 0 1 0
0: fan continuous operate
1: fan operate with the compressor
SA Alarm Mute 0 1 0 0: not muted when alarm 1: muted when alarm
tL Indoor Temp. Lock 0 Min 60 Min 0 0: not locked 1~60 min: indoor temp. locked
