ARTROMOT K4 - 4. Packing and unpacking

The
following
settings
must
be
made
to
transport
the
ARTROMOT®
-
K4:
5
4.
Packing
and
unpacking
Set the packing setting in the menu or move the devi
ce in a position of
EXTENSION
=
1
0
degrees.
Switch off the device.
Remove power cord and disconnect the hand-held programming unit.
Remove the the femur extension assembly.
For transportation, use the original packaging.
Put the hand-held programming unit and the femur extension assembly into a extra box.
Set the angle joint horizontal.
Put three extra protection for the knee joint on the device as shown on the figure below.
Move the two styrofoam parts on the device.
Put the device with the styrofoam parts in the carton.

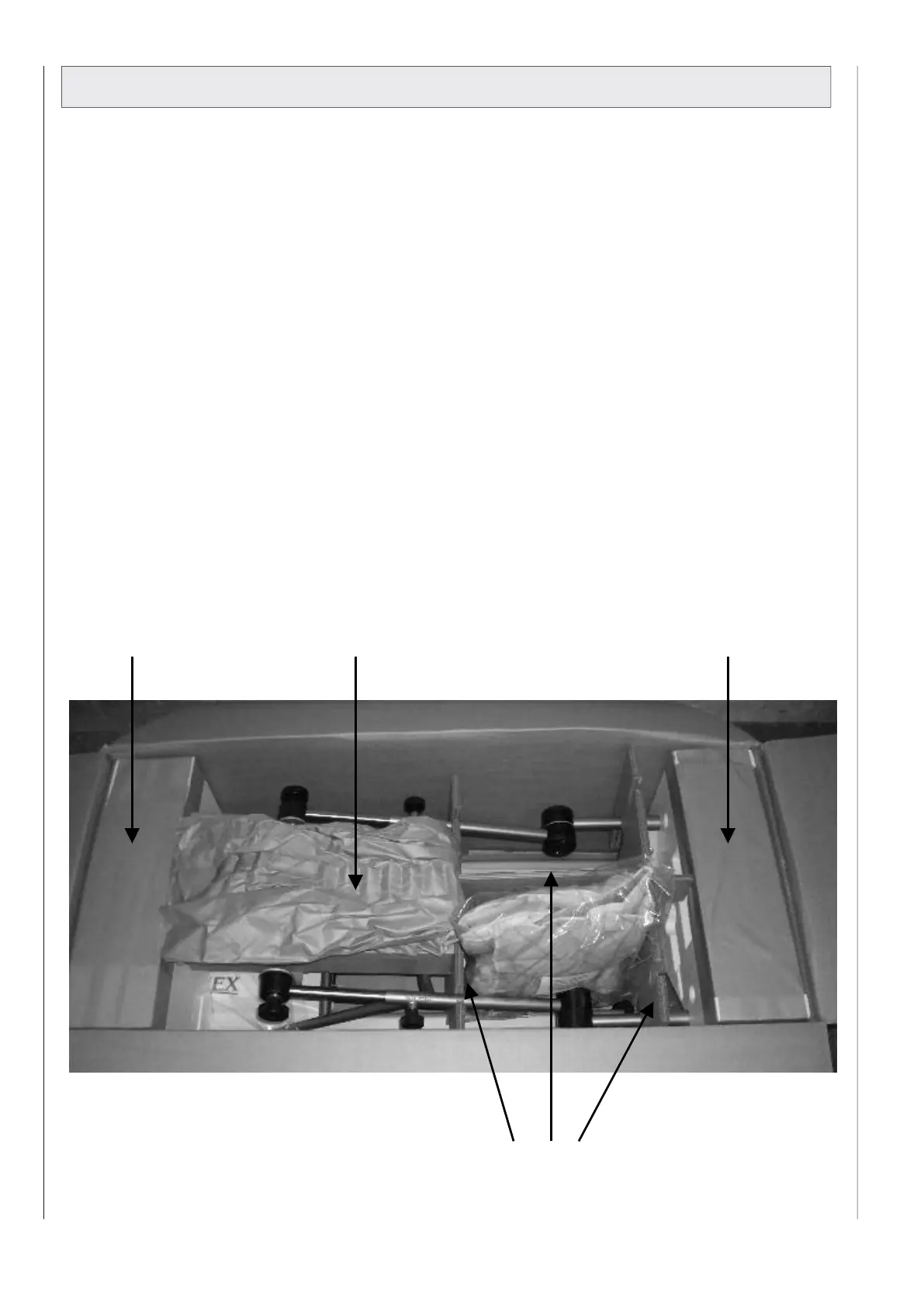

First put the power cord in the extra box, the femur extension assembly in the extra box, the hand held programming unit in
the extra box and the extra pad in the packing as shown in figure below.
Power cord in
the extra box
Hand held programming unit in the
extra box and on top of it the extra pad
Extra protection for the knee joint
Femur extension assembly
in the extra box
