3.3. Inputs and Outputs
3.3.1. Inputs 1 & 2
AudioFuse offers two real parallel preamplifiers for microphone and line/instrument inputs.

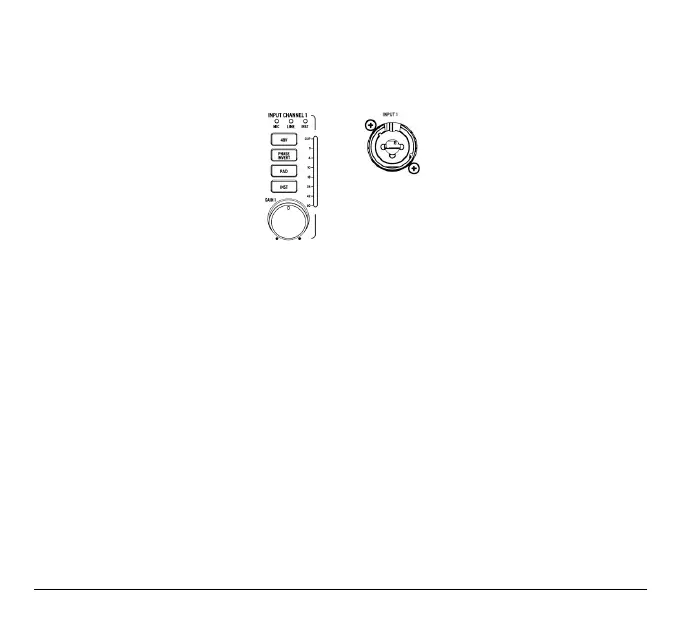

The input Channels 1 and 2 offer full control of mic preamp on the interface with
• 48V : Phantom power activation
• Phase invert : Reverse signal polarity to use when recording with multiple
microphnes
• PAD : -20Db pad function for headroom. When a microphone is connected,
pressing PAD switch one time will add a "boost" to your mic signal. Pressing it a
second time will apply a -20db pad to your mic signal.
• INST : to switch from LINE to INST level and impedance.
• GAIN : +2 to +70dB DiscretePro® Preamplifier analog gain control knob.
• -60dB to clip led meter with peak hold.
The XLR/TRS Jack combi-connectors will auto-detect which connector is used.
If you use an XLR connector, the input type MIC is auto-selected. Otherwise the LINE/INST
input is available and you can switch between those with the INST button.
