Arturia Microbrute User’s Manual 12

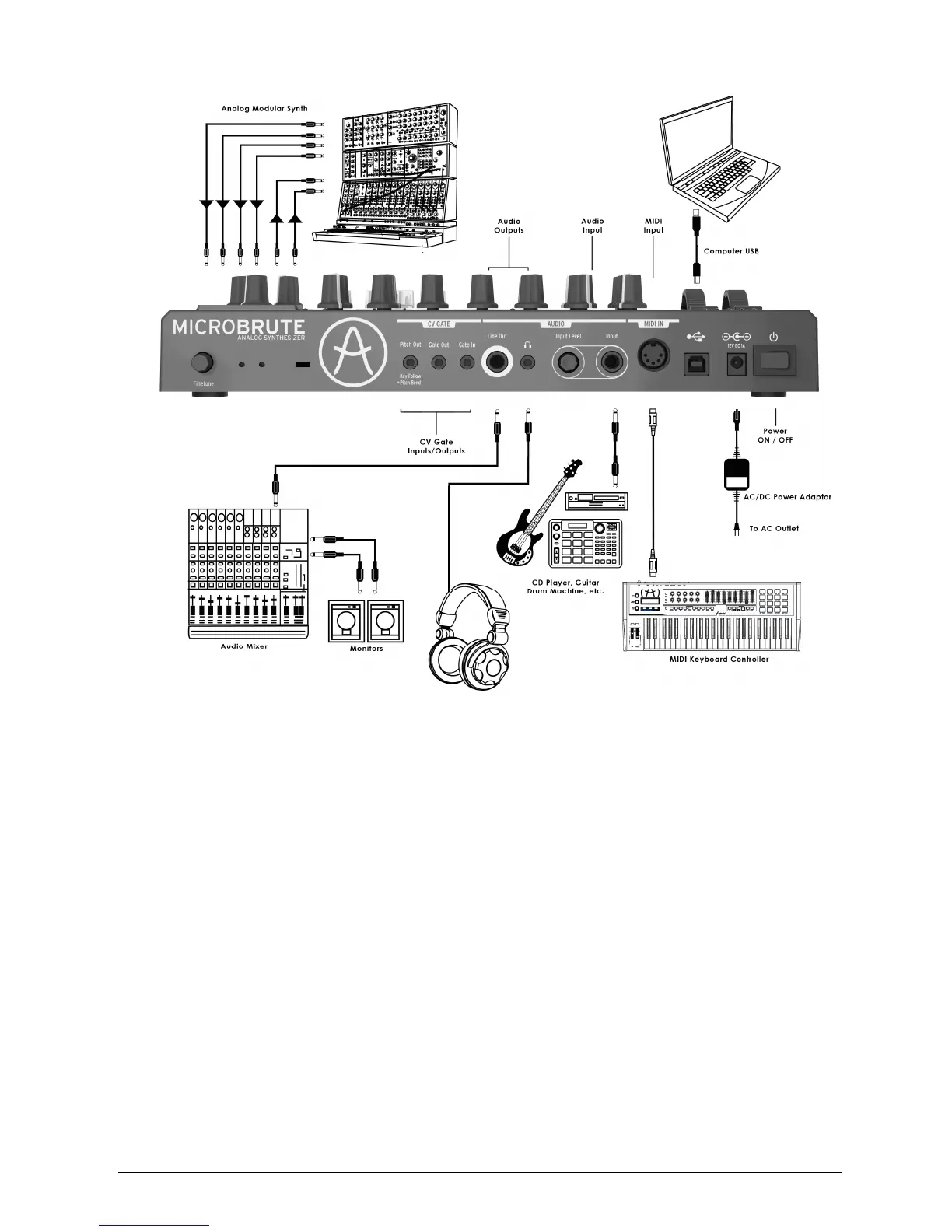

Here is an overview of the MicroBrute synthesizer’s connectors:
• Audio Input & Outputs..........6.35 mm (1/4'') mono jacks
• Headphone Output…………3.5 mm (1/8'') miniature stereo jack
• CV/Gate.................................3.5 mm (1/8'') miniature mono jacks
• MIDI Input................................Standard MIDI DIN-5
• USB...........................................Standard USB type B
• Power DC Input......................12 Volt, 1Amp, Center pin positive
