4Aruba 200 Series Access Points | Installation Guide

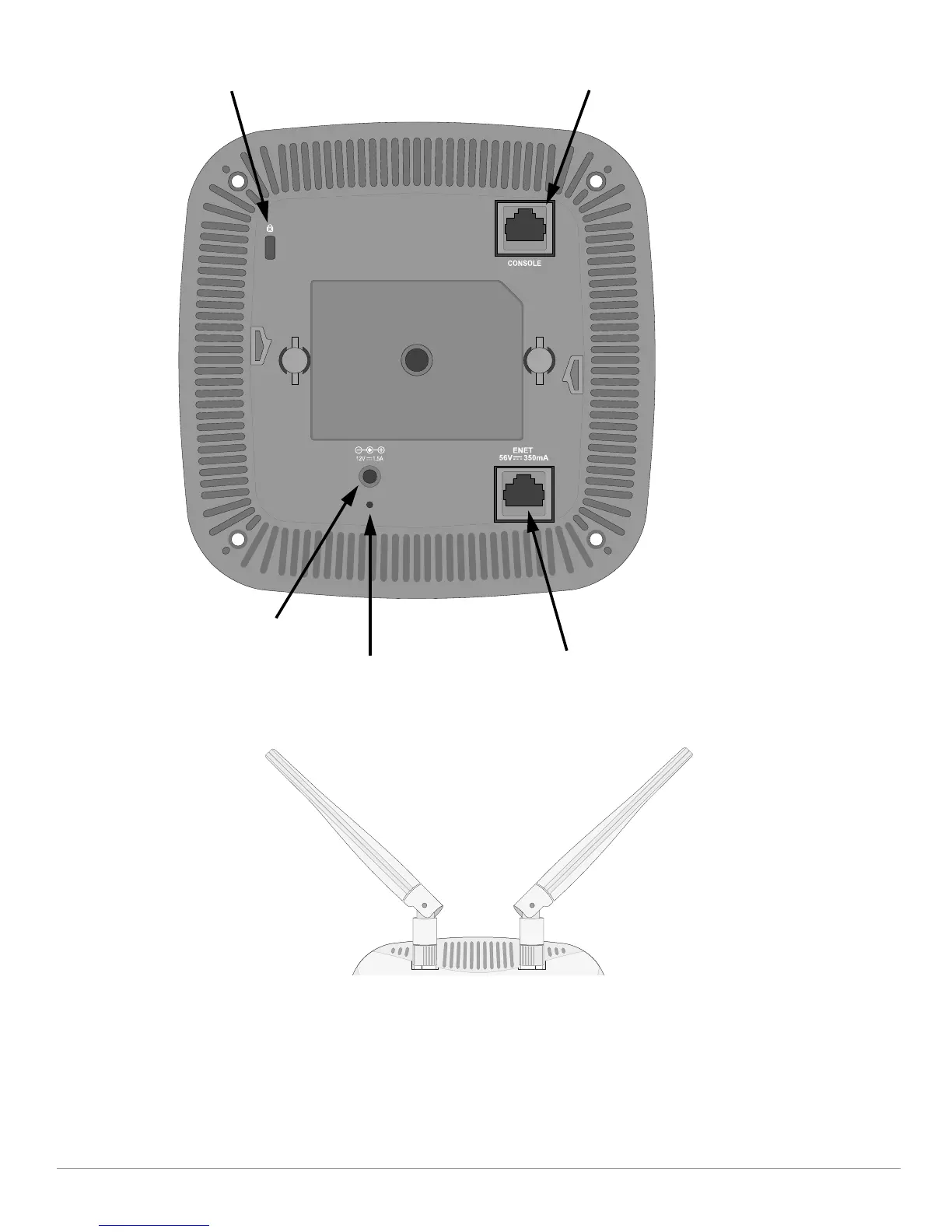

Figure 3 AP-200 Series Rear View
For optimal performance when using articulating direct-mount antennas, professional installers must orient the antennas as
pictured in Figure 4, below.
Figure 4 AP-204 Antenna Orientation
Console Port
The serial console port allows you to connect the AP to a serial terminal or a laptop for direct local management. This port is an RJ-
45 female connector with the pinouts described in Figure 5. Connect it directly to a terminal or terminal server using an Ethernet
cable.
Kensington Lock Console Port
DC Power Sockets
Reset Button
Ethernet Ports
