2 Aruba 340 Series Access Points | Installation Guide

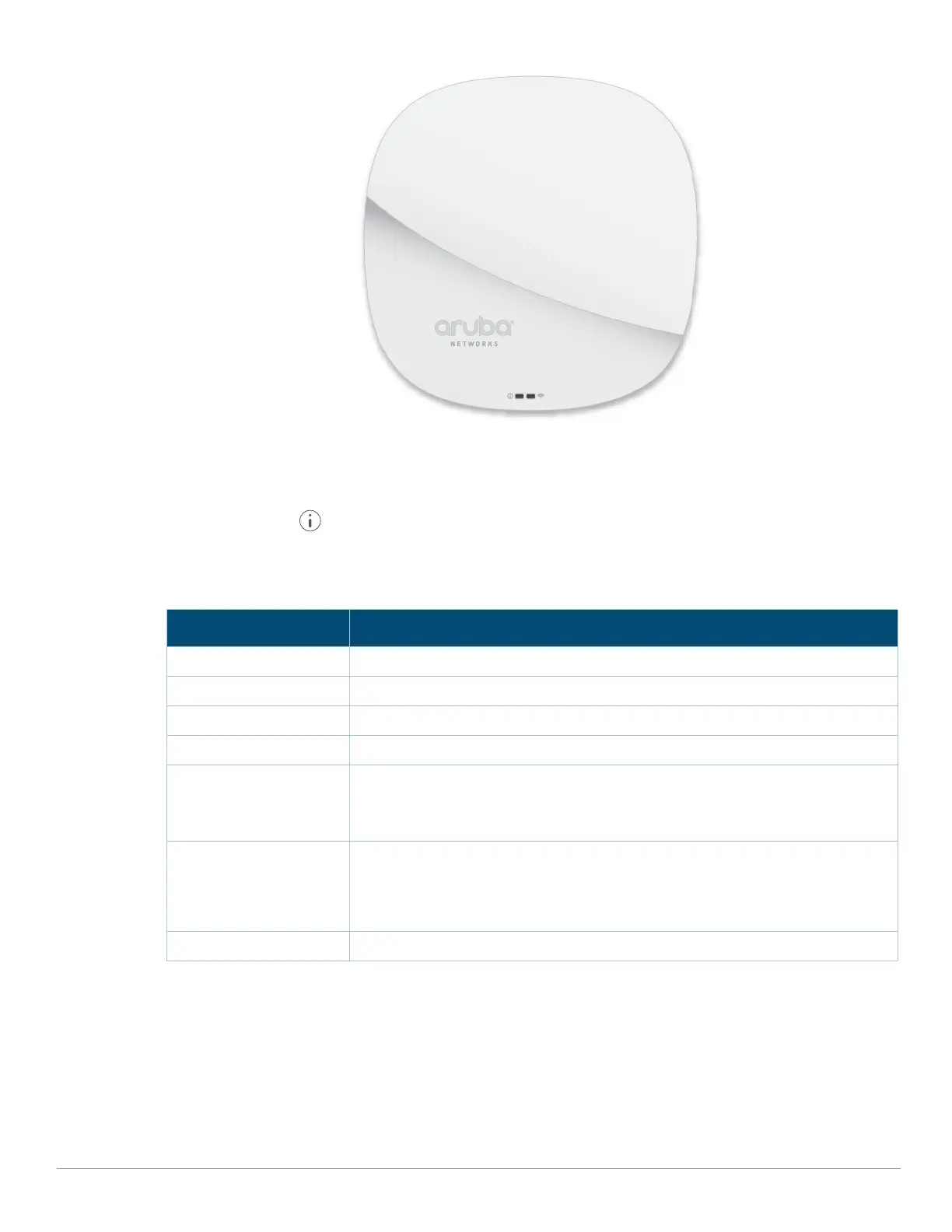

Figure 1 Aruba AP-345 (front view)
LED
The LED displays located on the front panel of the access point indicate the following functions:
System Status
The System Status LED indicates the operating condition of the access point, See Table 1.
Table 1 System Status LEDs
1 Blinking: one second on/one second off.
2 Flashing: on/off repeated in less than 1s
Radio Status
The Radio Status LED indicates the operating mode of the access point’s radios. See Table 2.
Color/State Meaning
Off AP powered off
Green- solid Device is ready; no network restrictions
Green- blinking
1
Device is booting; not ready
Green- flashing
2
Device is ready; uplink is negotiating are at sub-optimal speed (<1Gbps)
Amber- solid Device is ready; operating in Power Save mode due to one of the following:
z powered by an 802.3af POE source
z Intelligent Power Monitoring (IPM) mode restrictions
No network restrictions
Amber- flashing Device is ready; operating in Power Save mode due to one of the following
conditions:
z powered by an 802.3af POE source
z Intelligent Power Monitoring (IPM) mode
Uplink is negotiating at suboptimal speed (<1Gbps)
Red/solid Error condition
