4 Aruba 530 Series Campus Access Points | Installation Guide
The antenna ports, labeled A0 through A3 (corresponding with radio chains 0, 1, 2, and 3), are used
for both radios and bands (RF signals are diplexed).

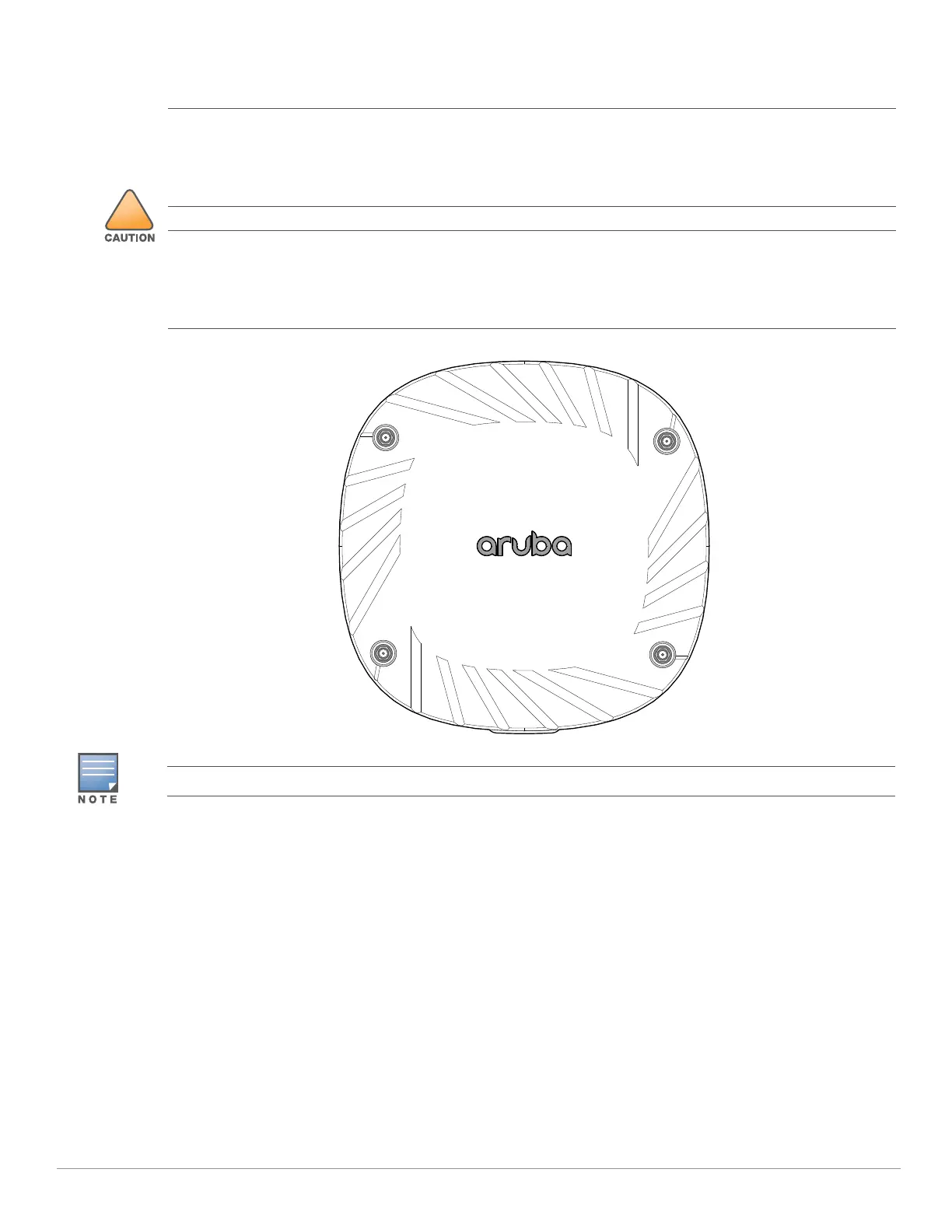

Figure 4 External Antenna Connectors
Bluetooth Low Energy Radios
530 Series access points are equipped with an integrated BLE and Zigbee radio that provide the following
capabilities:
location and asset-tracking applications
wireless console access
IoT gateway applications
Console Port
The 5-pin Micro-B connector is located on the back of this device. Use the proprietary AP-CBL-SERU cable for
direct management of this device when connected to a laptop or serial console (a standard USB cable cannot be
used for this interface). For pin-out details, refer to Figure 5.
External antennas for this device must be installed by an Aruba Certified Mobility Professional (ACMP) or other
Aruba-certified technician, using manufacturer-approved antennas only.
The Equivalent Isotropically Radiated Power (EIRP) levels for all external antenna devices must not exceed the
regulatory limit set by the host country/domain.
Installers are required to record the antenna gain for this device in the system management software.
Les antennes externes pour cet appareil doivent être installées par un professionnel de la mobilité certifié Aruba
(ACMP) ou un autre technicien certifié Aruba, en utilisant uniquement des antennes approuvées par le fabricant.
Les niveaux équivalents de puissance à rayonnement isotrope (EIRP) pour tous les périphériques d'antenne
externe ne doivent pas dépasser la limite réglementaire définie par le pays hôte / domaine.
Les installateurs doivent enregistrer le gain d'antenne pour cet appareil dans le logiciel de gestion du système.
This device is intended for indoor use in professional healthcare facilities.
