Aruba AP-655 - Access Point Connectivity; Bluetooth and Console Ports; Ethernet Ports

Color/State Meaning
Off Device powered off, or radio disabled
Green- solid Radio enabled in access (AP) mode
Green- flashing off Radio enabled in uplink or mesh mode
Amber- solid Radio enabled in monitor or spectrum analysis mode
Table 2: Radio Status LED
LED Display Settings
The LEDs have three operating modes that can be selected in the system management software:
n Default mode: refer to Table 1 and Table 2.
n Off mode: all LEDs are off
n Blink mode: all LEDs blink green (synchronized)
To force the LEDs into off mode or back to software defined mode, press the reset button for a short duration
(less than 10 seconds).
Bluetooth Low Energy Radios
650 Series access points are equipped with an integrated BLE and 802.15.4 radio that provide the following
capabilities:
n location and asset-tracking applications
n wireless console access
n IoT gateway applications
Console Port
The console port is a Micro-B connector is located on the back of this device. Use the proprietary AP-CBL-SERU
cable or AP-MOD-SERU module (sold separately) for direct management of this device when connected to a
serial terminal or laptop. For pin-out details, refer to Figure 4.

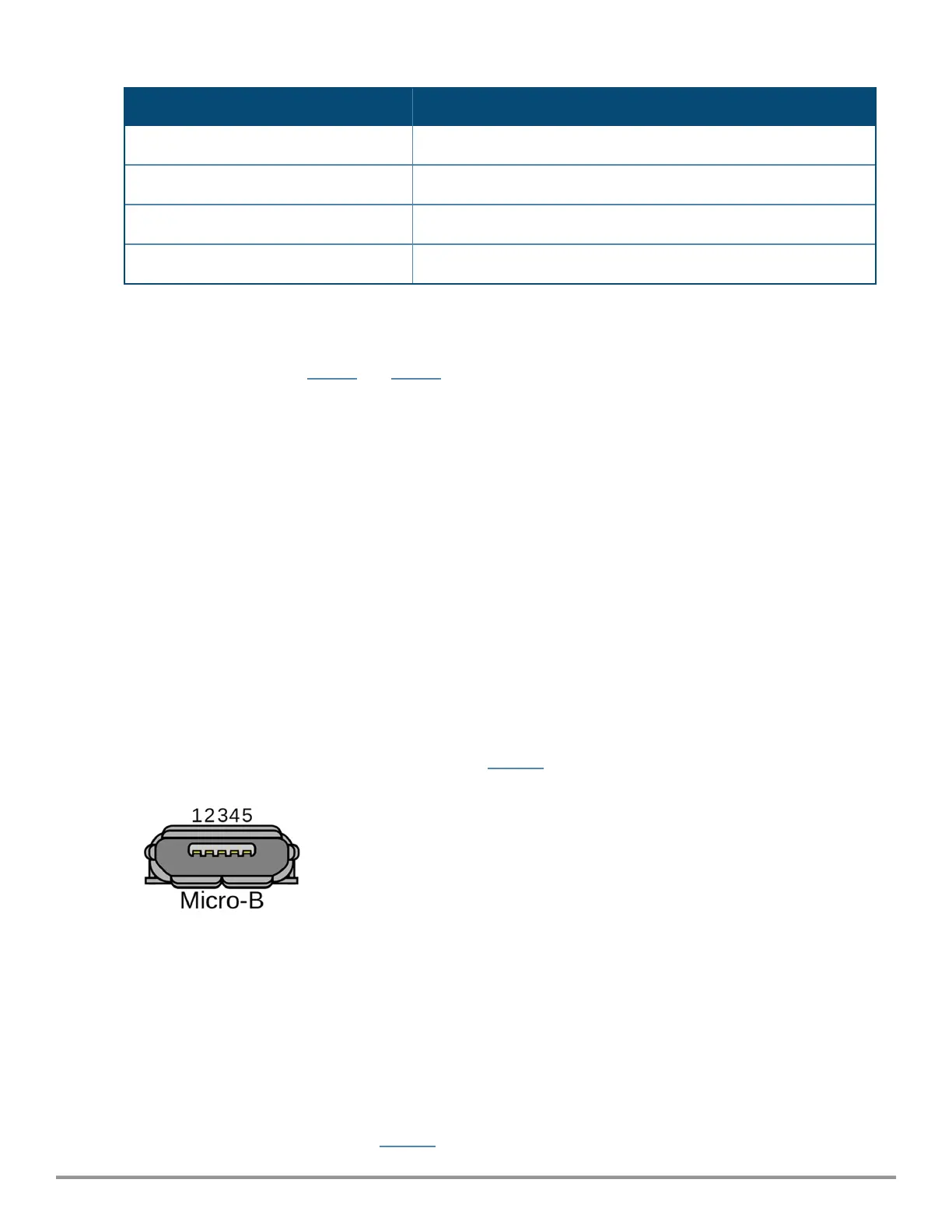

Figure 4 Micro-B Port Pin-out
1: NC
2: RXD
3: TXD
4: GND
5: GND
Ethernet Ports
The 650 Series Campusaccess points are equipped with two 100/1000/2500/5000 Base-T auto-sensing
MDI/MDX wired RJ45 Ethernet ports (E0 and E1). The 2.5bps speed complies with NBase-T and 802.3bz
specifications. Both ports are compliant with 802.3ab 1000Base-T Gigabit Ethernet and 802.3az (Energy
Efficient Ethernet) standards. Both ports support 802.3af, 802.3at and 802.3bt Power over Ethernet
compliance to accept power from a POE source, such as a PoE midspan injector, or a network switch.
The 650 Series access points are equipped with two active Ethernet ports (Eth0 and Eth1) (link to figure). Both
ports are 100/1000/2500/5000 Base-T, auto-sensing MDI/MDX, which supports uplink connectivity when
linked by an Ethernet cable. Refer to Figure 5 for a detailed port pin-out.
Rev 01 | October 2021 | 3
