LEDs
The AP15 access point has two LEDs that indicate the system and radio status of the device.

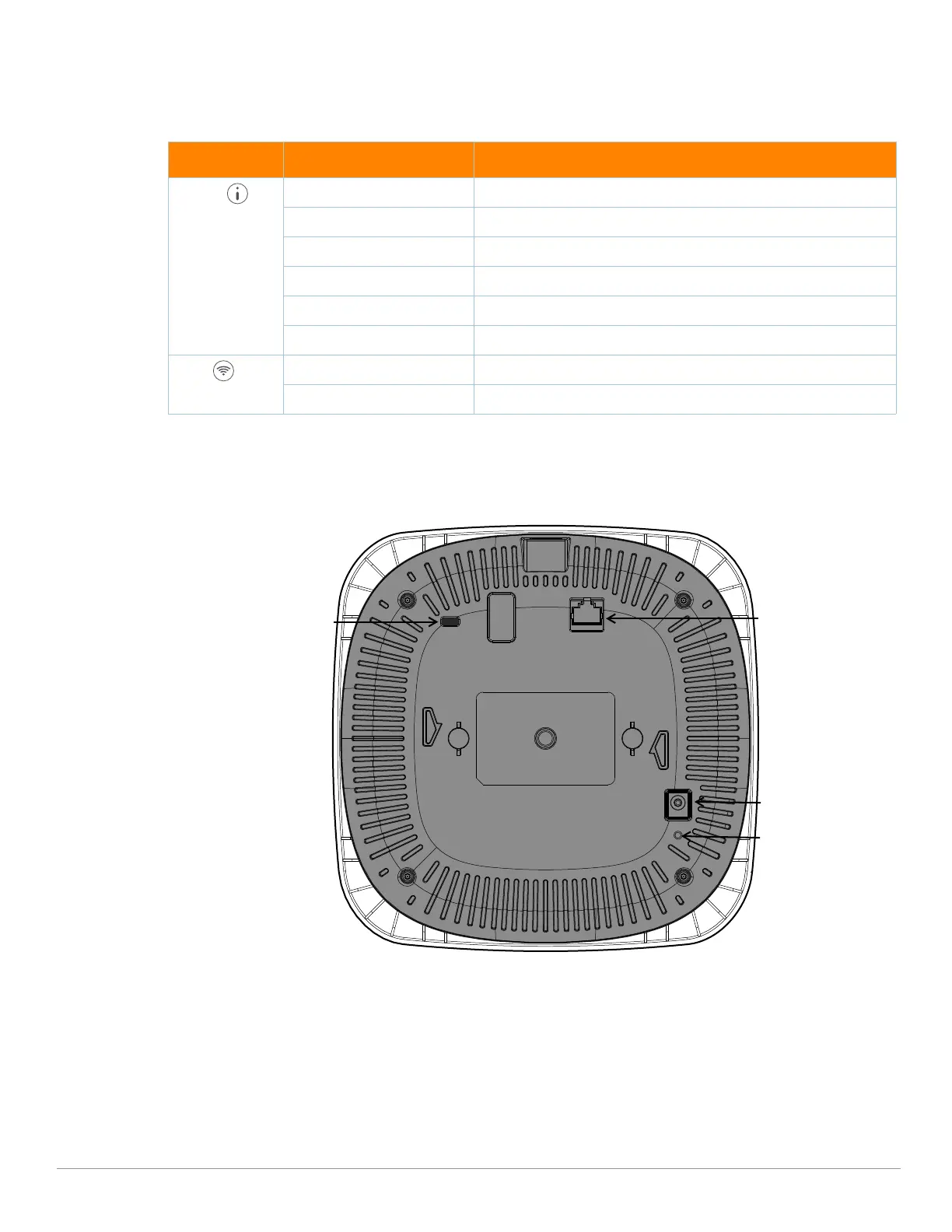

Figure 2 AP15 (rear view)
Kensington Lock Slot
The AP15 is equipped with a Kensington lock slot for additional security.
Ethernet Ports
The AP15 is equipped with a 10/100/1000Base-T auto-sensing MDI/MDX Ethernet port. This port supports wired-
network connectivity, in addition to Power over Ethernet (PoE) from IEEE 802.3af and 802.3at compliant power
sources. This device accepts 56V DC (802.3at), or 48V DC (802.3af) nominal as a standard powered device (PD)
Table 1 AP15 Access Point LEDs Status
LED Color/State Meaning
System No Lights Device has no power
Blinking Green Device is starting
Alternating Green/Amber Device is ready for setup
Solid Green Device is ready
Solid Amber Device has detected a problem
Solid Red Device has an issue- immediate action required
Radio No Lights Wi-Fi is not ready, wireless clients cannot connect
Solid Green Wi-Fi is ready, wireless clients can connect
Kensington Lock Slot
Ethernet Port
Reset Button
DC Power Socket
