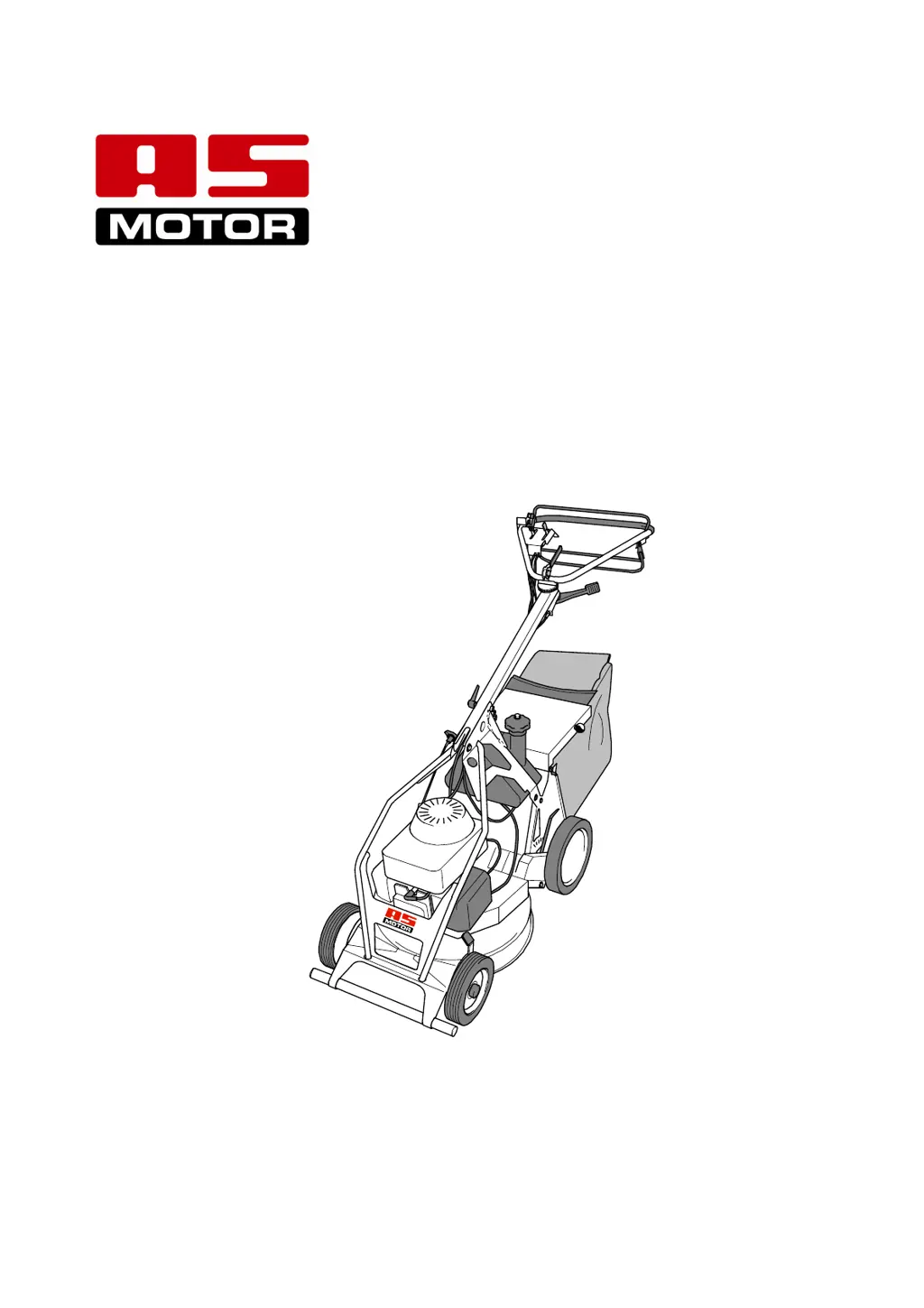

Operating Instructions
Lawnmower
A
S 530/4T MK
From serial number:
Issued:
019610020001
16 July 2010,V12.0
EN-Translation of the Original Operating Instructions

Table of Contents

Questions and Answers

  • C
    Chase HillAug 14, 2025
    Why does my AS MOTOR Lawn Mower engine start badly?
    • J
      Jean HullAug 15, 2025
      If your AS MOTOR Lawn Mower engine starts badly or runs irregularly, it might be due to several reasons. First, ensure the choke is open. A soiled air filter can also cause this issue, so clean it. Using fresh fuel is essential, as poor quality or old fuel can be problematic. Check the spark plug for soot, damage, or an incorrect electrode gap; clean or replace it if necessary. Lastly, a jammed mower housing can also lead to these issues; ensure it is clean.
  • J
    juansmithAug 18, 2025
    How to fix a sliding blade on AS MOTOR Lawn Mower?
    • V
      vasquezmarkAug 18, 2025
      To solve the issue of the blade sliding on your AS MOTOR Lawn Mower, replace the friction discs.
  • R
    rdavidsonAug 21, 2025
    Why does my AS MOTOR Lawn Mower leave an uneven cut?
    • B
      brentmerrittAug 21, 2025
      If your AS MOTOR Lawn Mower cuts unevenly and the lawn becomes unsightly, the blade might be dull or worn. It's recommended to have the blade balanced and re-sharpened by an authorised service centre, or replace it if damaged. The speed may also be too high for the cutting height; reduce the speed and select the correct cutting height. A heavily soiled mower housing can also cause this, so ensure it is clean.
  • W
    watersjamieAug 25, 2025
    What to do if my AS MOTOR Lawn Mower engine gets hot?
    • K
      Kim MillerAug 25, 2025
      If your AS MOTOR Lawn Mower engine gets hot, the ventilation grid might be dirty. Clean the ventilation grid. Also, check the oil level in the engine and refill if it is too low, following the engine manufacturer's instructions. Additionally, the cooling fins of the engine might be dirty, and you should have them cleaned by an authorised service centre.
  • P
    Phyllis JacksonAug 27, 2025
    Why does my AS MOTOR Lawn Mower vibrate so much?
    • K
      Kelly KellyAug 27, 2025
      If you experience strong vibrations during operation of your AS MOTOR Lawn Mower, it could be due to an unbalance in the blade caused by incorrect sharpening or chips. Have the blade balanced and re-sharpened by an authorised service centre, or replace a damaged blade immediately. Other potential causes include a bent blade drive shaft (due to collisions with foreign objects), loose engine fastening, or loose blade fastening. These issues should be addressed by an authorised service centre.
  • A
    Angela BrowningAug 31, 2025
    What to do if the discharge channel of my AS MOTOR Lawn Mower is jammed?
    • M
      morganknightAug 31, 2025
      If the discharge channel of your AS MOTOR Lawn Mower is jammed, it may be because the mowed grass was too long or too damp. Adjust the cutting height and mowing speed to suit the mowing conditions. Also, a worn blade or low engine speed could be the cause, which require attention from an authorised service centre.
  • R
    Ralph KingSep 3, 2025
    What to do if my AS MOTOR Lawn Mower engine doesn't switch off?
    • T
      Tina SullivanSep 4, 2025
      If your AS MOTOR Lawn Mower does not switch off, the switching off system is likely defective. Close the fuel valve and seek assistance from an authorised service centre.
  • T
    Theresa PhillipsSep 6, 2025
    Why is my AS MOTOR Lawn Mower making irregular noises?
    • T
      Thomas PrinceSep 6, 2025
      If you hear irregular noises from your AS MOTOR Lawn Mower, it may be due to loose fastening elements or a defective silencer. Both of these issues require attention from an authorised service centre.
  • S
    Steve AlvaradoSep 10, 2025
    Why is there no drive on my AS MOTOR Lawn Mower?
    • W
      william02Sep 10, 2025
      If there is no drive when the drive bar is actuated on your AS MOTOR Lawn Mower, the vario cable may not be sufficiently tensioned. Re-tension it. If the drive belt is insufficiently tensioned, you should contact an authorised service centre.

Summary

General Safety Instructions

General Safety Precautions

Covers reading instructions, user restrictions, and safe fuel handling.

Emergency and Pre-Use Checks

Includes first aid, fire measures, and pre-operation device checks.

Operational Safety

Operating Precautions

Guidelines for safe operation, starting, stopping, and handling hot components.

Mowing Safety and Preparation

PPE, preparing the area, and awareness of mowing hazards.

Specific Operation Safety

Slope and Fire Hazard Safety

Specific advice for mowing on slopes and in fire-risk areas.

Post-Mowing Procedures

Steps for safely shutting down and securing the device after use.

Maintenance and Repair Safety Guidelines

Lawnmower Device Overview

Control Panel and Levers

Assembly and Setup

Scope of Delivery

List of items included in the product packaging.

Unpacking and Setup

Step-by-step guide for unpacking, assembling components, and preparing the device.

Operating the Lawnmower

Mowing Preparation and Fueling

Essential steps before mowing, including fuel, oil checks, and cutting height adjustment.

Starting the Lawnmower

Detailed instructions for safely starting the lawnmower engine.

Driving and Maneuvering

How to engage the blade, drive the mower, and perform turns safely.

Grass Collection Bag Management

Procedures for safely removing and emptying the grass collection bag.

Shutting Down and Parking

Maintenance and Cleaning Procedures

Maintenance Preparations

Steps to take before performing any maintenance or cleaning tasks.

Device Cleaning

How to clean the lawnmower and its collection bag thoroughly.

General Inspection and Checks

Regular checks of fasteners, connections, and ignition system for safety.

Engine Maintenance

Procedures for maintaining the engine, including oil, spark plug, and air filter.

Drive and Blade Servicing

Adjusting the drive system and servicing/replacing the cutting blade.

Storage, Spare Parts, and Wear

Device Storage Guidelines

Instructions for storing the device safely for short or extended periods.

Restarting After Storage

Steps to prepare the device for use after a period of storage.

Spare and Wear Parts Information

Information on using genuine spare parts and identifying wear components.

Optional Accessories

Disposal and Recycling

Product Warranty Information

Troubleshooting Common Issues

Technical Specifications

Declaration of Conformity
