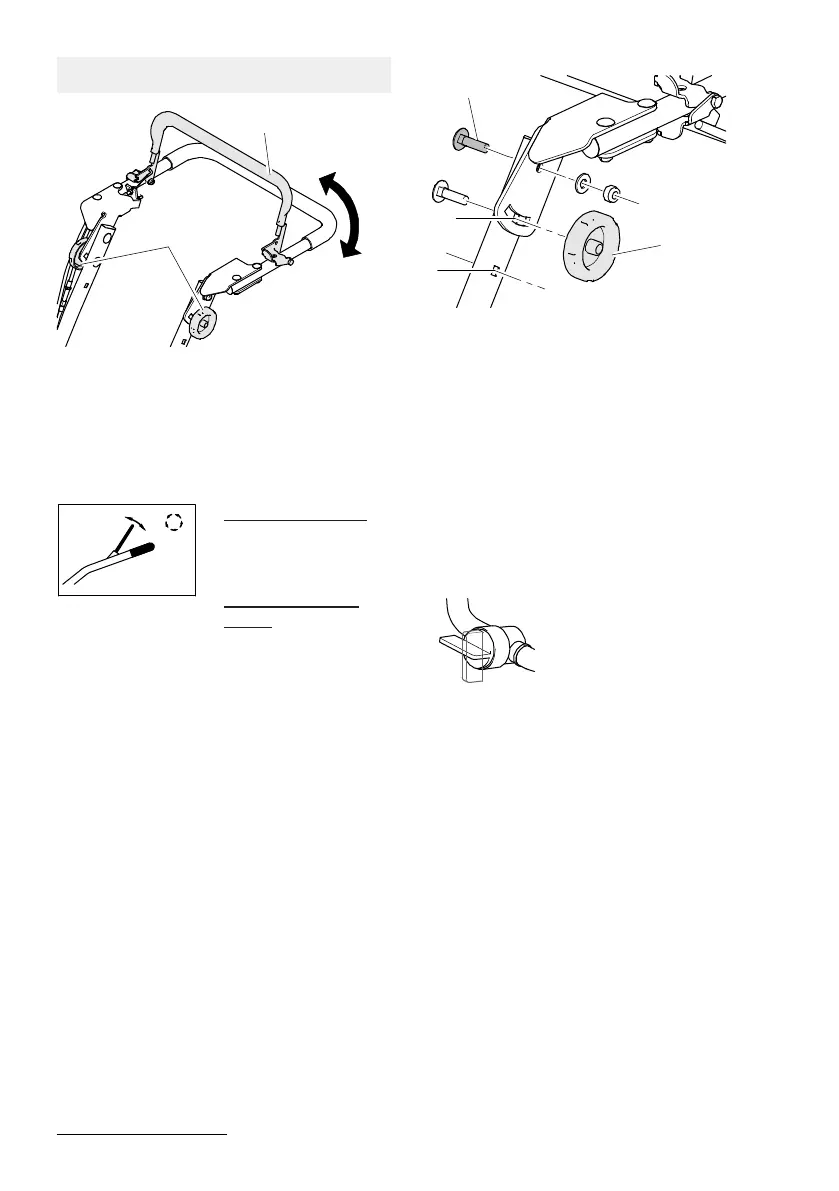

Control elements
2
1
Engine brake lever (1)
The engine brake lever is a guard device.
When you release the lever, the engine is
shut off immediately, the knife comes to a
standstill within3seconds.
0
I
M
I: Operating position
Press the engine
brake bar towards the
handlebar.
0: Switching off the
engine
Release the engine
brake lever.
Height adjustment of handlebar
1. Release both knobs(2) at the handlebar.
2. Swivel the handlebar to the desired posi-
tion and tighten both knobs again.
Mounting handlebar one position lower
1
2
B
A
Fig.5:
1. Unscrew the knob(2) from the left and right
guide bar.
2. Unscrew the screw(1) from the left and
right guide bar.
3. Screw the screws(1) back down on posi-
tion lower(A).
4. Screw the knobs(2) back in (do not
tighten) one position lower(B).
5. Swivel the handlebar to the desired posi-
tion and screw the knobs back down.
Fuel valve
2
1
1: Closed
2: Open
