8 package
The AHT10 is available in an SMD package
(similar to QFN), and the SMD is a two-sided,
leadless flat package. The sensor chip is made
of Ni/
Made of Au 's copper lead frame. The sensor
weighs about 63mg.
8.1 tracking information
All AHT10 sensor surfaces are laser marked.
See picture 18
Figure 18 sensor laser identification.
Labels are also placed on the reels, as shown in
Figure 19 , and other tracking information is provided.。
8.2 Transport Packaging
The AHT10 is packaged in tape and reel and sealed in
an antistatic ESD bag. The standard package size
is 4000 pieces per roll. For the AHT10 package,
the 440mm (55 sensor capacity) and front 200mm
(25 sensor capacity) portions of each reel are empty.
The package diagram with sensor positioning is
shown in Figure 20. The reel is placed in an anti-static
pocket.

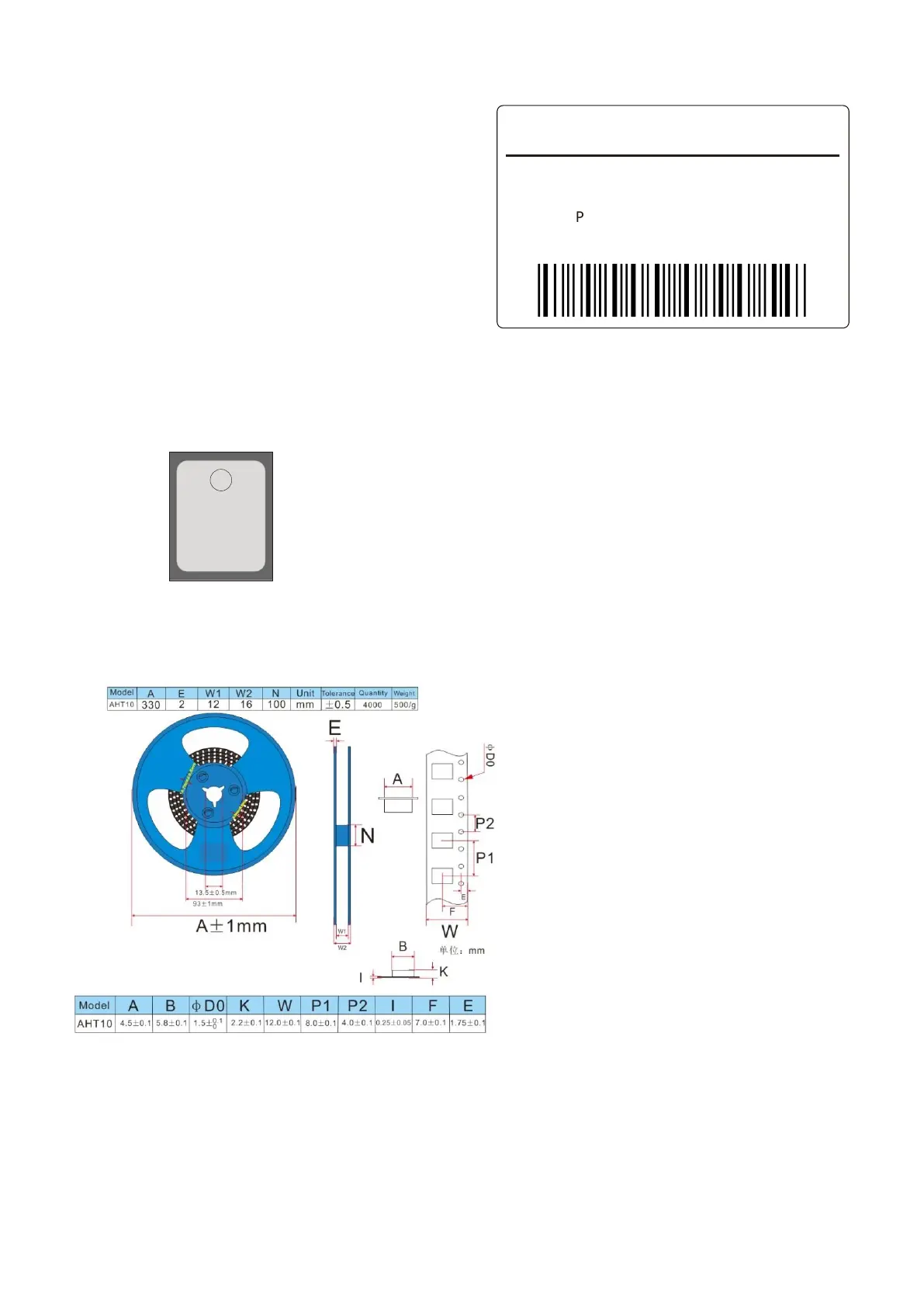

Figure 20 packaging tape and sensor positioning map
