6.5 PROCEDURE TO INSTALL THE AIR CHANNELS AND DRAFT TOWERS (ONLY “DD”
MODELS)
Models: MDD -23, MDD-58, MDD-68, MDD-78 & MDD-94
This procedure describes how to install the air channel needed to provide cold air directly
into the beer towers.
Tools needed: Philips Screwdriver.

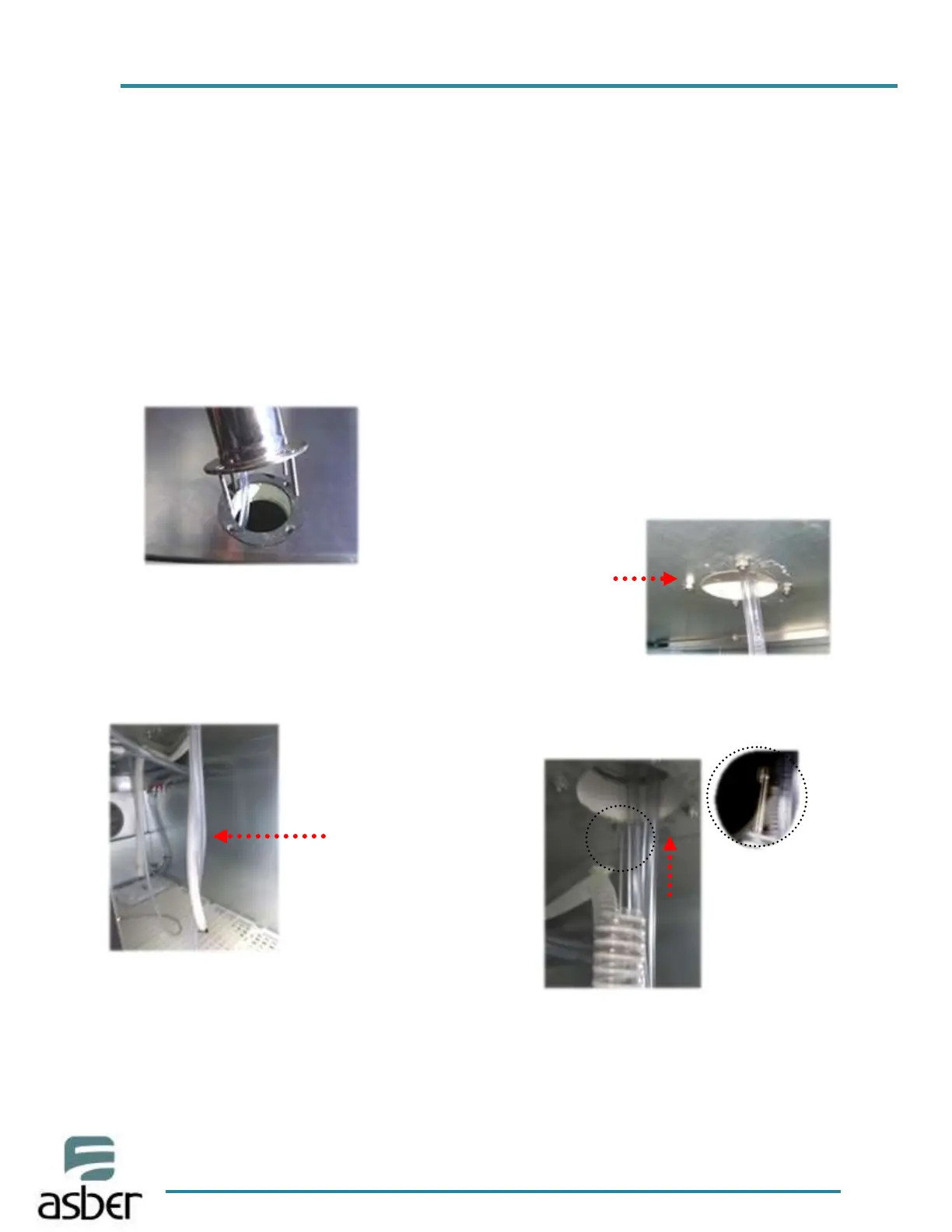

Step 1
Locate the gaskets and bolts included in with your Tower. Place gasket over the pre-drilled
holes and place the 4 screws thru the tower base. Align the tower with screws and gasket to
the cabinet top as shown below while dropping the beer line(s) thru the top of the unit. (Fig.
1)
Gasket, Tower and Beer line(s)
FIG. 1
Step 2
Tighten the screws using the nuts found in your tower box (Fig. 2).
Step 3
Identify the “WHITE HOSE” (Fig. 3) which is found inside of the equipment.
FIG.3
Step 4 FIG.4
Introduce the “WHITE HOSE” (Fig. 4) which is found inside of the equipment into the
tower’s HOLE.
Be sure that the hose’s hook is correctly attached into the tower hole.
