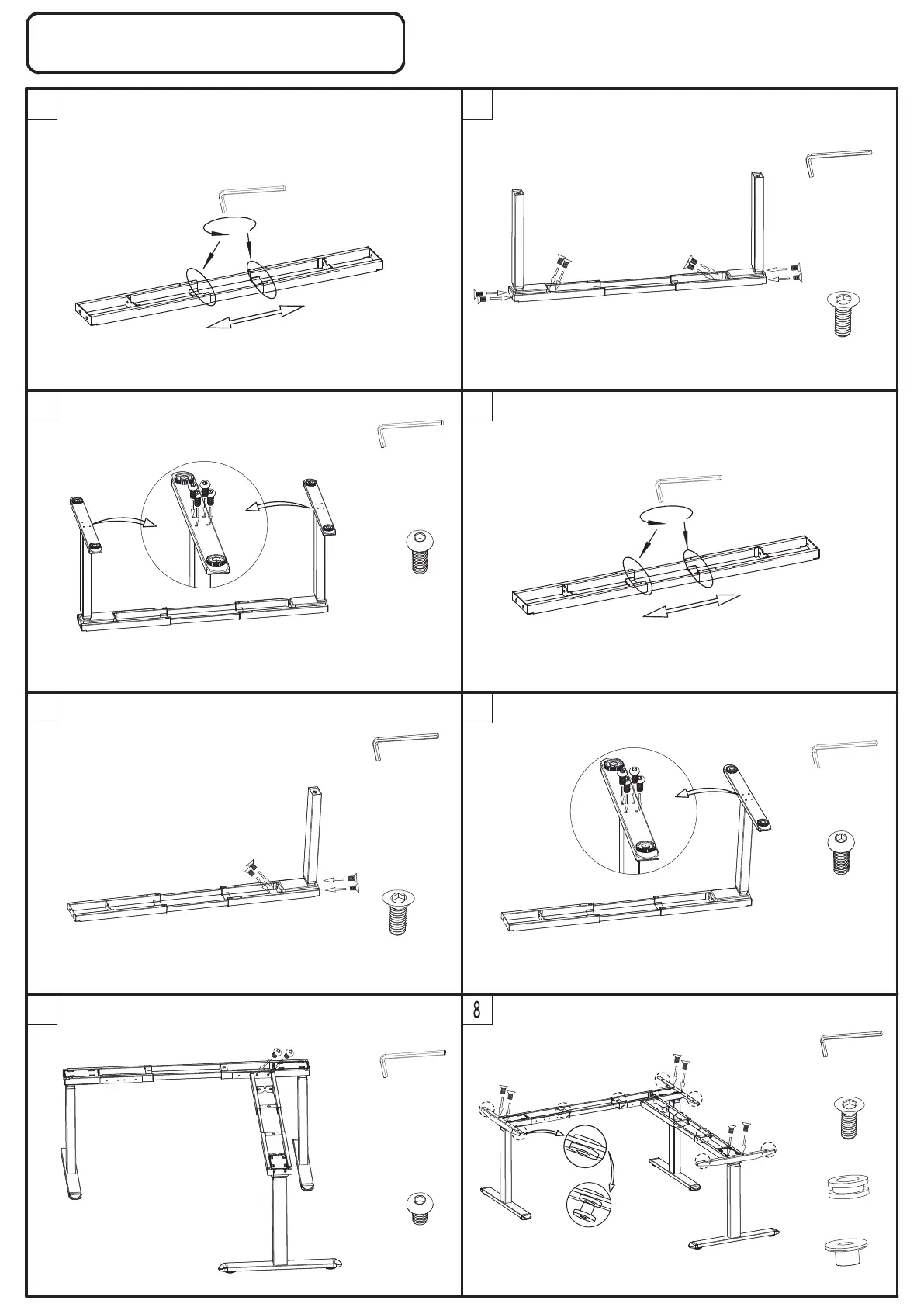

Loosen the M6*10 screws on the main beam with 4mm hex spanner, then adjust the
length of the beam according to the desktop, and finally secure the beam using 4 of
M6*10 screws from the screw pack along with the screws on the beam.
Attach the feet to the electric legs using 8 of M6*40 screws.
Attach the electric leg to the sub-beam using 4 of M6*12 screws.
Attach the sub-beam to the main beam using 2 of M6*8 screws.
Loosen the M6*10 screws on the sub-beam with 4mm hex spanner, then adjust the
length of the beam according to the desktop, and finally secure the beam using 4 of
M6*10 screws from the screw pack along with the screws on the sub-beam.
Attach the feet to the electric leg using 4 of M6*40 screws.
Attach the brackets to beams using 6 of M6*12 screws, and then fit the rubber
cushions and plastic plugs to the beams and brackets.
Attach the electric legs to the beam using 8 of M6*12 screws.
Assembly Instructions
4mm Hex Spanner
4mm Hex Spanner
4mm Hex Spanner
4mm Hex Spanner
4mm Hex Spanner
M6*12 Screw 6pcs
Rubber Cushion 10pcs
Plastic Plug 10pcs
M6*8 Screw 2pcs
M6*12 Screw 4pcs
5mm Hex Spanner
5mm Hex Spanner
M6*40 Screw 8pcs
M6*40 Screw 4pcs
M6*12 Screw 8pcs
4mm Hex Spanner
To Next Page
