5101 Engine Start Monitoring System
381333-474 C 11

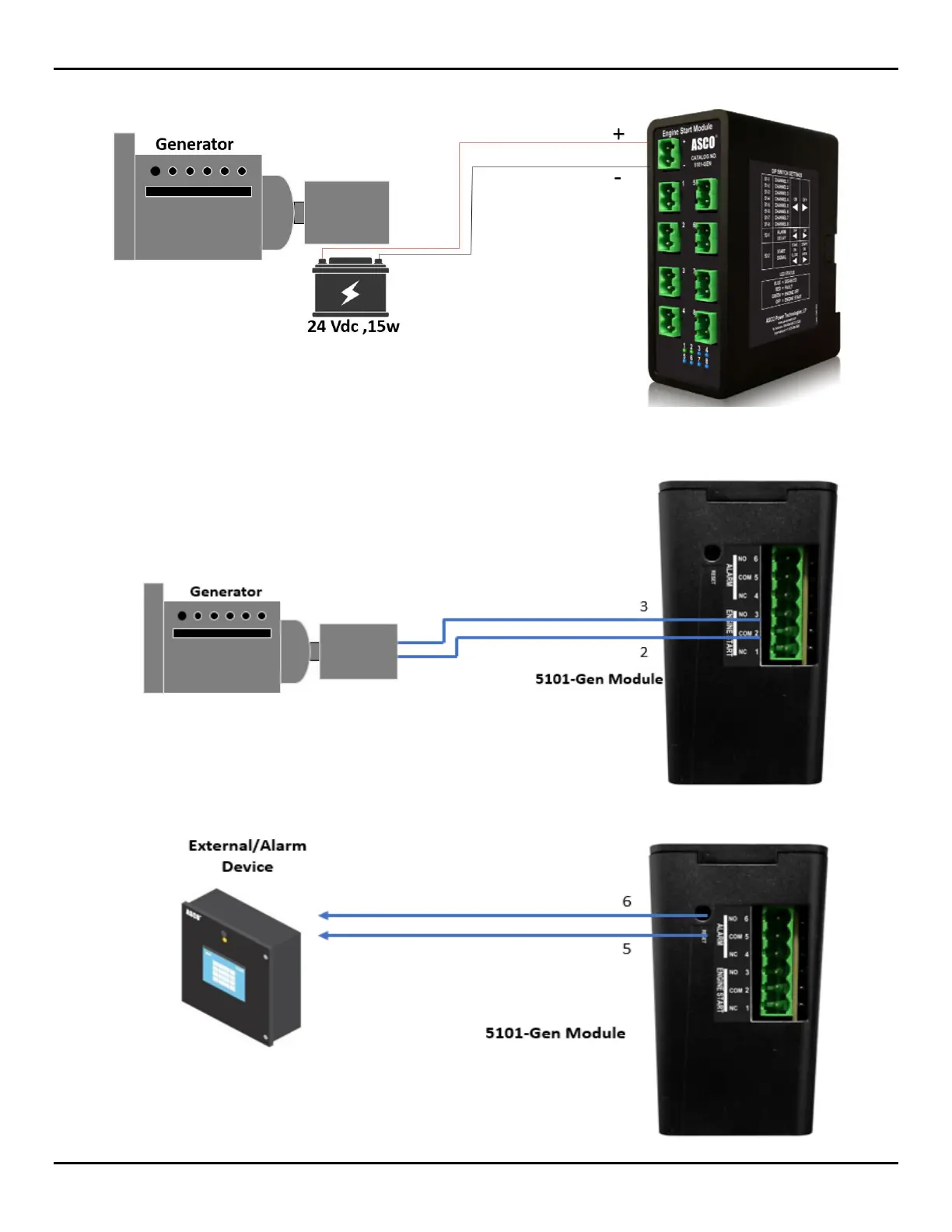

5. Wire 5101-GEN to 24Vdc power
6. Wire desired engine start signal to Generator. NO side of contact will open to signal generator start and NC side of
contact will close to signal generator start.
7. Wire Alarm signal output to other module/system.
