5101 Engine Start Monitoring System
12 381333-474 C
Settings

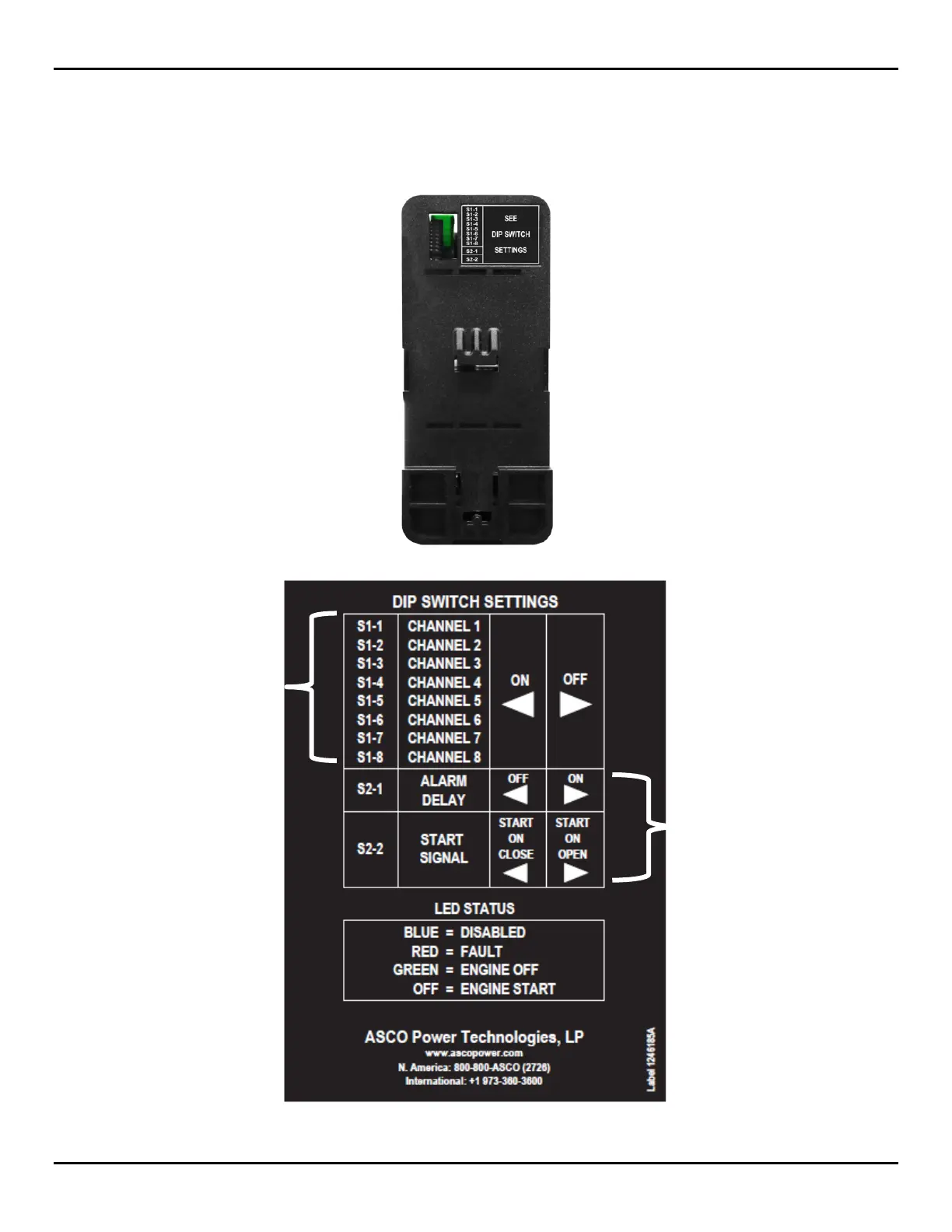

5101- Gen Module: DIP Switches
The module contains DIP switches in the back which allow the customer to configure the system.
The switches S1-1:8
correspond to channels 1-8
respectively. Toggling left
will enable the channel
while toggling right will
disable it
The S2-1 switch
corresponds to the alarm
delay. Toggling left will
turn it off
(instantaneous, no delay)
and toggling right will
turn it on (3 sec delay).
The S2-2 switch is the
reference for the start
signals wired into the
5101-ATS modules. This
should be set according to
the source engine start
signals, “Start on Close”
if the source signal closes
to start the gen and “Start
on Open” if the source
signal is starts the
generator when it opens.
All the 5101-ATS
modules must follow the
same convention.
