ASCOM NICL4 - Page 11

INSTALLATION GUIDE
Corridor Lamp 4 Connections and DIP Switch Settings

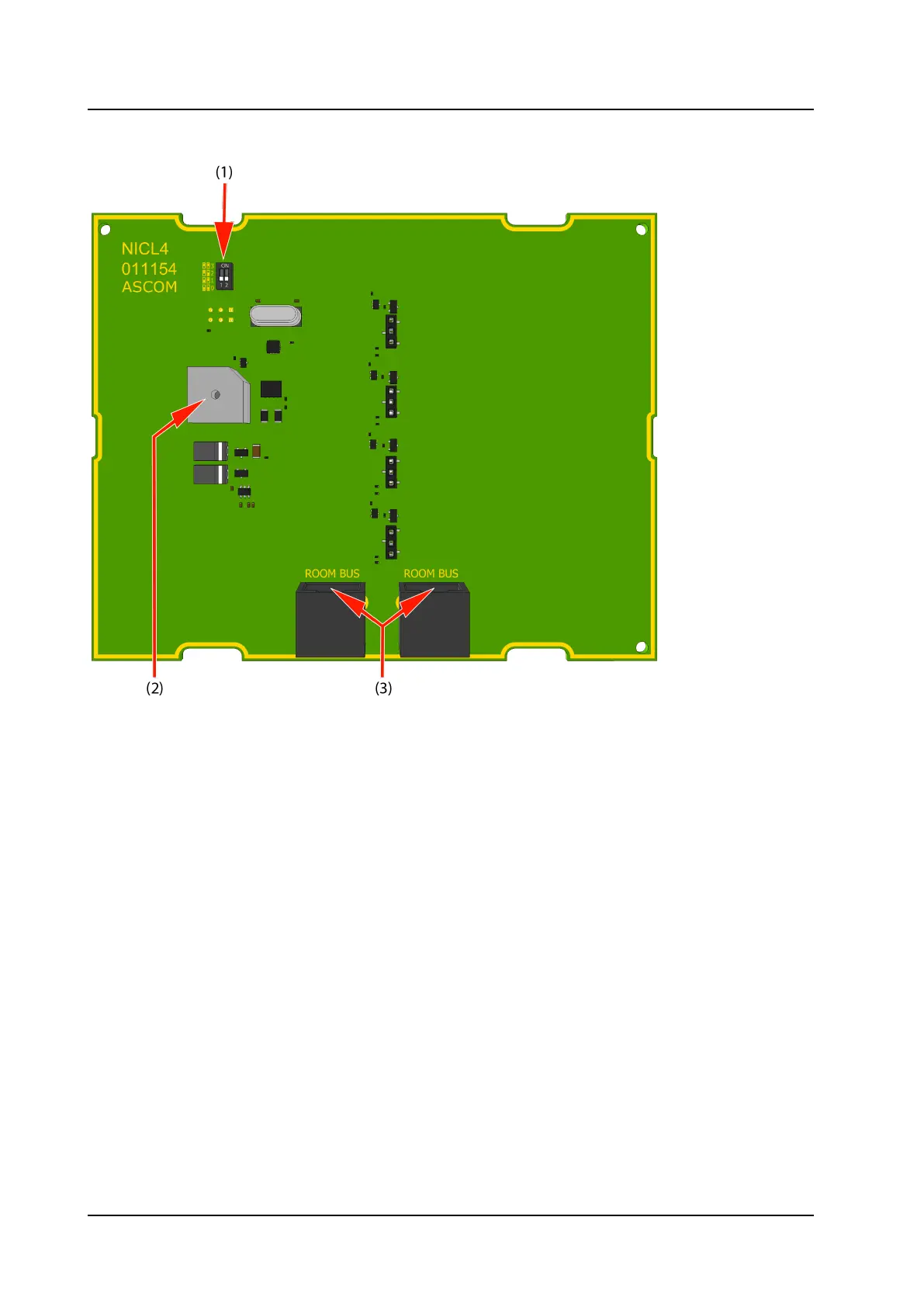

Figure 3. NICL4 Circuit Board - Back
Legend
(1) DIP switches for Corridor Lamp ID selection
(2) Buzzer
(3) RJ45 room bus connectors for connection to NIRC4 room controller and NU-series PDs via daisy
chaining
