INSTALLATION GUIDE
Corridor Lamp 4 Mounting
2. Using a cutter or pliers, carefully remove the excess plastic from the knockouts.
To mount the NICL4 base on a wall
1. Place the base against a flat wall and orient it so that arrow is pointing up and that the base is level.
(See Figure 1. NICL4 Base Orientation and Cutouts, page 6, item 1.) Use a leveling device to check, if
necessary.
2. Make sure that the knockouts are pointing down and to the right. (See Figure 1. NICL4 Base Orientation
and Cutouts, page 6, items 3.)

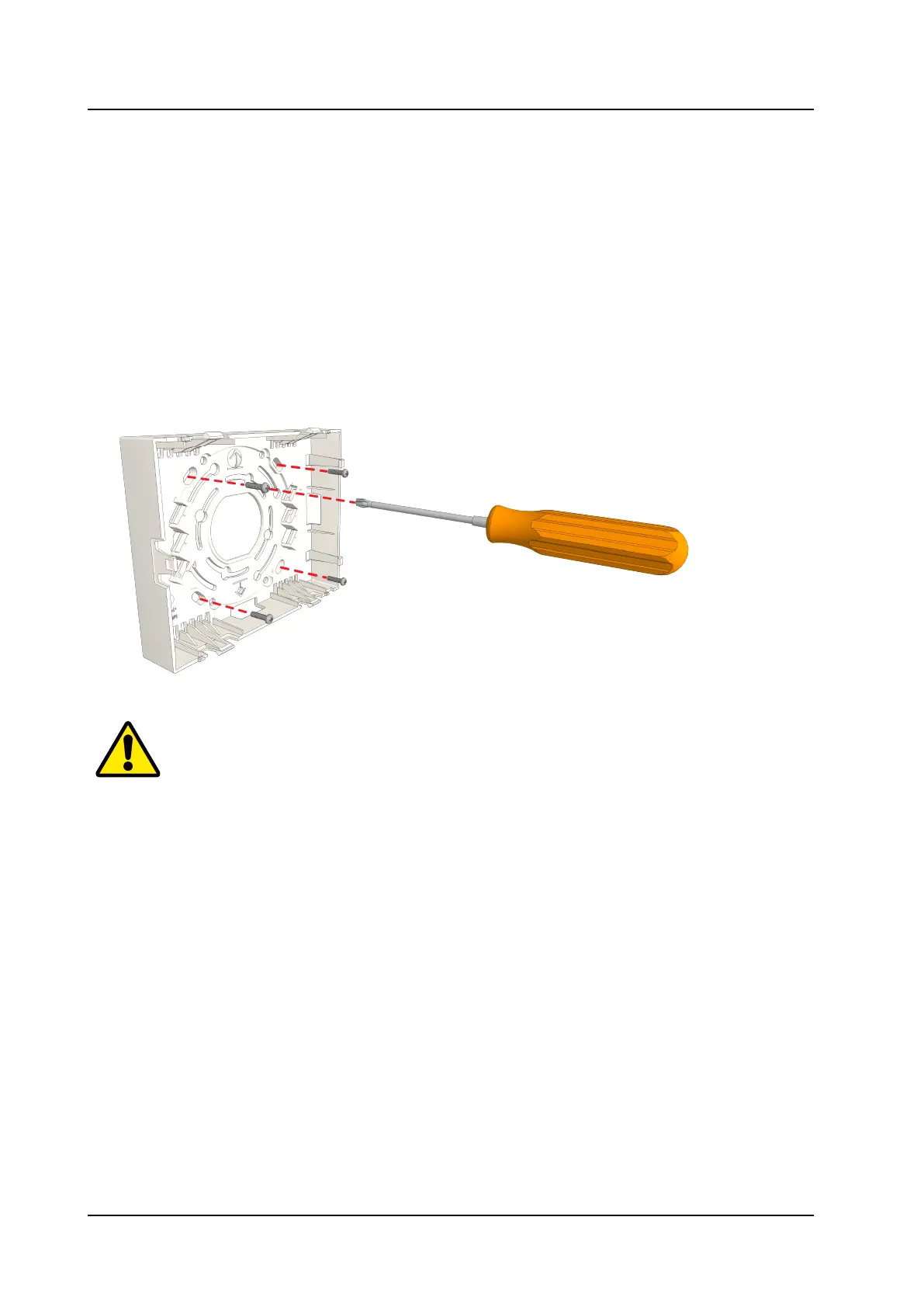

3. Using the base as a template, mark four holes for the screws using the slotted fitting holes located in
the base.
4. Remove the base spacer and drill holes for the screws that will be used, such as wood, concrete, or
drywall screws, or screws with anchors.
5. Place the base (with the knockouts removed) over the holes, insert the screws, and then tighten.
6. Pull the cables through the knockout holes and follow the directions in the following sections.
Caution: The NICL4 must be mounted in a way that the module is firmly attached to the
background.
TD 93352EN / 25 January 2021 / Ver. A
