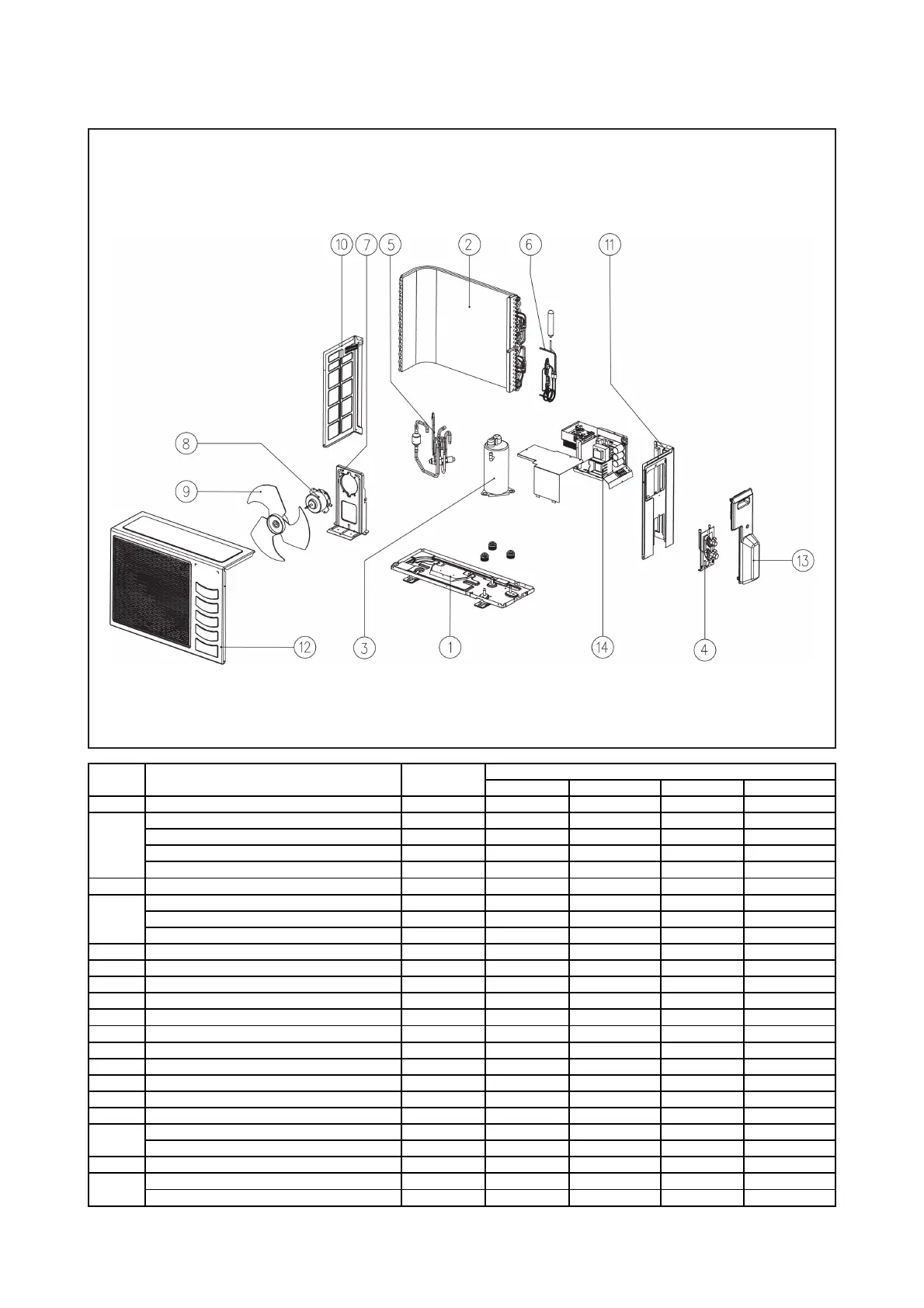

MODEL : A5LCX 10 / 15 C/CR
A5LCX 10C A5LCX 10CR A5LCX 15C A5LCX 15CR
1 ASSY,PAN BASE SL10/15C R50014057190 √√√√
ASSY, OUTDOOR COIL (5SLX 10C) R50024084150 √
ASSY, OUTER COIL (5SLX 10CR) R50024083115 √
ASSY, OUTDOOR COIL (5SLX 15C) R50024084151 √
ASSY, OUTER COIL (5SLX 15CR) R50024082805 √
3 COMPRESSOR, 5RS102XBH01 Matsushita R04019025689 √√√√
VALVE BRACKET R01014051164 √√√√
VALVE, FLARE 3 WAY BRASS 3/8" (R-410A) R05019025684 √√
VALVE, FLARE 3 WAY BRASS 1/2" (R-410A) R05019025683 √√
5 VALVE, REV 4 WAY SHF-4H-230(RK) SHANHUA R05019016936 √√
6 ASSY, CAP TUBE (5SLX 10C) R50024084137 √
ASSY, CAP TUBE (5SLX10CR NEW) R50024078331 √
ASSY, CAP TUBE (5SLX15C) R50024084138 √
ASSY, CAP TUBE (5SLX15CR NEW) R50024078332 √
7 BRACKET,FAN MOTOR R01014051162 √√√√
8 MOTOR, M5SLX10C-501-BOM R03039016892 √√
MOTOR, M5SLX15C-501-BOM R03039016893 √√
9 FAN PROPELLER, DIA401.0 OZ42000 SHUNDE R03019015339 √√√√
10 PANEL,LEFT R01014051166 √√√√
11 PANEL,RIGHT R01014051167 √√√√
PANEL,TOP/FRONT SL10/15C R01014051171 √√√√
ASSY,FRONT GRILLE (SL10C/15C)
R
50124056700 √√√√
13 ASSY,VALVE COVER R50124051173 √√√√
ASSY, CONTROL BOX (5SLX 10CR DC1P) R50044083160 √√
ASSY, CONTROL BOX (5SLX 15CR DC1P) R50044083161 √√
12
14
2
4
No Description Part Number
Related Model
